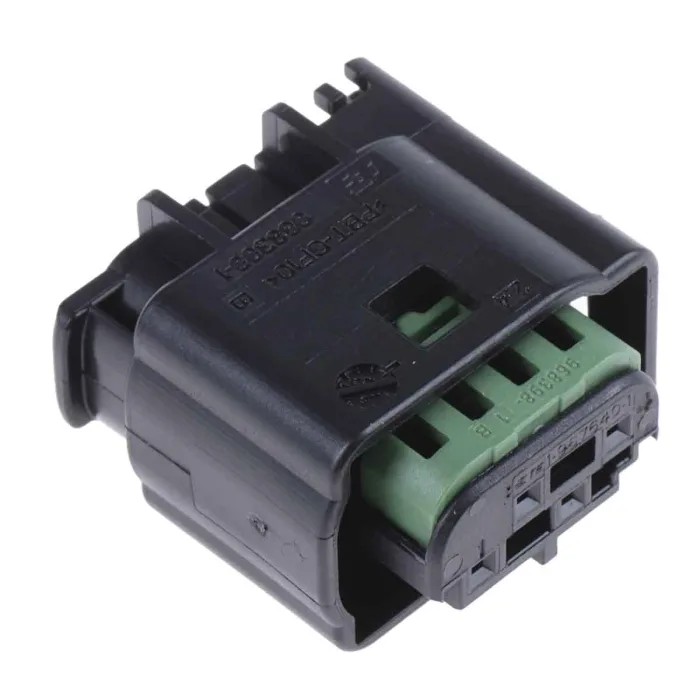

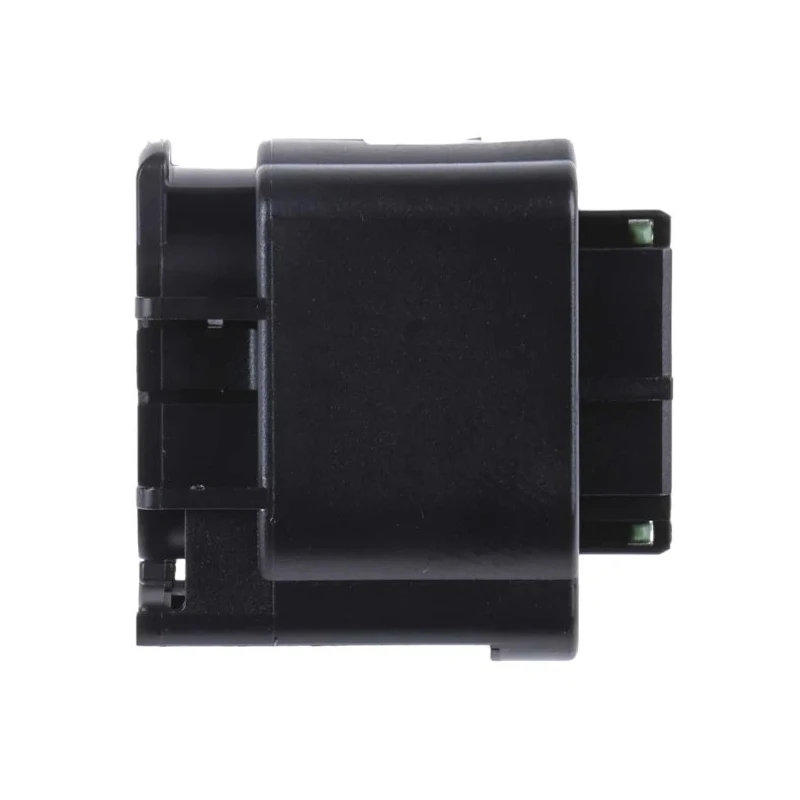

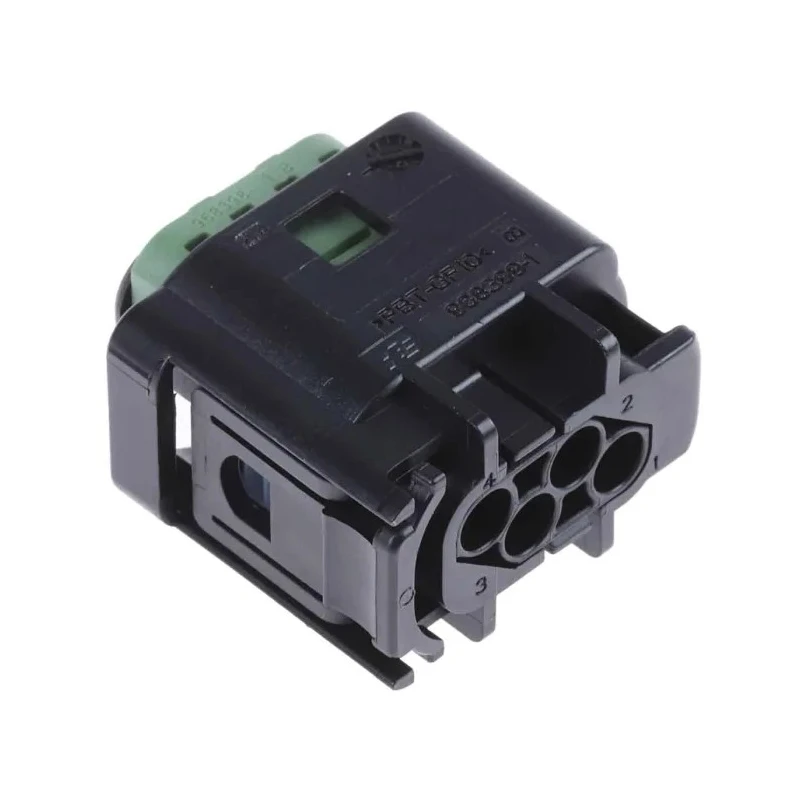

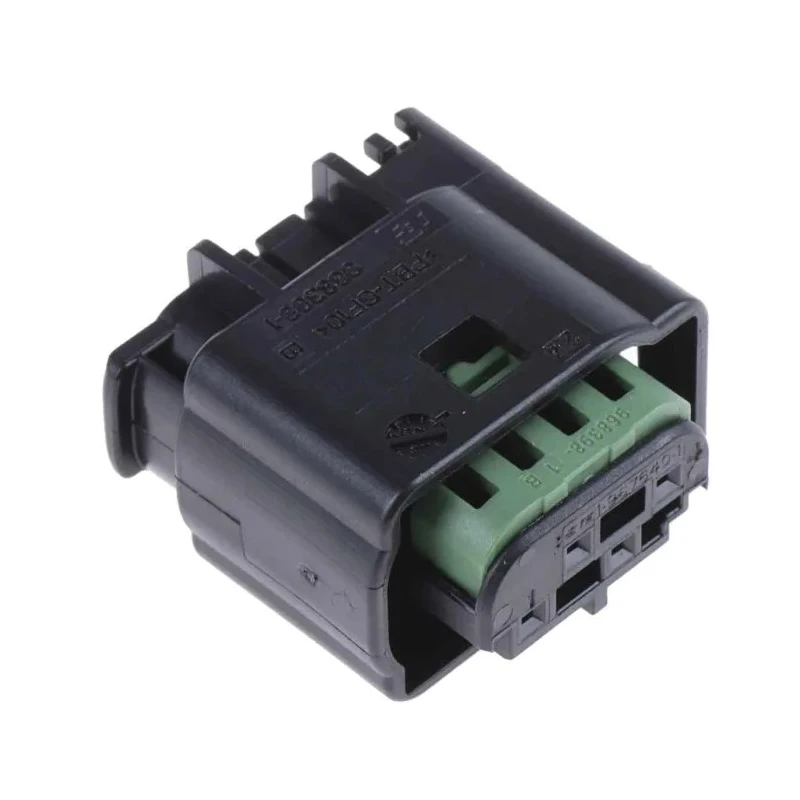

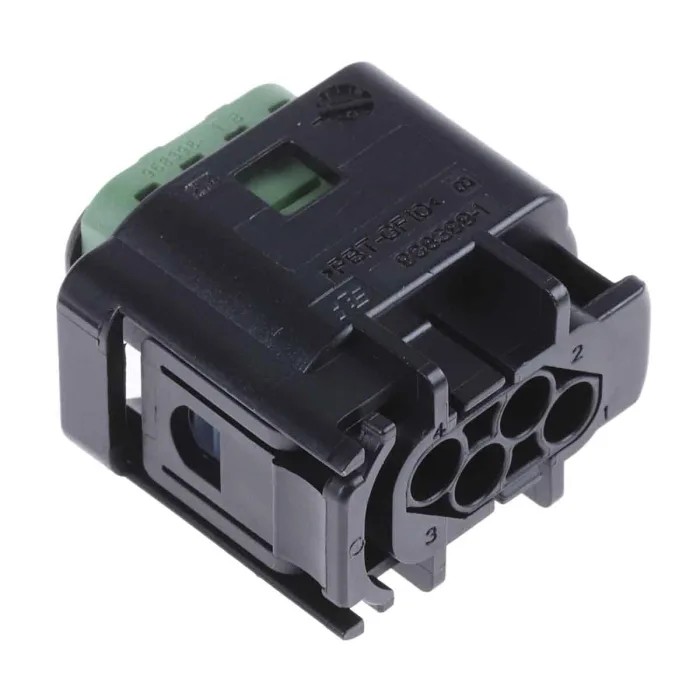

TE Connectivity Micro Quadlok System Automotive Connector Female Black Cable 4 Way Crimp Termination 1-967640-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 23.2mm |
| Depth | 24.2mm |
| IP Rating | IPx9K |
| Width | 15.3mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 120°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS |
| Number of Contacts | 4 |
| • Pitch | 2.54mm |
Key Features
- Features a Micro Quadlok System housing for compactness and reliability.
- Includes 4 contacts arranged in 2 rows for secure signal connections.
- Termination type is crimp provides strong mechanical and electrical contact.
- Black polybutylene terephthalate housing material ensures durability.
- IPx9K rating offers waterproof protection suitable for harsh environments.
- Operates in temperature range from -40°C to 120°C for automotive conditions.
- Designed with polarization and keying to prevent mismating of connectors.
- Stainless steel locking lances provide high primary terminal locking force.
Product Description
TE Connectivity 1-967640-1 is a Micro Quadlok System automotive connector featuring a female black cable housing with 4 way crimp termination. This connector supports high-density signal transmission with a compact and robust 2.54mm pitch MQS series housing specifically designed for demanding automotive applications.
The connector uses a durable polybutylene terephthalate housing with a reliable crimp termination method, delivering high mechanical strength and electrical integrity. Its black color and sealed IPx9K rating make it suitable for automotive environments requiring waterproof and dustproof performance.
Operating temperature ranges from -40°C to 120°C, allowing use in extreme thermal conditions typical of automotive powertrain, safety, security, and body systems. The Micro Quadlok connectors integrate stainless steel locking lances that secure the terminals firmly, preventing accidental disconnection, with polarization and keying features that inhibit mismating.
The connector dimensions are 23.2 mm (height) × 24.2 mm (depth) × 15.3 mm (width), providing a compact footprint for space-constrained electronic assemblies. This MQS 4-contact female connector is engineered for durability and performance, supporting robust electrical interconnections in vehicles.
Compact and robust MQS 2.54 mm pitch connector housing. Female cable termination with crimp contacts for secure connections. Black polybutylene terephthalate housing material for durability. IPx9K waterproof rating suitable for harsh automotive environments.
Wide operating temperature range from -40°C to 120°C. Polarization and keying to prevent incorrect mating. Stainless steel locking lances secure contacts firmly. Ideal for powertrain, safety, convenience, and body systems.
Compact dimensions: 23.2mm H × 24.2mm D × 15.3mm W.
This connector is widely used in automotive manufacturing, electronics assembly, and industrial applications where high reliability and protection against environmental factors are required. Compatible with additional accessories including covers and retainers to enhance installation flexibility.
Explore a wide range of Automotive Connectors and electrical components at EnvMart for all your industrial and automotive connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 120°C.
This automotive connector has an IPx9K rating, indicating it is waterproof and suitable for harsh environments.
The Micro Quadlok System connector features 4 contacts arranged in 2 rows.
The housing material of this model is polybutylene terephthalate.
The dimensions of this connector are 23.2 mm in height, 24.2 mm in depth, and 15.3 mm in width.
This connector uses a crimp termination type for secure mechanical and electrical connections.
This connector is designed with polarization and keying features to prevent mismating.
The minimum operating temperature for this connector is -40°C.
This connector is manufactured in India.
The pitch of the contacts in this connector is 2.54 mm.
This connector complies with RoHS standards.
This connector is suitable for automotive applications, including powertrain, safety, and body systems.
