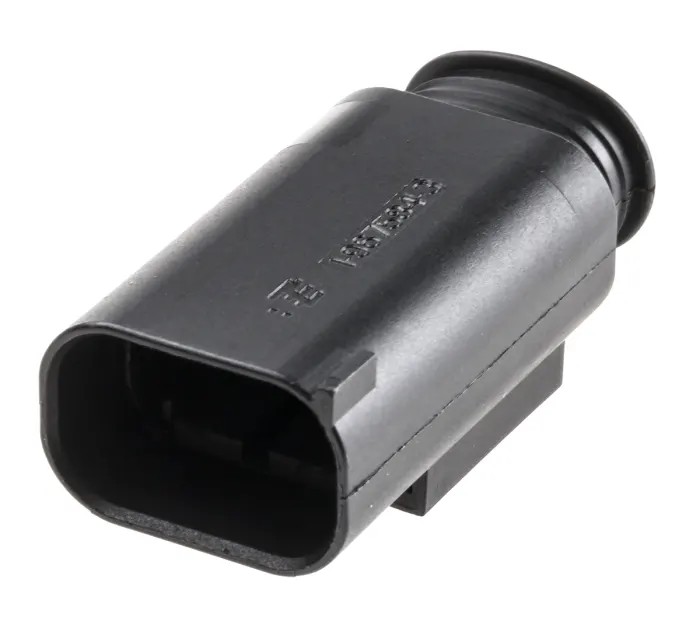

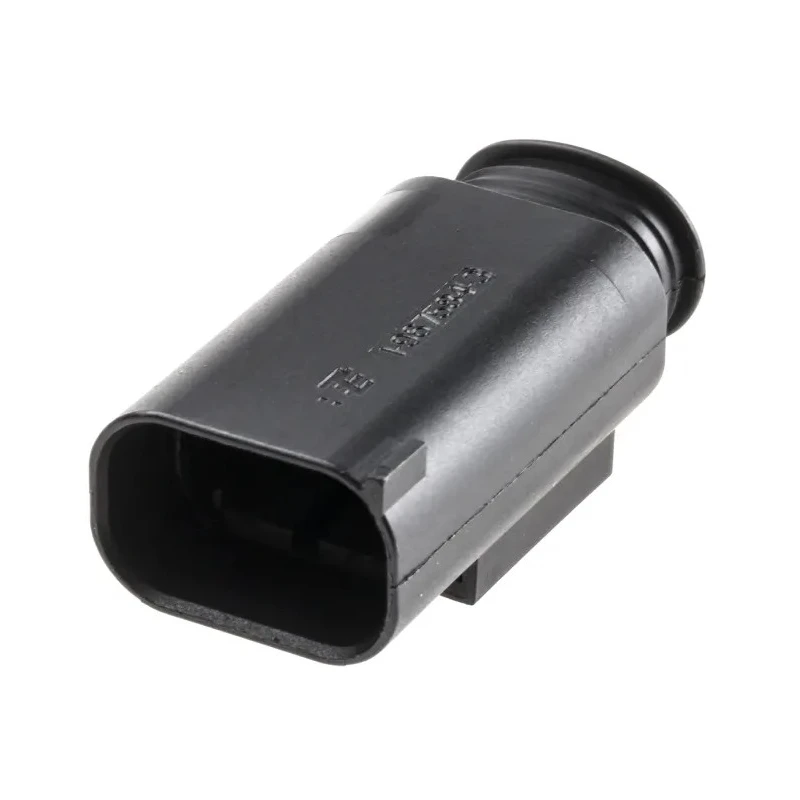

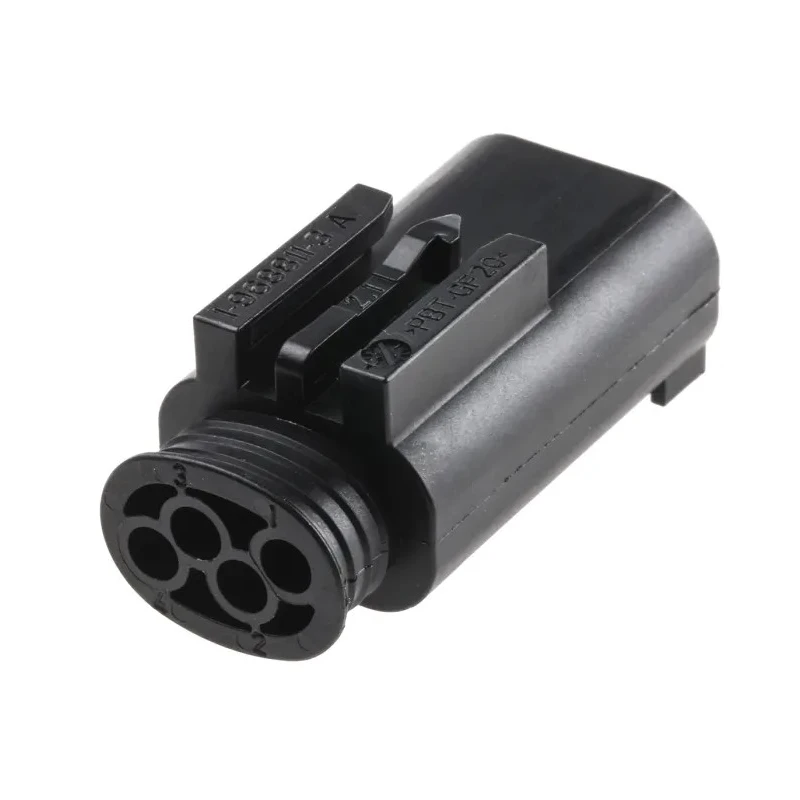

TE Connectivity Micro Quadlok System Automotive Connector Male Black Cable 4 Way Crimp Termination 1-967584-3
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 19.5mm |
| Depth | 40.1mm |
| IP Rating | IP69K |
| Width | 40.1mm |
| Gender | Male |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 120°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS, REACH, ELV |
| Number of Contacts | 4 |
| • Pitch | 2.54mm |
Key Features
- Features a 2.54mm pitch Micro Quadlok System for high density and compact design.
- Polarization and keying prevent mismating during installation.
- Provides waterproof sealing with IP69K rating for harsh environments.
- Constructed with polybutylene terephthalate housing for durability and high temperature resistance.
- Operates reliably between -40°C and 120°C temperature range.
- Includes integral primary terminal locking force for secure contact retention.
- Complies with RoHS, REACH, and ELV environmental standards.
Product Description
TE Connectivity 1-967584-3 Micro Quadlok System Automotive Connector is a male connector housing designed specifically for automotive use with a robust, compact, and high density 2.54mm pitch interface. It includes a 4 way crimp termination black cable housing constructed of durable polybutylene terephthalate material, capable of withstanding temperatures from -40°C up to 120°C.
This connector system provides reliable electrical connections designed to meet demanding automotive applications such as powertrain systems, safety, security, convenience, driver information, and body and chassis systems.
The Micro Quadlok System (MQS) incorporates polarization and keying features to prevent mismating. The stainless steel locking lances ensure a strong primary terminal locking force, securing contacts firmly within the housing.
The sealed versions of this housing offer waterproof protection with an IP69K rating, suitable for harsh environmental conditions. Additional wire seals can be purchased separately to enhance sealing capabilities.
High density and compact design with 2.54mm pitch for efficient space utilization. Polarization and keying prevent incorrect connector mating. Waterproof connection capability with IP69K protection rating. Integral locking lances provide strong terminal retention.
Constructed from polybutylene terephthalate for durability and thermal resistance. Compliant with RoHS, REACH, and ELV environmental directives. Operates reliably in temperature range from -40°C to 120°C. Dimensions: Width 40.1mm, Depth 40.1mm, Height 19.5mm.
This connector is manufactured in Germany ensuring high quality and stringent production standards. Ideal for industrial, automotive manufacturing, and electrical cabling applications.
Explore our Electronics & Electricals category for a wide range of connectors and automotive electrical components.
Explore more products in our Automotive Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Micro Quadlok System connector is 2.54mm, designed for high density and compact applications.
This automotive connector operates reliably between -40°C and 120°C, making it suitable for various environmental conditions.
The connector has an IP69K rating, providing waterproof protection suitable for harsh environmental conditions.
The housing of this connector is constructed from polybutylene terephthalate, which offers durability and high temperature resistance.
This connector features 4 contacts, allowing for multiple connections in a compact design.
Yes, it complies with RoHS, REACH, and ELV environmental standards, ensuring it meets regulatory requirements.
This connector uses crimp termination, which provides a secure connection for the wires.
The dimensions of the connector are 40.1mm in width, 40.1mm in depth, and 19.5mm in height.
The connector incorporates polarization and keying features that prevent mismating during installation.
This connector is manufactured in Germany, ensuring adherence to high quality and stringent production standards.
This connector is a male connector, designed for specific applications in automotive systems.
This connector is designed for use in automotive applications, including powertrain systems, safety, and body and chassis systems.
