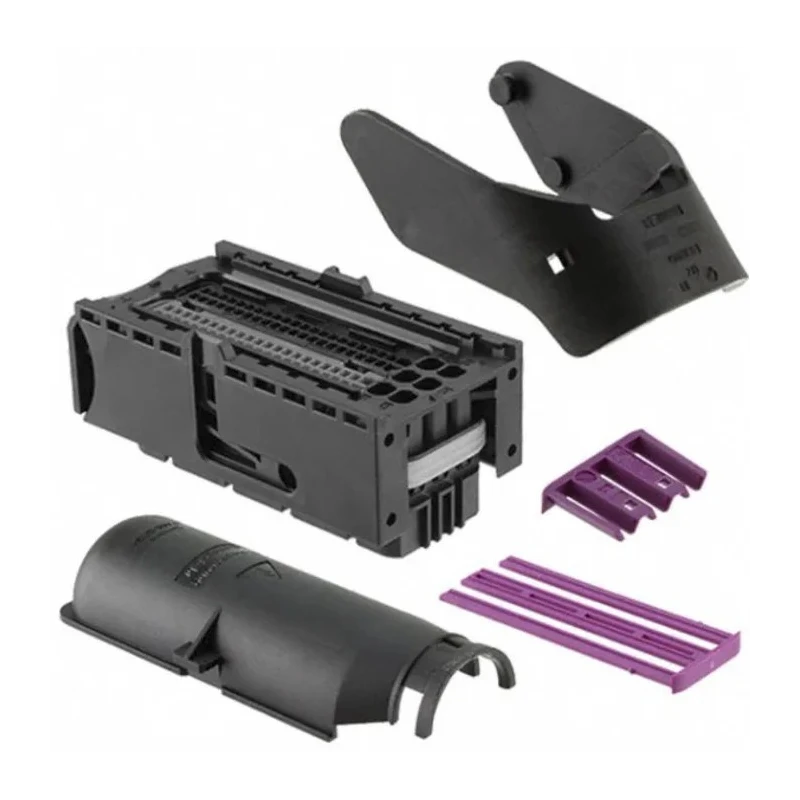

TE Connectivity Micro Quadlok System 94 Way Female Automotive Connector Black Purple Cable 3-1534904-4

TE Connectivity 3-1534904-4 Micro Quadlok System automotive connector is a female crimp termination connector designed for automotive electrical applications requiring dense, reliable connections with up to 94 contact points. This compact connector utilizes the 2.54mm pitch MQS interconnection system which offers robust mechanical stability and excellent electrical performance in harsh environments, capable of operating between -40°C and 120°C.

The connector housing is made from fibreglass reinforced polybutylene terephthalate, ensuring high durability and resistance to automotive operational stresses. Its cable mount configuration with black and purple colour coding aids in identifying wiring while maintaining robust mechanical locking with stainless steel locking lances for primary terminal retention.

The design includes polarization and keying to prevent mismatching, with sealed versions available to provide waterproof protection when needed. This connector series suits powertrain, safety, security, driver information, comfort, and body systems in automotive and industrial vehicles.

Applications include automotive wiring harnesses requiring secure and dense female connectors with crimp termination. Supplementary accessories such as covers, levers, and retainer housings are available separately to extend functionality.

Features 94 contacts arranged in 4 rows for high density connections. Uses a 2.54mm pitch Micro Quadlok System for secure and compact interconnection. Equipped with crimp termination type for reliable electrical and mechanical connection.

Manufactured from fibreglass reinforced polybutylene terephthalate housing for durability and stability. Operates reliably in temperature ranges from -40°C to 120°C. Designed for cable mount with female gender connectors to suit automotive wiring harnesses.

Complies with RoHS standards ensuring environmentally friendly manufacture. Includes polarization and keying features to prevent mismating and enhance safety. Integral primary terminal locking force ensures firm contact retention.

Compact dimensions of 80.1mm width, 29mm height, and 42mm depth facilitate tight installations.

This connector is ideal for industrial and automotive electrical system assembly, manufacturing, and maintenance. Explore more Automotive Connectors and reliable TE Connectivity products at EnvMart for your electronic component needs.
