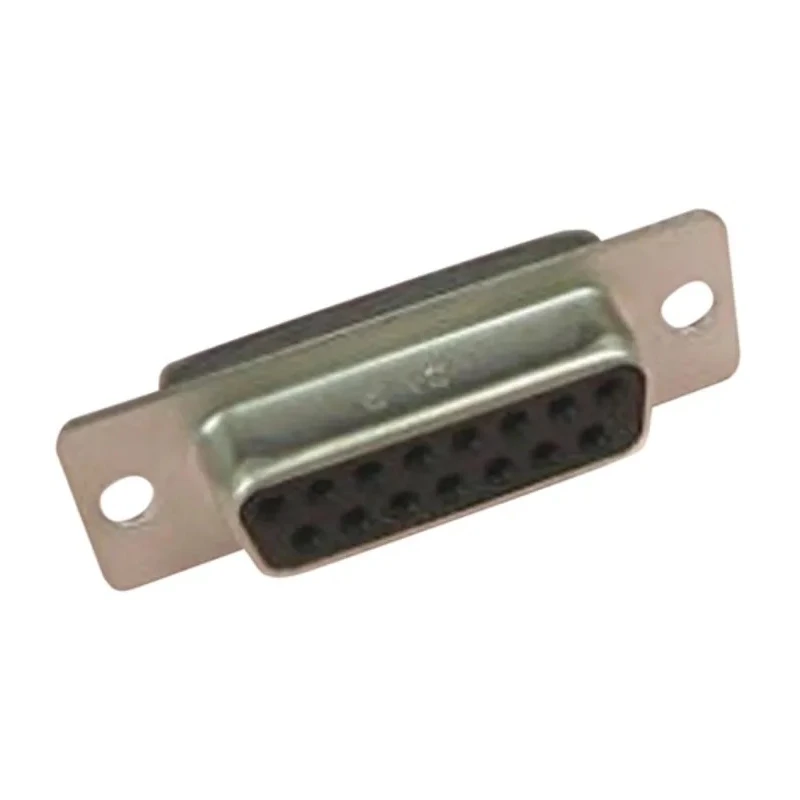

JAE 15 Way Straight Panel Mount Female D-Sub Connector, Steel Housing, Gold Plated Copper Alloy Contacts DA-15SF-N

Free Delivery in India | Lowest Global Shipping Charges

JAE 15 Way Straight Panel Mount Female D-Sub Connector, Steel Housing, Gold Plated Copper Alloy Contacts DA-15SF-N



Category D-Sub Connector Brand JAE Condition New

Specifications

Country of Origin	Japan
Brand	JAE
Orientation	Straight
Current	5A
Model	DA-15SF-N
Mount Type	Panel
Housing Material	Steel
Contact Material	Copper Alloy
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold
Number of Contacts	15
Contact Gender	Female
Connector Gender	Female
Connector Type D	Standard
D-Sub Shell Size	A

Key Features

The connector supports 15 contacts with a current rating of 5A.
It features a straight orientation suitable for panel mounting applications.
Contacts are gold plated for enhanced conductivity and corrosion resistance.
Housing is made of durable steel ensuring robust mechanical protection.
It operates reliably between -55°C and 105°C temperature range.
Termination is by solder type facilitating secure circuit assembly.
Manufactured in Japan ensuring high quality standards.

Product Description

JAE DA-15SF-N is a 15 Way Straight Panel Mount Female D-Sub Connector designed for industrial and electronic applications requiring secure and reliable connections. It features a steel housing that provides mechanical strength and durability under demanding operational environments. The connector is suitable for panel mounting with a straight orientation to facilitate straightforward installation on equipment panels.

The internal contacts are made of copper alloy with gold plating, ensuring excellent electrical conductivity and resistance to corrosion, essential for maintaining performance in harsh conditions. Rated for a current of 5A, this connector is well-suited for power and signal transmission tasks.

Its operational temperature range extends from -55°C to 105°C, providing versatility for use in a variety of industrial settings including electronics manufacturing, telecommunications, instrumentation, and control systems. The solder termination type simplifies assembly processes, making it efficient for integration into printed circuit boards.

Manufactured in Japan, the DA-15SF-N upholds stringent quality and reliability standards, suitable for high-quality equipment and critical applications. It is compliant with standard D-Sub shell size A and does not have specific certifications but fits industry quality expectations.

The connector supports 15 contacts with a current rating of 5A. It features a straight orientation suitable for panel mounting applications. Contacts are gold plated for enhanced conductivity and corrosion resistance. Housing is made of durable steel ensuring robust mechanical protection.

It operates reliably between -55°C and 105°C temperature range. Termination is by solder type facilitating secure circuit assembly. Manufactured in Japan ensuring high quality standards.

Ideal for industrial electronic equipment assemblies, control cabinets, and instrumentation panels, this connector from JAE enables secure, high-quality interconnections. Explore more D-Sub Connectors and components within EnvMart’s Electronics & Electricals category for comprehensive connectivity solutions.
