| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | VAL-U-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | VAL-U-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |

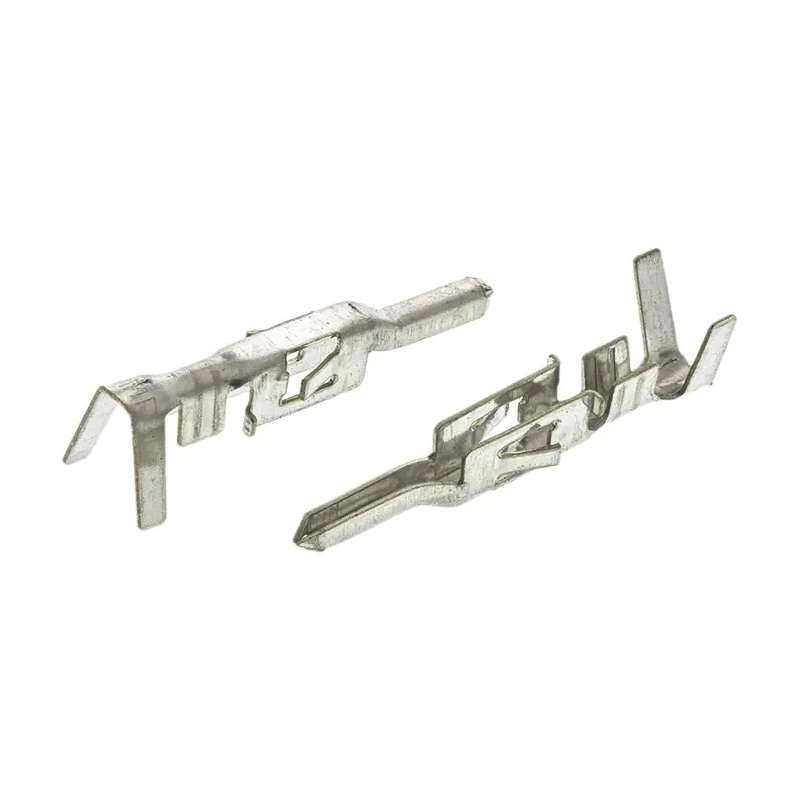

The TE Connectivity 1586314-1 VAL-U-LOK Series Male Crimp Terminal is a high-quality crimp contact designed for use with VAL-U-LOK connector housings. It supports a current rating of 9 amperes and accommodates wire sizes ranging from 24 AWG minimum to 18 AWG maximum, making it ideal for a variety of electrical connections in industrial, electronic, and manufacturing environments.
Manufactured with a brass contact body and tin plating, this male crimp terminal ensures excellent electrical conductivity and corrosion resistance, which contributes to long-lasting performance in demanding conditions. The crimp termination type guarantees a secure mechanical and electrical connection between the wire and contact, reducing the risk of loose contacts or failures.
Its design is optimized to maintain a low contact resistance of 10 milliohms or less, enhancing efficiency in current flow and reducing energy losses. Additionally, the component is rated to function reliably in operating temperatures from -40°C to 105°C, supporting applications in harsh environments.
The VAL-U-LOK system by TE Connectivity is known for being a robust connector solution widely used in electronics, power distribution, and automation sectors. The 1586314-1 male crimp terminal complements this system by offering compatibility and ease of installation.
Brass contact material with tin plating provides corrosion resistance and durability. Crimp termination type ensures secure wire connection. Supports wire gauge range from 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²). Rated current of 9 amperes suitable for many electronic applications.
Low maximum contact resistance of 10 milliohms reduces energy loss. Operational temperature range from -40°C to 105°C supports diverse environments. Designed for use exclusively with VAL-U-LOK connector housing series.
This crimp terminal is manufactured in China and adheres to industry standards to ensure reliable performance. It is ideal for industrial automation, electronic assemblies, and power connector applications requiring consistent electrical and mechanical integrity.
Explore further TE Connectivity products and related Crimp Contacts on EnvMart to suit your technical needs.
