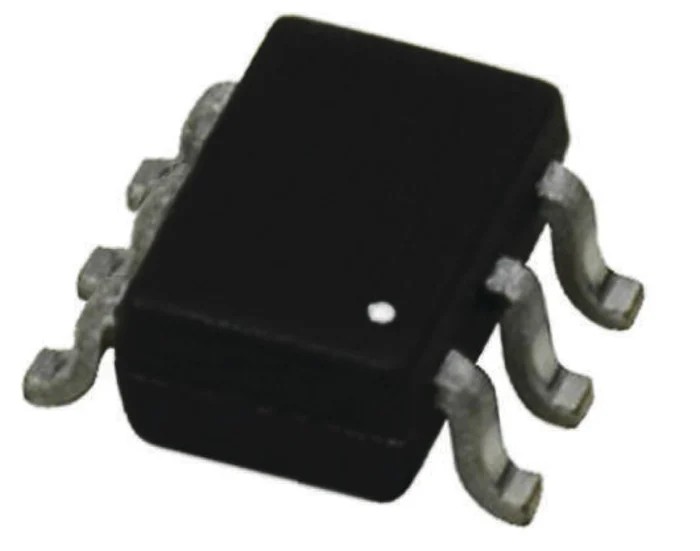

DiodesZetex Silicon Junction Switching Diodes 2x Series Pair 160 mA 85 V SC-88 BAV199DW-7-F

DiodesZetex BAV199DW-7-F is a silicon junction switching diode designed for efficient signal switching applications. It employs a 2x series pair diode configuration capable of handling a maximum forward current of 160 mA. Housed in a compact 6-pin SC-88 surface mounting package, this diode offers a peak reverse repetitive voltage rating of 85 V and a maximum forward voltage drop of 1.25 V, ensuring reliable and low-loss operation in electronic circuits.

The device features a fast peak reverse recovery time of approximately 3 microseconds, making it suitable for high-speed switching tasks. It supports a broad operating temperature range from -65°C to 150°C, ensuring consistent performance in demanding environments. With a maximum power dissipation of 200 mW, the diode efficiently manages thermal loads during operation.

Its small footprint with dimensions of 2.2 mm in length, 1.35 mm in width, and 1 mm in height makes it ideal for compact PCB layouts. This component is widely used in electronic industries for switching, signal modulation, and protection circuits, particularly where space and efficiency are critical.

The surface-mount design facilitates easy integration into automated assembly lines, improving production efficiency. Although this device does not carry specific automotive or industrial standards, it is engineered to meet the diverse requirements of discrete semiconductor applications.

With its reliable performance and compact design, the DiodesZetex BAV199DW-7-F offers a durable solution for circuit designers seeking efficient and fast-switching silicon diodes. Compact 6-pin SC-88 surface-mount package for space-saving applications.

Maximum forward current of 160 mA suitable for small signal switching. Peak reverse repetitive voltage of 85 V ensures reliable operation. Low forward voltage drop of 1.25 V minimizes power loss. Fast peak reverse recovery time of 3 microseconds enhances switching speed.

Wide operating temperature range from -65°C to 150°C for robust performance. Maximum power dissipation of 200 mW for efficient thermal management. Designed for use in switching, signal processing, and protection circuits.

Surface mount design facilitates automated PCB assembly. Small physical dimensions: 2.2 mm length, 1.35 mm width, and 1 mm height. Explore more Switching Diodes and silicon junction diodes at EnvMart to suit your electronic component requirements.
