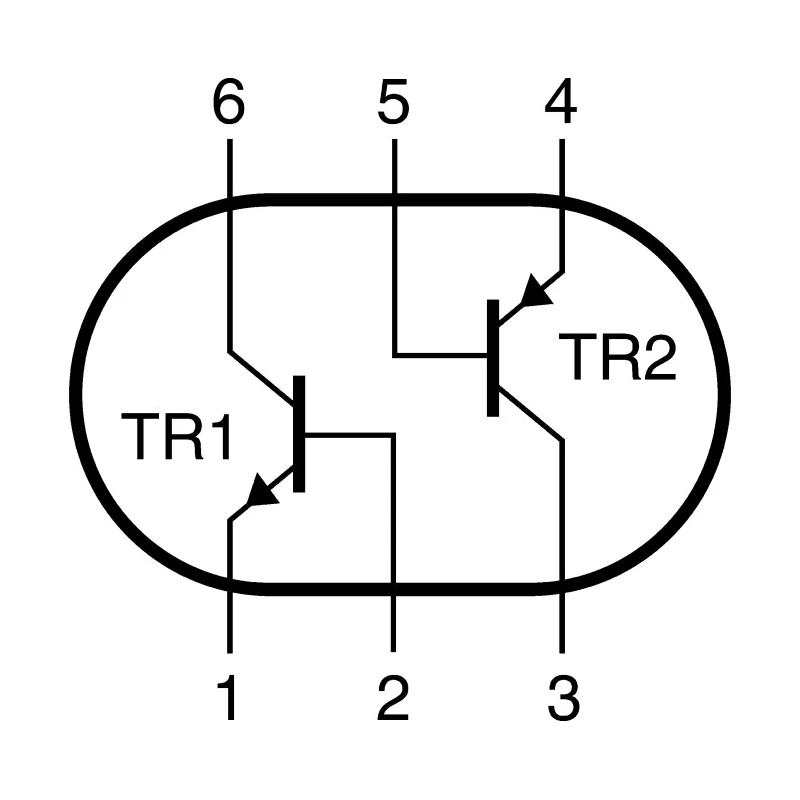

Nexperia Low Saturation Voltage Dual NPN/PNP Bipolar Transistor 1 A 40 V 6-Pin TSOP PBSS4140DPN,115

Nexperia PBSS4140DPN,115 is a dual NPN/PNP bipolar transistor that features low saturation voltage and is housed in a compact 6-pin TSOP surface mount package. It supports a maximum DC collector current of 1 A and a maximum collector emitter voltage of 40 V, making it suitable for various electronic circuit switching applications.

This transistor provides excellent efficiency owing to its very low collector-emitter saturation voltage, which decreases losses and heat generation. Its high minimum DC current gain of 160 ensures effective amplification in circuits.

It is rated for operation between -65°C and 150°C, allowing it to perform reliably in harsh environments. The maximum power dissipation of 370 mW requires appropriate heat management in circuit designs.

The device complies with RoHS standards and meets the AEC-Q101 automotive qualification, making it suitable for automotive electronics and industrial use cases.

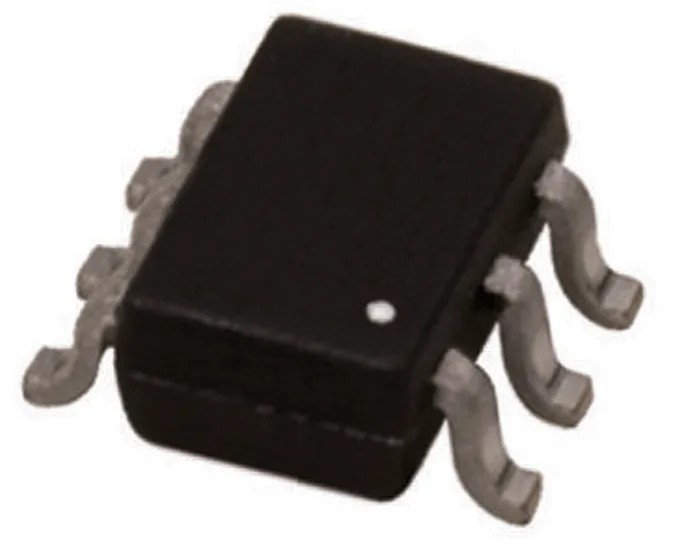

This transistor configuration is isolated, offering added robustness and design flexibility. The 6-pin TSOP package facilitates surface mounting on PCB assemblies, helping save valuable board space in compact electronic devices.

This transistor features a maximum DC collector current of 1 ampere for efficient switching. The maximum collector emitter voltage rating is 40 volts ensuring reliable performance. Designed with a compact 6-pin TSOP surface mount package for space saving on PCBs.

Low collector-emitter saturation voltage results in reduced power loss and heat generation. High minimum DC current gain of 160 enhances amplification capabilities. The transistor offers continuous operation between -65°C to 150°C temperature range.

Maximum power dissipation is 370 milliwatts for moderate thermal management requirements. Meets RoHS compliance and automotive standard AEC-Q101 ensuring quality and reliability. Ideal for use in switching and digital applications in automotive and industrial electronics.

This Nexperia transistor is well suited for electronic industrial applications such as power regulation, digital switching, automotive control circuits, and other scenarios requiring reliable bipolar transistor performance with low saturation losses.
