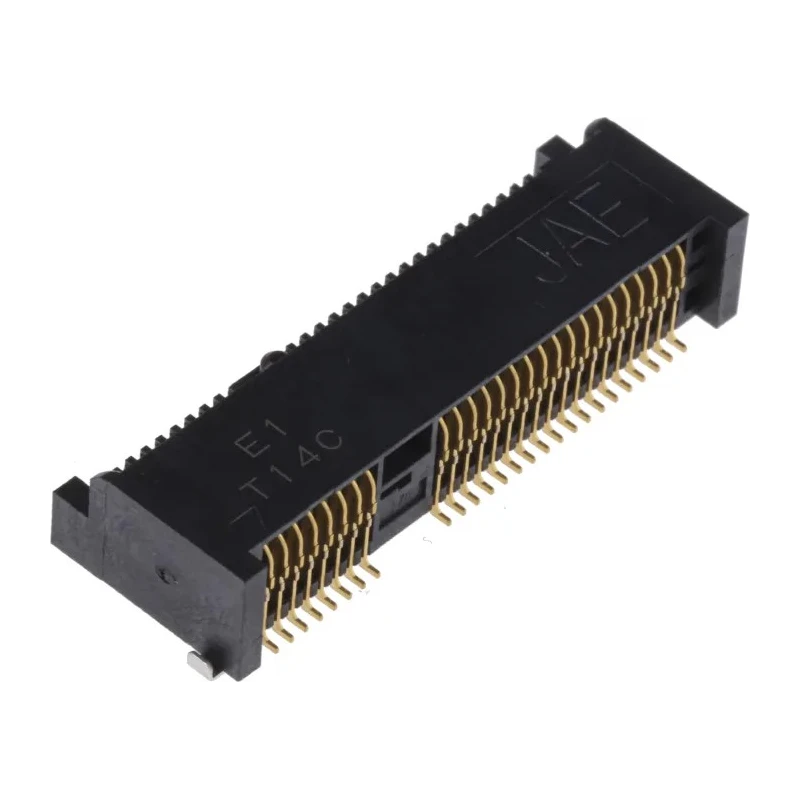

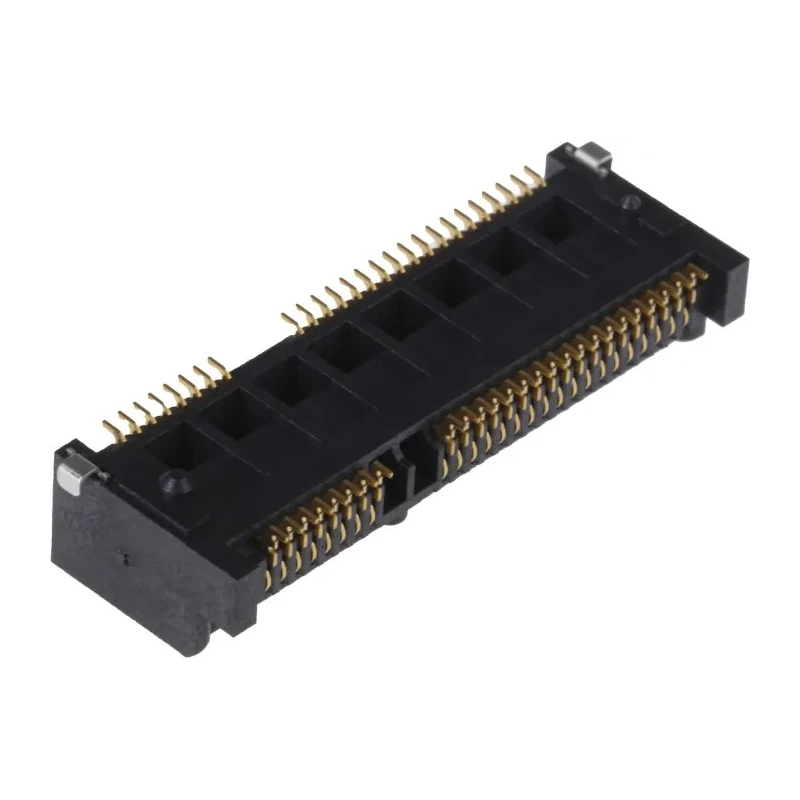

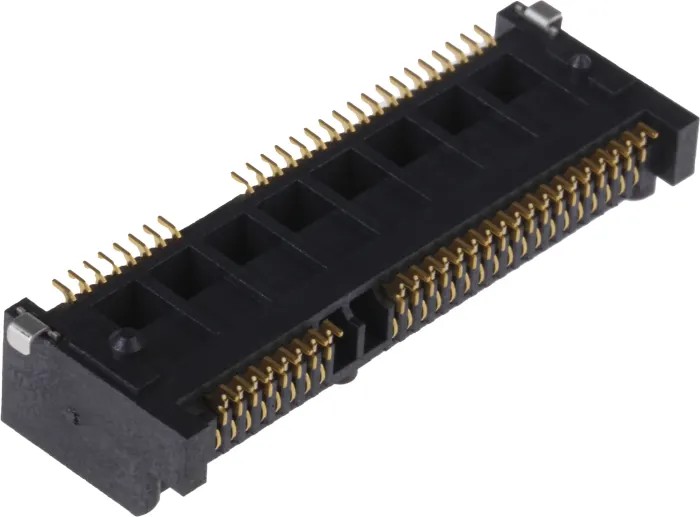

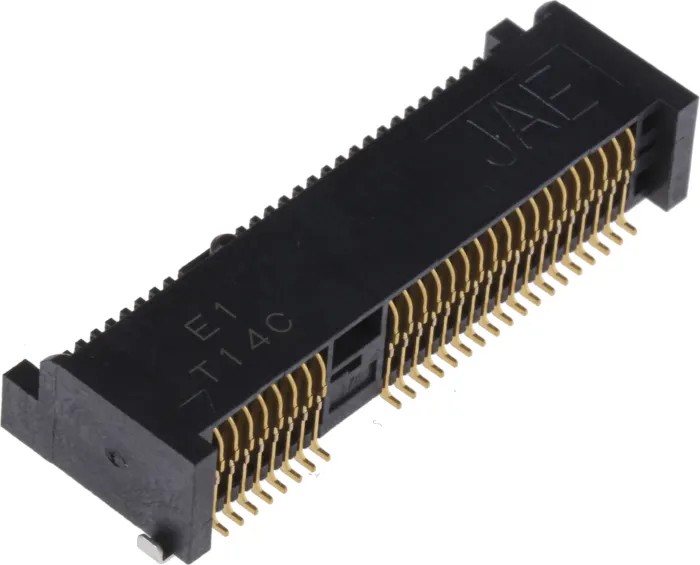

JAE 52 Way Right Angle PCI Mini PCIe Memory Card Connector, 0.8mm Pitch, Surface Mount, Solder MM60

The JAE MM60-52-B1-E1 is a 52-way memory card connector engineered for reliable interfacing in computing and electronics equipment requiring PCI and Mini PCIe compatibility. Its compact right-angle form factor and surface mount technology allow seamless integration onto densely populated PCBs, making it ideal for space-conscious applications in industrial automation, embedded systems, and computing motherboards.

This connector provides a robust and secure electrical interface, with a design that features gold over nickel-plated copper alloy contacts to ensure excellent electrical conductivity as well as high wear resistance over repeated insertions and withdrawals. The connector supports both PCI and Mini PCIe cards and includes 52 contact positions distributed in two parallel rows, supporting efficient data transfer and connection integrity.

For ease of assembly and reliable module retention, latches are integrated on both ends of the connector to facilitate easy module ejection. The MM60-52-B1-E1 is also available in multiple module mounting heights, making it suitable for designs with various mechanical constraints. Its housing is constructed from quality plastic material to provide insulation, mechanical strength, and environmental durability.

With an operating temperature range from -40°C to 80°C, the connector is suitable for deployment in harsh environments and demanding industrial applications. Its solder termination and surface mount installation enable automated assembly, supporting high-volume manufacturing and consistent quality.

The 0.8mm pitch and female configuration facilitate precise alignment with mating cards, ensuring reliable contact and signal transmission. The product is manufactured to comply with the PCI Express Mini Card Electromechanical Specification, providing trusted interoperability for global applications in computing, telecommunications, industrial automation, and custom embedded processing systems.

This connector comes in embossed tape packaging to support automated pick-and-place installation, further streamlining assembly in modern electronics manufacturing processes.

Engineers and procurement specialists seeking high-reliability, compact, and standards-compliant memory card connectors for advanced electronic builds will find the JAE MM60-52-B1-E1 to be an excellent choice. For more options and related products, explore further through EnvMart’s Memory Card Connector category or view additional JAE solutions offered.
