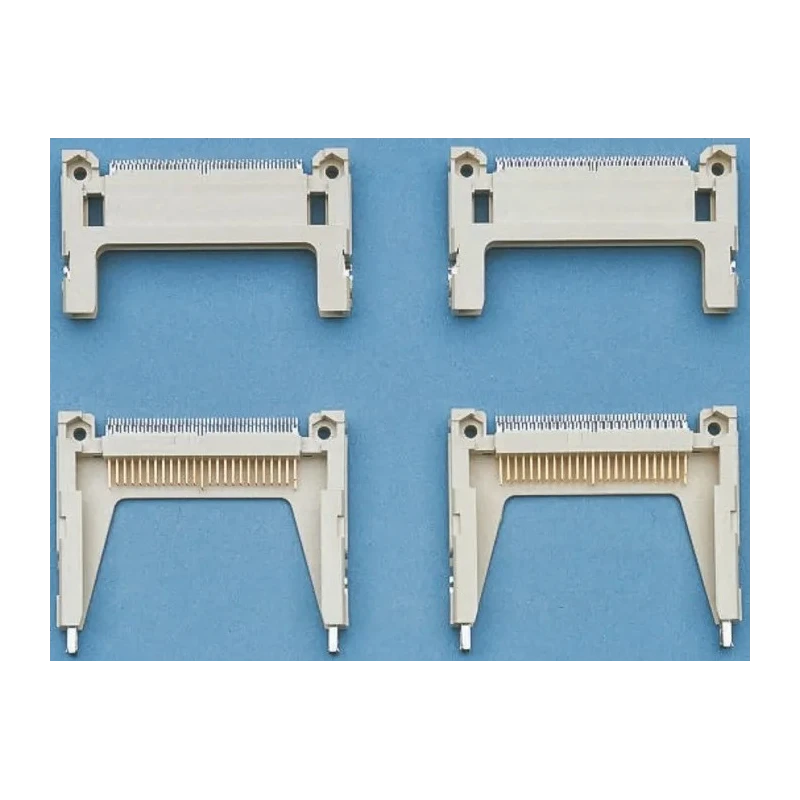

Yamaichi CF 50 Way Right Angle Push Compact Flash Memory Card Connector, Surface Mount, Solder Termination CF050P2-003-00-DS
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Yamaichi |
| Orientation | Right Angle |
| Model | CF050P2-003-00-DS |
| Gender | Male |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Brass |
| Series | CF |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.635mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 50 |
| Card Type | Compact Flash |
| Insertion/Removal Method | Push |
Key Features
- Compact Flash card type designed for 50 contacts arranged in 2 rows.
- Right angle orientation suitable for space-efficient PCB designs.
- Surface mount type with solder termination for secure fixing.
- Contacts made of brass with gold over nickel plating for excellent conductivity and corrosion resistance.
- Housing constructed from liquid crystal polymer, ensuring durability over wide temperature range.
- Operates reliably from -55°C up to 85°C temperature range.
- Push insertion and removal method for convenient and secure use.
- Ideal for embedded systems, digital cameras, music players, and portable handheld devices.
Product Description
Yamaichi CF050P2-003-00-DS is a high-quality Compact Flash Memory Card Connector featuring 50 contacts in 2 rows with a 0.635mm pitch. This right angle connector facilitates a push-type insertion and removal method, enabling secure but straightforward connection on printed circuit boards.
The connector features surface mount technology with solder termination, ensuring a robust mechanical and electrical connection. Contacts are crafted from brass and plated with gold over nickel, providing excellent conductivity and long-term resistance to corrosion and wear. The housing is made of liquid crystal polymer, an engineering plastic known for its strength and heat resistance.
Operating temperatures range from -55°C to 85°C, making this connector suitable for demanding industrial and embedded applications, including Palmpilot PC/Organizers, digital cameras, digital music players, and various portable handheld devices.
This model is part of the CF series developed by Yamaichi and manufactured in Taiwan, Province Of China, ensuring high quality and reliability. It complies with general industrial standards but has no specific certifications listed.
Compact Flash card type with 50 contacts and 2 rows. Right angle orientation for compact PCB layout. Surface mount with solder termination. Brass contacts plated with gold over nickel. Housing made from durable liquid crystal polymer.
Operates from -55°C to 85°C. Push insertion/removal method for convenience. Suitable for industrial, embedded, and portable device applications. Manufactured in Taiwan, Province Of China. Choose Yamaichi for reliable and industry-proven Compact Flash Memory Card Connectors. Explore more categories and brands on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 50 contacts arranged in 2 rows with a pitch of 0.635mm.
It utilizes a solder termination type, ensuring a secure mechanical and electrical connection.
The contacts are made of brass and are plated with gold over nickel, while the housing is constructed from liquid crystal polymer.
It operates reliably within a temperature range of -55°C to 85°C.
This connector has a right angle orientation, making it suitable for compact PCB designs.
It is ideal for use in embedded systems, digital cameras, music players, and portable handheld devices.
The connector employs a push insertion and removal method for convenient use.
This model features a male gender configuration.
The gold over nickel plating provides excellent conductivity and long-term resistance to corrosion and wear.
It is manufactured in Taiwan, Province Of China.
This model supports surface mounting, which allows for efficient use of space on PCBs.
It is part of the CF series developed by Yamaichi.
