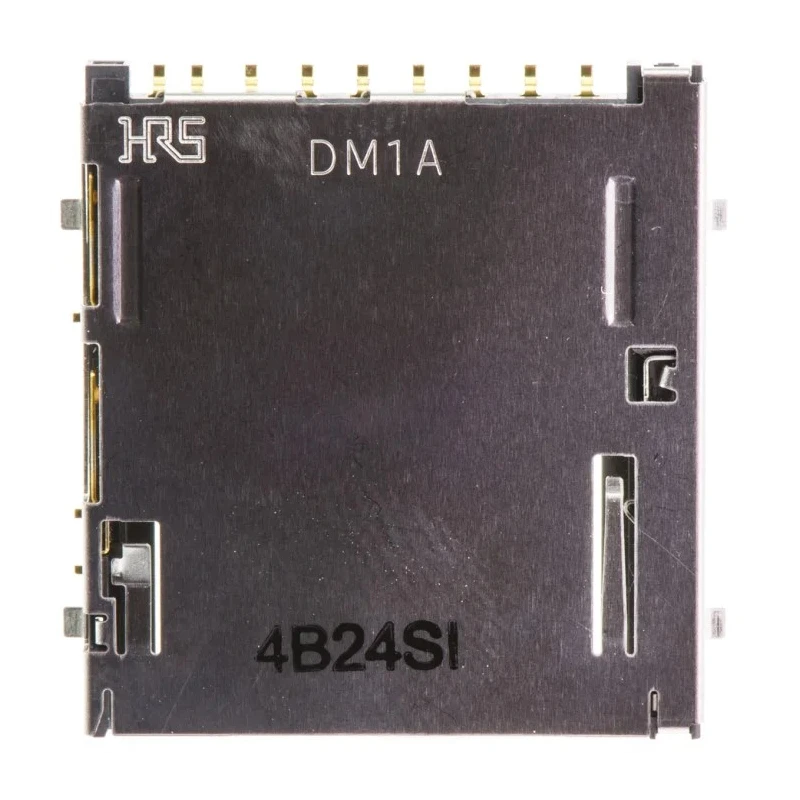

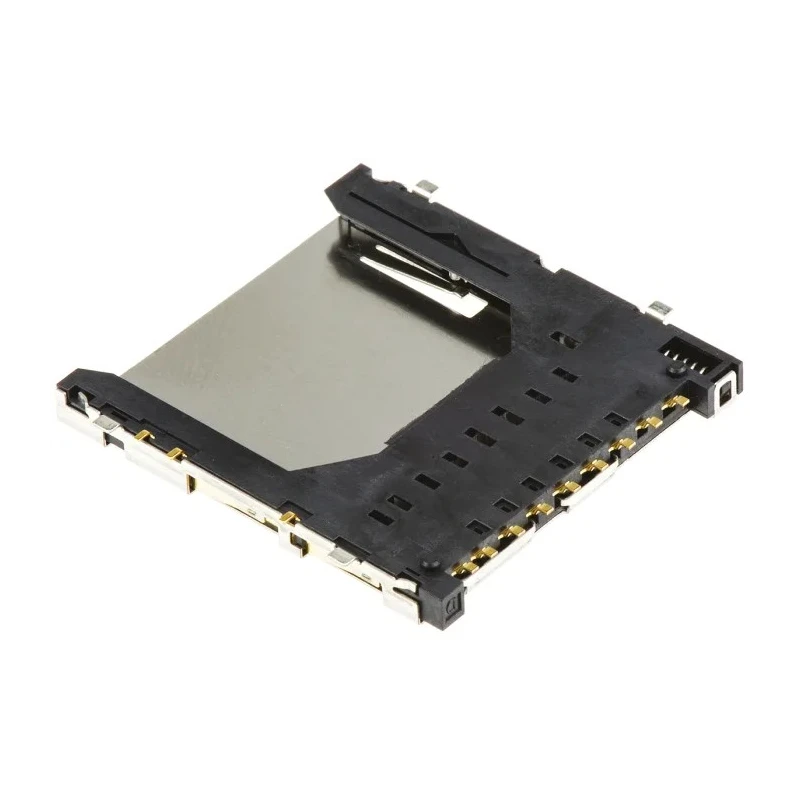

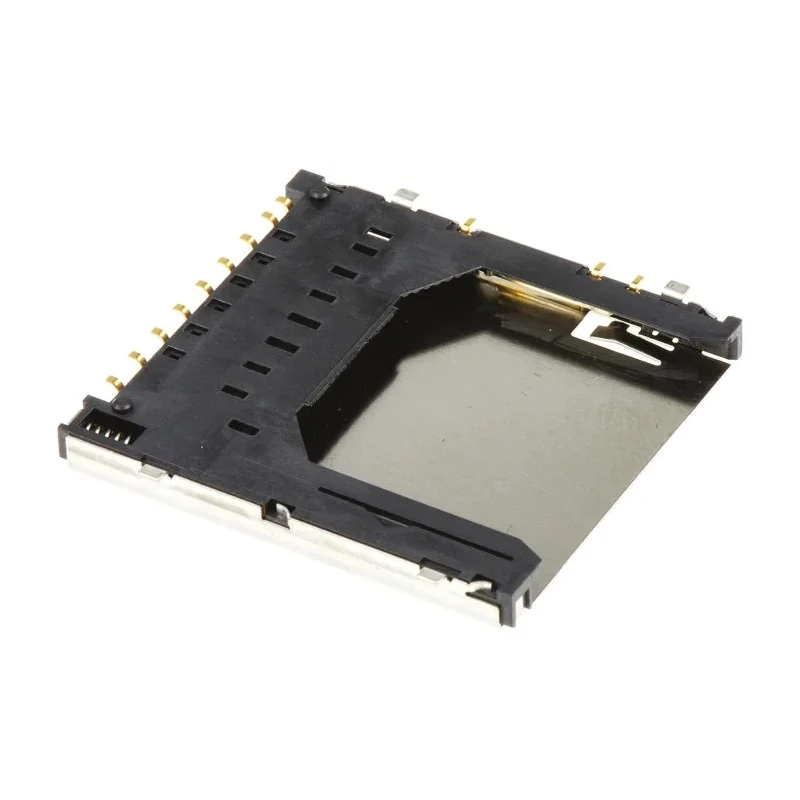

Hirose 9 Way Right Angle Push-Push SD Memory Card Connector, Solder DM1AA-SF-PEJ(72)
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Hirose |
| Orientation | Right Angle |
| Model | DM1AA-SF-PEJ(72) |
| Gender | Female |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | DM1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Card Type | SD |
| Insertion/Removal Method | Push-Push |
Key Features
- Features a 9 contact female SD card interface with right angle orientation.
- Push-Push insertion and removal method ensures secure card retention and easy operation.
- Constructed with phosphor bronze contacts plated with gold for excellent conductivity.
- Thermoplastic housing material provides durability up to 85°C maximum operating temperature.
- Surface mount termination type with solder connection for PCB integration.
- Metal cover design includes stainless steel for protection and extended connector life.
- Suitable for use in digital cameras, notebook PCs, PDAs, and audio/video equipment utilizing SD I/O cards.
- Meets DM1 Series standards with built-in lock feature and push-in/push-out ejection mechanism.
Product Description
Hirose DM1AA-SF-PEJ(72) 9 Way Right Angle Push-Push SD Memory Card Connector is expertly engineered for surface mounting on printed circuit boards, providing robust and dependable connectivity for SD memory cards. It is ideally suited for applications in notebook PCs, digital cameras, PDAs, audio/video equipment, and other electronic devices requiring SD I/O card interfaces.
The connector features a 9-contact female configuration arranged in a single row with a 2.5mm pitch, designed with right angle orientation for optimized PCB layout and space-saving integration. The push-push mechanism facilitates easy card insertion and removal, while the built-in lock feature enhances card security during operation.
Phosphor bronze contacts with gold plating guarantee high electrical conductivity and corrosion resistance. The thermoplastic housing material withstands operating temperatures ranging from -25°C to 85°C, providing durability and reliable performance in demanding environments. The stainless steel cover extends over the back of the connector for additional mechanical protection and longevity.
9 contact female SD card interface with right angle orientation. Push-push card insertion and removal method. Phosphor bronze contacts plated with gold. Thermoplastic housing material resilient up to 85°C. Surface mount solder termination.
Stainless steel protective metal cover. Built-in lock feature and push-in/push-out ejection mechanism. Operation range: -25°C to 85°C. Compliant with DM1 Series specifications. Its reliable mechanical properties and electrical performance meet industry demands in various sectors such as computing, imaging, and audio/video technology.
Manufactured in Indonesia, the DM1AA-SF-PEJ(72) SD Memory Card Connector adheres to Hirose’s quality standards ensuring excellent durability and performance for professional applications.
Explore EnvMart's extensive range of electronic connectors to find compatible components for your projects. Enhance your device's connectivity with Hirose Memory Card Connectors, trusted worldwide for their precision and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the Hirose DM1AA-SF-PEJ(72) is 85°C.
This model supports SD memory cards, featuring a 9-contact female interface designed for secure connectivity.
The connector has a right angle orientation, which is optimized for PCB layout and space-saving integration.
It features a surface mount termination type with solder connection for integration onto printed circuit boards.
The housing is made from thermoplastic, while the contacts are constructed from phosphor bronze and plated with gold for conductivity.
It utilizes a push-push mechanism for easy card insertion and removal, ensuring secure card retention during operation.
The contact pitch for this model is 2.5mm, arranged in a single row configuration.
The minimum operating temperature for the Hirose DM1AA-SF-PEJ(72) is -25°C.
It includes a built-in lock feature and a push-in/push-out ejection mechanism for enhanced card security.
This connector is suitable for use in digital cameras, notebook PCs, PDAs, and audio/video equipment that utilize SD I/O cards.
The Hirose DM1AA-SF-PEJ(72) is manufactured in Indonesia, adhering to Hirose's quality standards.
This connector has a female gender configuration, designed specifically for SD memory card interfaces.
