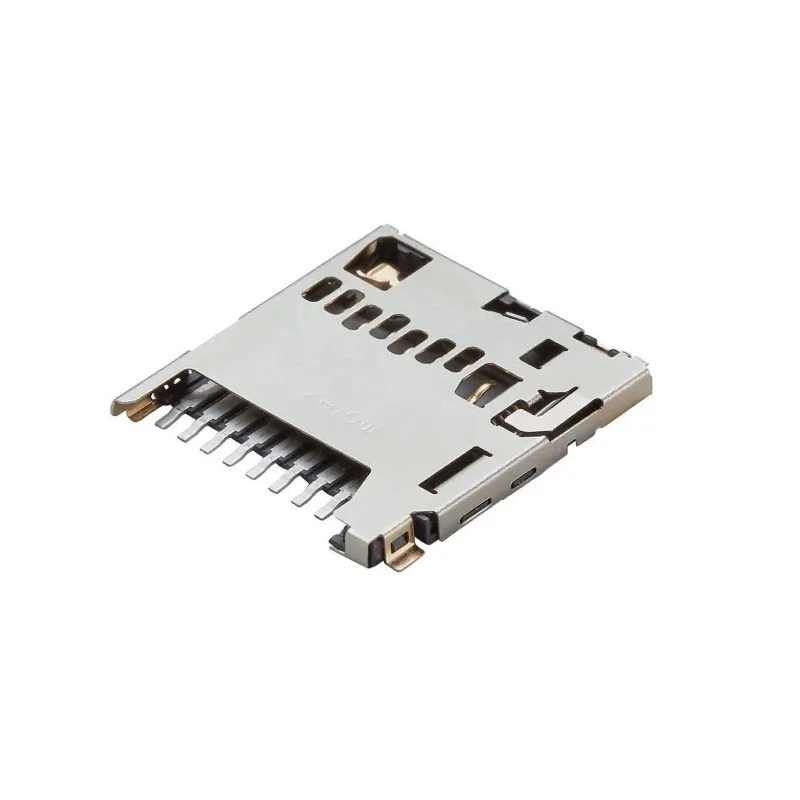

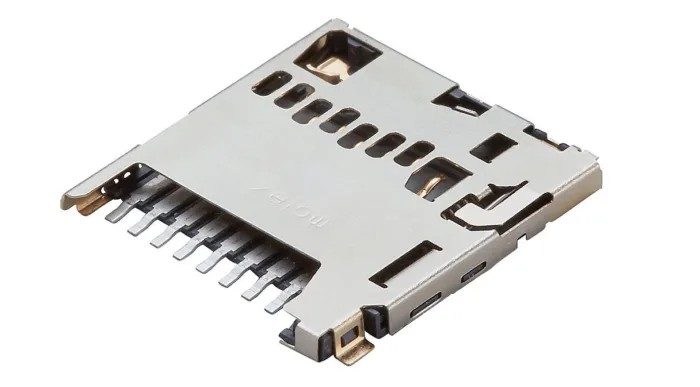

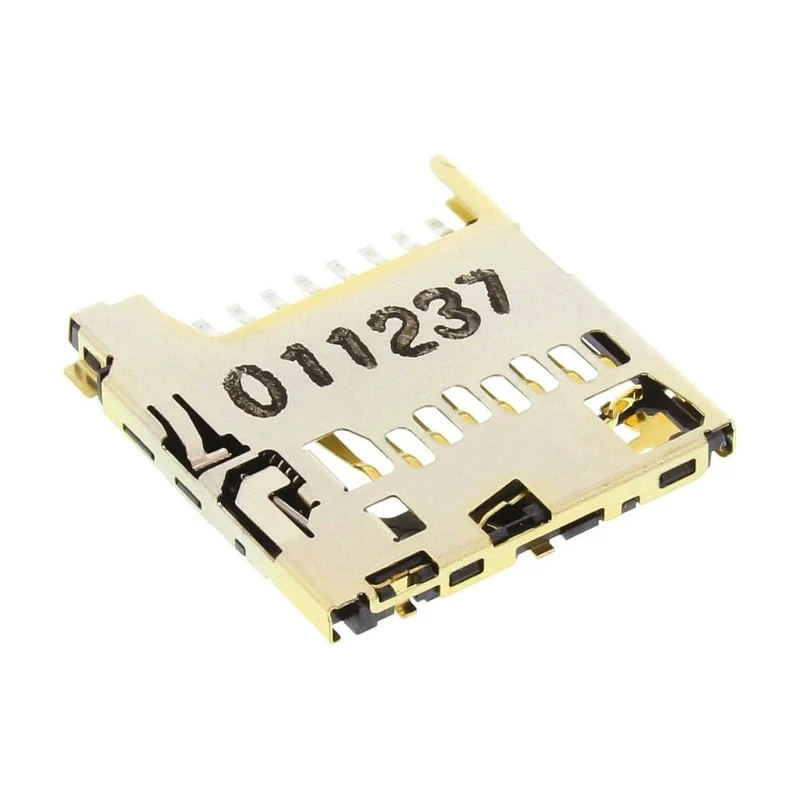

Molex 8 Way Push-Push MicroSD Memory Card Connector, Solder, Surface Mount, 1.1mm Pitch, Gold Contacts 503398-1892

Molex 503398-1892 8 Way Push-Push MicroSD Memory Card Connector provides a reliable and compact solution for integrating MicroSD memory cards into electronic devices. It features a solder termination type and surface mount installation, which saves PCB space and simplifies assembly.

The connector is engineered with 8 fatigue-resistant phosphor bronze contacts plated with gold, ensuring long-lasting signal integrity and durability. Its compact dimensions of 13.1 mm length, 14.05 mm width, and 1.28 mm height suit portable and space-constrained applications.

Operating within a wide temperature range of -25°C to 85°C, this connector is suitable for diverse environments including consumer electronics, automotive manufacturing, and industrial control systems. The push-push mechanism allows for easy insertion and removal of MicroSD cards, while the anti-fly-out ramp prevents accidental card loss or damage during operation.

The housing is constructed from glass filled liquid crystal polymer, providing mechanical strength and reliability. With a straight orientation and 1.1 mm pitch, this connector ensures precise alignment and secure connectivity. The series 503398-1892 is designed without specific standards or approvals but meets the requirements of demanding electronic assembly needs.

This product is manufactured in Vietnam and comes new, making it an excellent choice for integrating memory card functionality into high-quality electronic designs. Designed for MicroSD cards with push-push insertion and removal method.

Features 8 durable phosphor bronze contacts with gold plating for corrosion resistance. Compact size with dimensions 13.1 x 14.05 x 1.28 mm suitable for portable devices. Operates efficiently in temperature range of -25°C to 85°C.

Anti-fly-out ramp design prevents memory card loss or damage during use. Surface mount technology enables easy and space-saving PCB installation. Housing made of glass filled liquid crystal polymer ensures structural integrity.

Straight orientation and 1.1 mm pitch for precise fit and connectivity. Ideal for applications in consumer electronics, automotive, and industrial control equipment. Explore EnvMart for more high-quality electronic connectors and components from Molex and other trusted brands.
