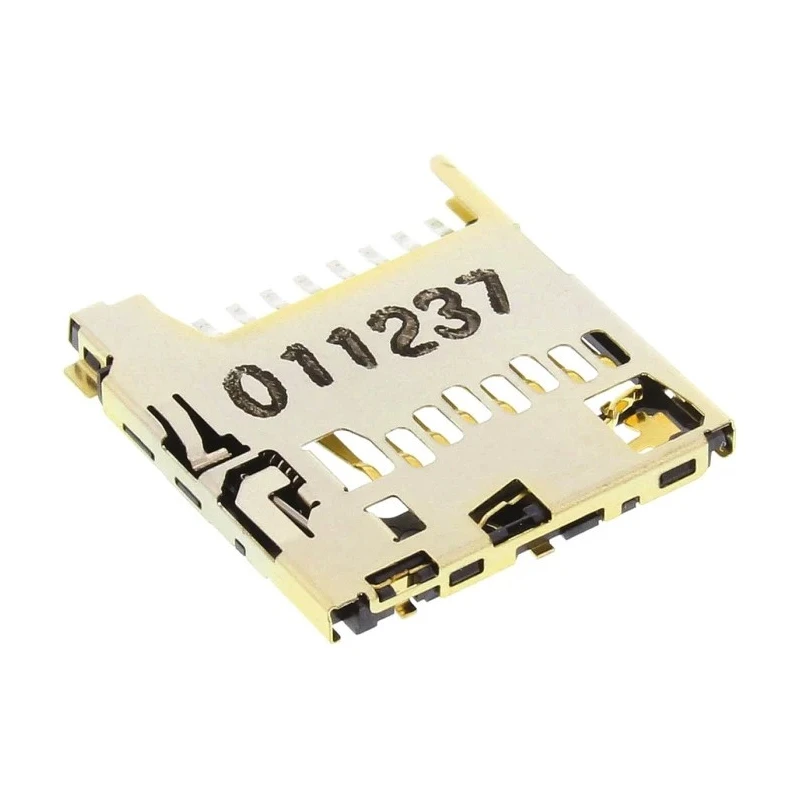

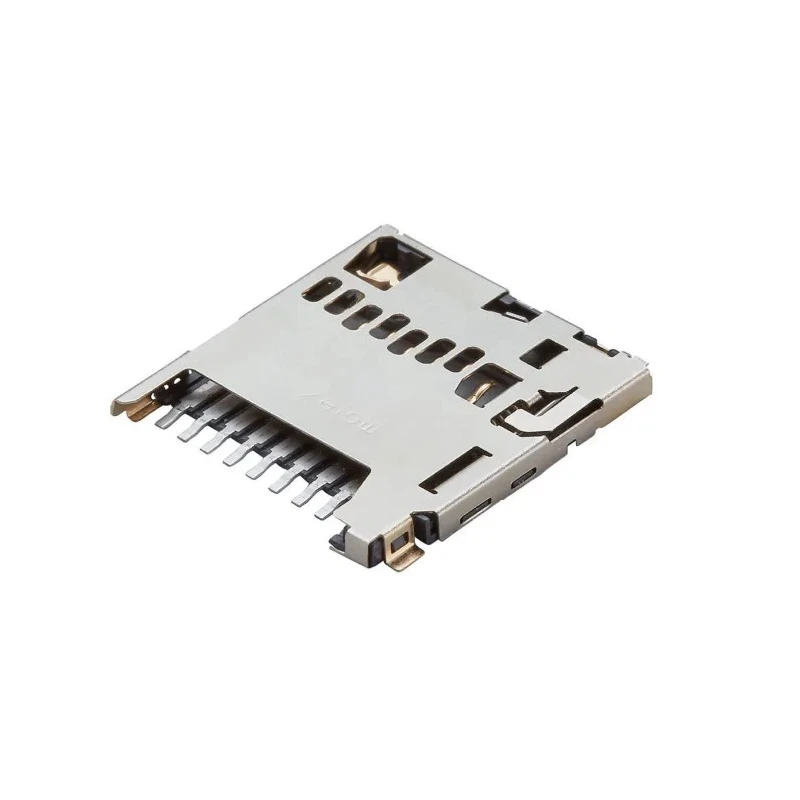

Molex 8 Way Push-Push MicroSD Memory Card Connector, Solder, Surface Mount, 1.1mm Pitch 503398-1892

Free Delivery in India | Lowest Global Shipping Charges

Molex 8 Way Push-Push MicroSD Memory Card Connector, Solder, Surface Mount, 1.1mm Pitch 503398-1892

Name: Molex 8 Way Push-Push MicroSD Memory Card Connector, Solder, Surface Mount, 1.1mm Pitch 503398-1892
Brand: Molex
SKU: 384525
Price: 3.06 USD
Availability: InStock



Category Memory Card Connector Brand Molex Condition New

Specifications

Country of Origin	Vietnam
Brand	Molex
Orientation	Straight
Gender	Male
Mount Type	Surface
Housing Material	Glass Filled Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1.1mm
Contact Plating	Gold
Number of Contacts	8
Card Type	MicroSD
Insertion/Removal Method	Push-Push

Key Features

Offers a compact form factor of 13.1mm length by 14.05mm width and 1.28mm height.
Equipped with 8 phosphor bronze gold-plated contacts for durability and reliable connections.
Operates in temperature range from -25°C to +85°C suitable for varied environments.
Push-push insertion/removal method allows easy card insertion and ejection.
Housing made from glass filled liquid crystal polymer ensures mechanical strength.
Designed with an anti-fly-out ramp to prevent accidental card loss or damage.
Surface mount technology reduces PCB space requirements compared to through-hole connectors.
Ideal for consumer electronics, automotive production, and industrial control applications.

Product Description

Molex 503398-1892 is an 8 Way Push-Push MicroSD Memory Card Connector designed for reliable digital storage and data transfer in electronic devices. This connector features a push-push mechanism supporting easy insertion and release of MicroSD cards, facilitating user convenience in smartphone, tablet, and portable device applications.

The connector has compact dimensions measuring 13.1 mm length, 14.05 mm width, and a low profile height of 1.28 mm, enabling integration in space-constrained designs. It employs surface mount technology (SMT) with solder termination tabs recessed within the shell outline to prevent terminal damage and maintain mechanical integrity.

The 8 contacts are constructed from fatigue-resistant phosphor bronze and plated with gold to ensure long-term durability and reliable electrical performance. Operating reliably in a temperature range from -25°C to 85°C, it is suitable for diverse environments including automotive and industrial control systems.

A key feature is the anti-fly-out ramp that prevents accidental ejection of memory cards, providing secure retention. The housing is made of glass filled liquid crystal polymer, offering robust mechanical support.

Applications for this Molex 503398-1892 connector include consumer electronics, automotive production lines, and various industrial control components where data storage and transfer interfaces are required.

Compact dimensions and low profile design for space-saving PCB layouts. Fatigue-resistant phosphor bronze contacts with gold plating for durability. Wide operating temperature range from -25°C to 85°C. Push-push mechanism allows easy card insertion and ejection.

Glass filled liquid crystal polymer housing provides mechanical strength. Anti-fly-out ramp prevents lost or damaged memory cards. Surface mount solder termination for efficient PCB assembly. Explore our comprehensive range of Memory Card Connectors on EnvMart for various industrial and consumer applications.
