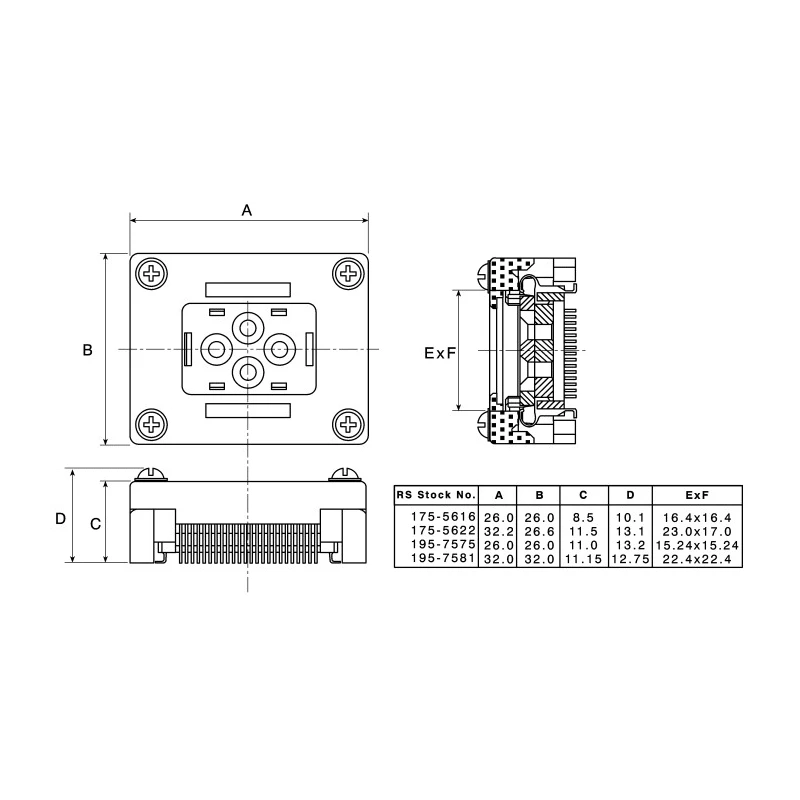

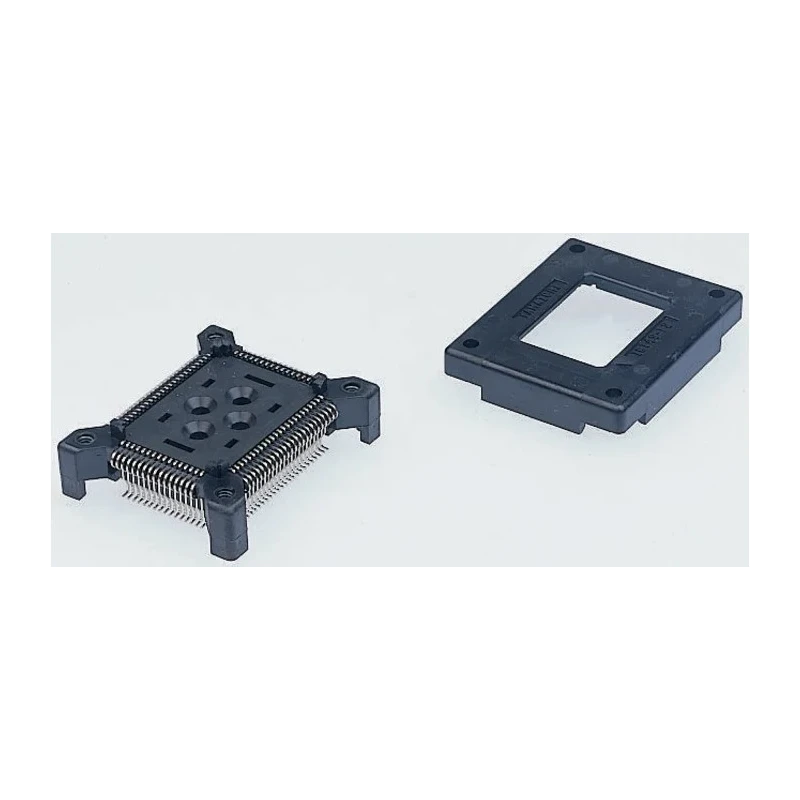

Yamaichi 0.65 mm Pitch 100 Way QFP Surface Prototyping IC Socket IC149-100-014-B5

Yamaichi IC149-100-014-B5 0.65 mm Pitch 100 Way QFP Surface Prototyping IC Socket offers a high precision solution for electronic prototyping and early production applications. It features a 100-contact QFP socket with a tight 0.65 mm pitch, enabling reliable electrical interfacing with QFP devices.

The socket body is constructed from high temperature thermoplastic materials including polyphenylene sulphide and nylon, providing mechanical robustness and thermal endurance. Its copper alloy contacts plated with gold ensure excellent conductivity, low contact resistance of 30mΩ (measured at 10mA), and resistance to corrosion and wear.

Rated for 1A current per contact and capable of withstanding up to 700V, this socket ensures safe operation in a variety of electronic circuits. It supports up to 20 insertion cycles per device, preventing damage to IC leads and maintaining signal integrity during multiple rework or testing cycles.

Designed as a surface mount device with straight orientation and solder termination type, the socket fits seamlessly onto printed circuit boards. It is compatible with reflow soldering processes at a maximum temperature of 220°C for 60 seconds, ensuring reliable solder joints.

Operating temperature range from -55°C to 170°C allows usage in both industrial and laboratory environmental conditions. Its insulation resistance stands at 500mΩ under 150V DC, minimizing leakage currents and ensuring electrical safety.

Supports 100 contacts with 0.65 mm pitch for QFP devices. High temperature resistant thermoplastic housing made of polyphenylene sulphide and nylon. Gold-plated copper alloy contacts for minimum resistance and durability.

Rated 1A current per contact and 700V voltage capability. Enables up to 20 insertion cycles protecting device leads. Surface mount with straight orientation for PCB integration. Operating temperature range from -55°C to 170°C suitable for harsh environments.

Contact resistance of 30mΩ at 10mA and UL 94 V-0 flammability rating. Compatible with solder termination and reflow soldering process at 220°C for 60 seconds. Prototyping socket footprint mirrors device for ease of PCB design transition to direct soldering.

This IC socket is ideal for electronics prototyping, manufacturing testing, and small volume production requiring reliable, repeated device insertions without PCB redesign. It supports applications in industrial electronics, laboratory testing setups, and electronic manufacturing environments.
