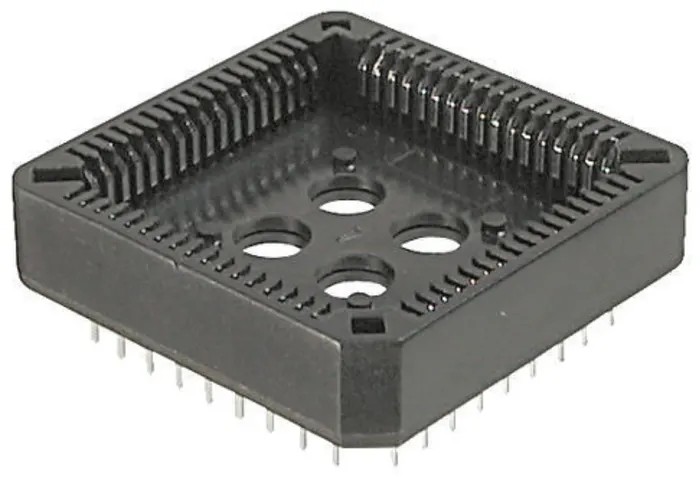

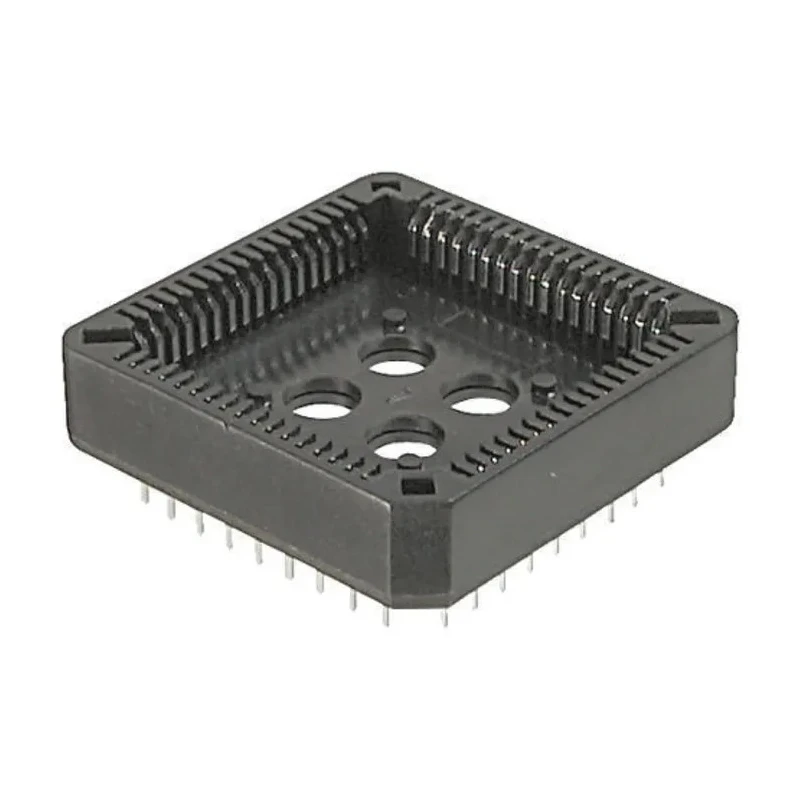

ASSMANN WSW 1.27 mm Pitch 68 Way DIP Through Hole PLCC IC Socket A-CCS 068-Z-T
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 100V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 1A |
| Model | A-CCS 068-Z-T |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | A-CCS 06 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 4 |
| Pitch | 1.27mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 68 |
| IC Socket Type | PLCC Socket |
| Device Mount Type | Through Hole |
Key Features
- The socket features 68 contacts with a pitch of 1.27 mm for precise alignment.
- Constructed with phosphor bronze contacts plated with tin over nickel for durable conductivity.
- Designed for through-hole device mounting with a straight orientation.
- Operates reliably within temperatures from -40°C to 105°C.
- The housing is made from polybutylene terephthalate, ensuring mechanical stability.
- Rated for 1 A current and voltage up to 100 V for flexible electrical applications.
- Meets RoHS standards for environmental safety and compliance.
- This PLCC IC socket is suitable for industrial electronics assembly and testing.
Product Description
ASSMANN WSW A-CCS 068-Z-T is a 1.27 mm pitch, 68 way through hole PLCC IC socket designed for secure and efficient electronic component connections in printed circuit boards.
With its phosphor bronze contacts having tin over nickel plating, it ensures excellent electrical conductivity and corrosion resistance. The straight orientation and through-hole mount type facilitate straightforward installation and mechanical stability on PCB assemblies.
The socket supports operation within an extensive temperature range from -40°C to 105°C, enabling reliable performance across varying industrial and environmental conditions.
The housing is manufactured using polybutylene terephthalate, providing durability and insulation for electronic applications. Rated at 1 A current and 100 V voltage, this socket suits medium power electronic circuits.
Compliant with RoHS standards, this component meets environmental and safety requirements, making it suitable for industrial, manufacturing, and electronics prototyping and production environments.
The socket features 68 contacts with 1.27 mm pitch for precise IC positioning. Phosphor bronze contact material ensures durability and excellent electrical connection. Tin over nickel plating extends corrosion resistance and contact reliability.
Through hole mounting improves mechanical strength on PCBs. Wide operating temperature range [-40°C to 105°C] suits extreme conditions. 1 A current and 100 V voltage rating support various electronic devices. Polybutylene terephthalate housing provides robust insulative support.
RoHS compliant for environmentally conscious manufacturing. This ASSMANN WSW PLCC socket is ideal for use in electronics manufacturing, industrial automation, and laboratory equipment requiring reliable IC mounting solutions.
Explore a wide selection of precision IC Sockets and related components on EnvMart to support your electronics design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The socket features a contact pitch of 1.27 mm, allowing for precise alignment of integrated circuits.
It can operate reliably within a maximum temperature of 105°C, making it suitable for various industrial conditions.
This model is rated for a current of 1 A and a voltage of up to 100 V, accommodating medium power electronic circuits.
The housing is made from polybutylene terephthalate, which provides mechanical stability and insulation.
The socket features 68 contacts, allowing for multiple connections in electronic applications.
Yes, it meets RoHS standards for environmental safety and compliance, making it suitable for environmentally conscious manufacturing.
It uses a solder termination type, which is common for securing connections on printed circuit boards.
The socket is designed with a straight orientation for through-hole mounting, facilitating straightforward installation.
The contacts are made of phosphor bronze, plated with tin over nickel for enhanced conductivity and corrosion resistance.
This model is designed for through-hole device mounting, providing strong mechanical support on PCBs.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
This socket is part of the A-CCS 06 series, which includes various IC socket configurations.
