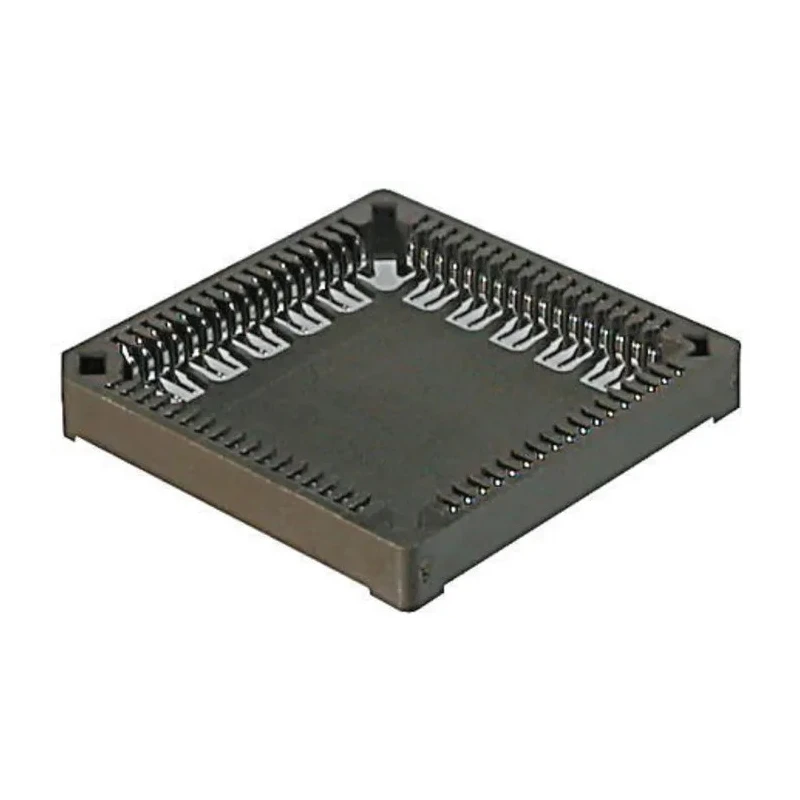

ASSMANN WSW 1.27 mm Pitch 32 Way Surface Mount PLCC IC Socket A-CCS 032-Z-SM

ASSMANN WSW A-CCS 032-Z-SM is a precision-engineered 32 Way Surface Mount PLCC IC Socket with a 1.27 mm pitch, designed specifically for reliable electrical connection of surface-mounted ICs in electronic assemblies. It supports a current of 1A and operates under a voltage rating of 100V, making it suitable for a broad range of industrial and commercial electronics applications.

Manufactured with high-quality phosphor bronze contacts plated with tin over nickel, this socket ensures excellent conductivity and corrosion resistance, which is essential for long-term durability and performance. The nylon housing provides mechanical strength and thermal endurance within the operating temperature range from -40°C to 105°C, thus supporting demanding environmental conditions.

The socket’s 32 contacts are arranged in 4 rows with a consistent 1.27 mm pitch and row pitch, facilitating compact and precise PCB layouts in sectors such as industrial tools, automation equipment, communication devices, and electronic controls. Its surface mount device (SMD) termination type allows for straightforward soldering on PCB surfaces, optimizing assembly efficiency.

RoHS compliance underscores its adherence to environmental safety standards, making it suitable for modern electronic manufacturing processes that emphasize sustainability and regulatory compliance.

Provides 32 contact points with a 1.27 mm pitch supporting efficient circuit connections. Phosphor bronze contacts with tin over nickel plating ensure durability and resistance to corrosion. Surface mount device type suitable for compact PCB assembly.

Operating temperature range from -40°C to 105°C for versatile environmental applications. Nylon housing offers mechanical strength and thermal stability. Rated for 1A current and 100V voltage for reliable electronic performance.

Straight orientation supports ease of manufacturing and assembly. Meets RoHS standards ensuring environmental compliance.

This IC Socket from ASSMANN WSW is ideal for industrial, laboratory, manufacturing, communication, and electronic control applications where precise, durable interconnections are critical. It enhances assembly reliability and product longevity in demanding use cases.
