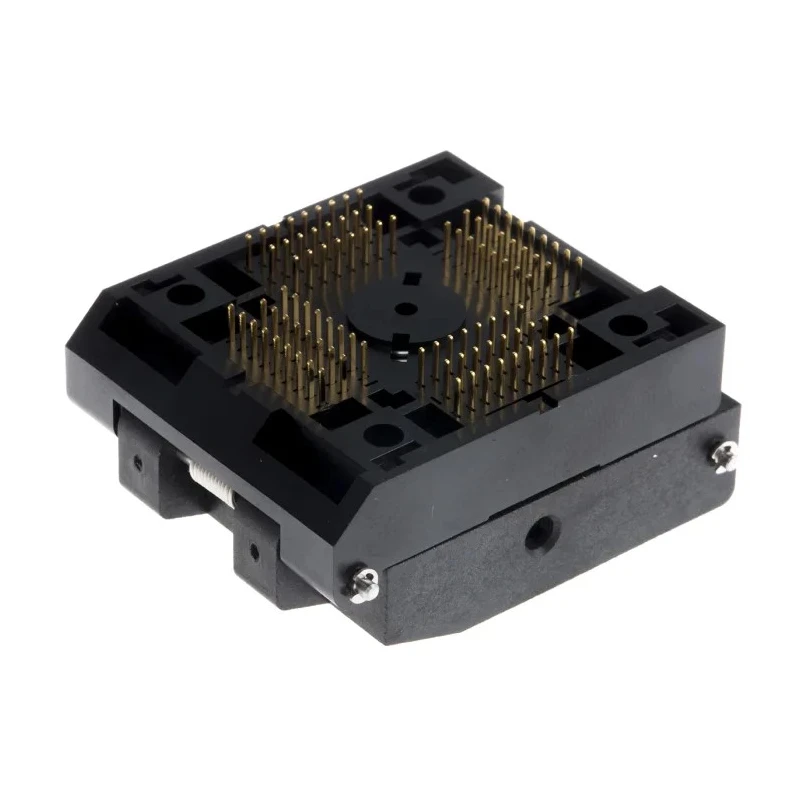

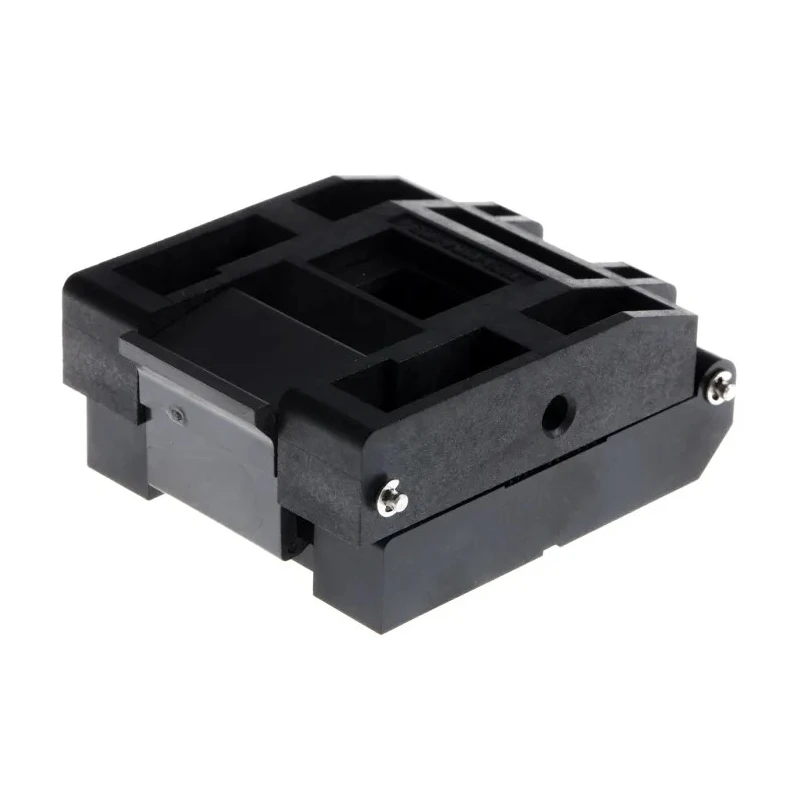

Yamaichi 0.5 mm Pitch 100 Way QFP Surface Test IC Socket IC51-1004-809

Yamaichi IC51-1004-809 is a 0.5 mm pitch, 100 way QFP surface test IC socket engineered for high precision and durability in testing environments. It is specifically designed for QFP packages, offering secure and reliable interfacing with integrated circuits during surface testing procedures.

The test socket includes two rows of 100 contacts made from beryllium copper alloy, plated with gold over nickel to enhance electrical conductivity and resistance to corrosion. Its surface mount design facilitates easy installation on printed circuit boards.

With an operating voltage rating of 700 volts and a temperature tolerance from -55°C to 170°C, this socket is suitable for demanding industrial, laboratory, and manufacturing applications that require robustness and high reliability.

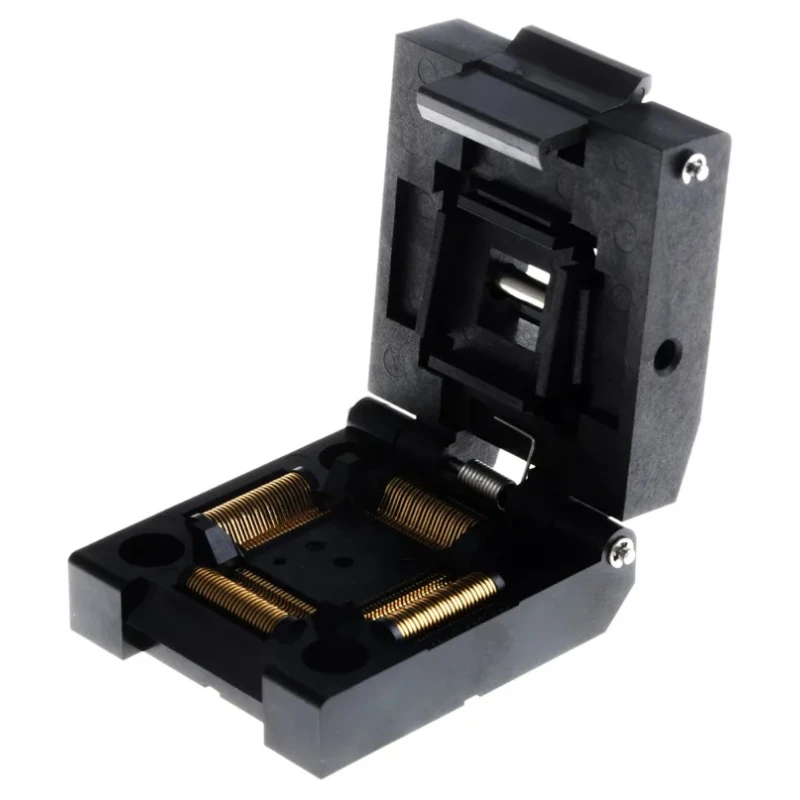

The socket utilizes a clamshell type spring-loaded hinged lid latch mechanism that provides easy and repeatable access to ICs under test while maintaining secure retention. The glass filled PES/PEI body materials contribute to mechanical strength and thermal stability.

This product is ideal for electronics manufacturing, quality assurance testing, and R&D labs engaged in semiconductor device validation and chip testing. The high durability specification of 10,000 insertions ensures a long operating lifespan, reducing replacement frequency.

This test socket supports 100 contacts arranged in 2 rows. The pitch of the socket is 0.5 mm, suitable for fine-pitch QFP devices. Contacts are made of beryllium copper alloy with gold over nickel plating for excellent conductivity and durability.

The socket operates at voltages up to 700V with a straight orientation. It features a glass filled PES/PEI body with spring loaded hinged lid for easy IC retention. Designed for surface mounting with solder termination type and supports device mount on surface.

Operating temperature range is from -55°C to 170°C ensuring usability in extreme conditions. Durability rated for up to 10,000 insertions, ensuring long service life. Manufactured in Japan ensuring high quality standards.

Choose Yamaichi IC sockets for reliable electronic testing solutions. Explore related IC Sockets and adapters on EnvMart to find compatible components for your testing and production needs.
