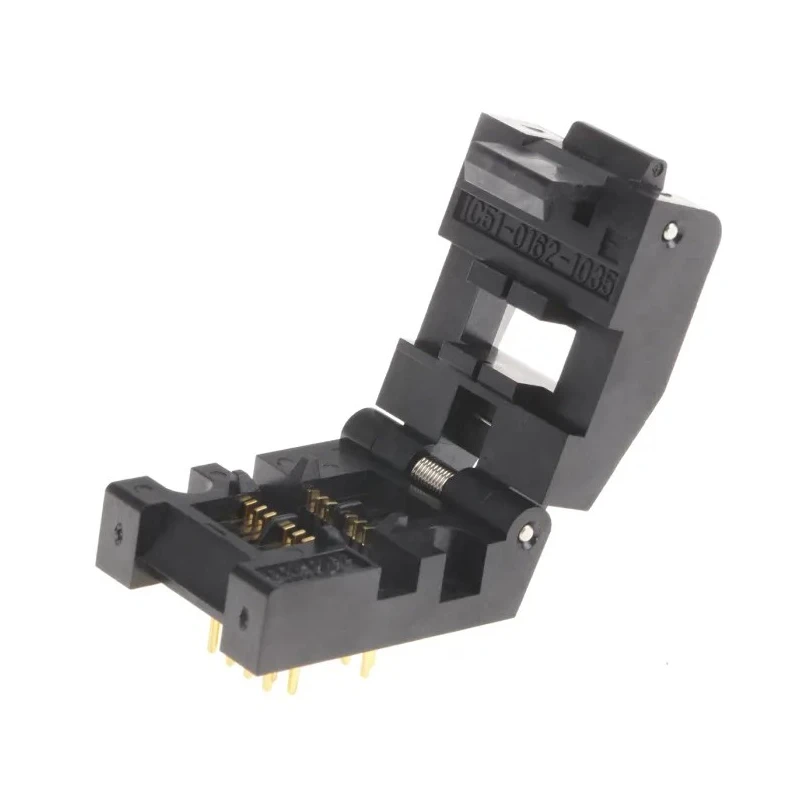

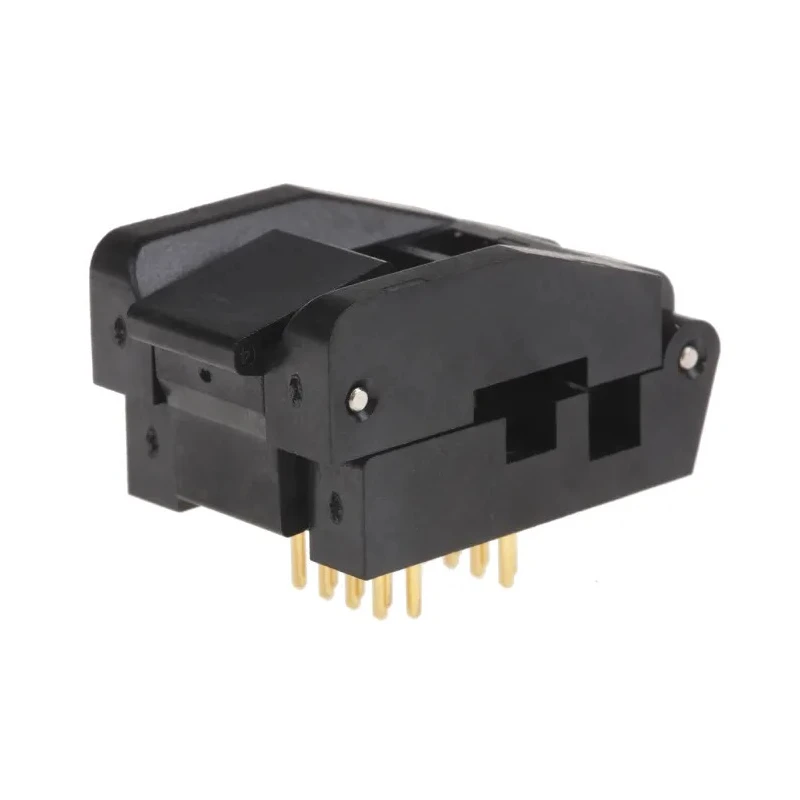

Yamaichi 1.27 mm Pitch 16 Way SOP Surface Test IC Socket IC51-0162-1035

Yamaichi IC51-0162-1035 is a high-quality 16 Way SOP Surface Test IC Socket with a 1.27 mm pitch, engineered to provide precise and efficient testing of SOP electronic components. This test socket is specifically designed to facilitate reliable electrical testing by offering consistent contact and minimal signal interference.

The body is fabricated from glass-filled polyetherimide (PEI), ensuring excellent mechanical strength and thermal stability in demanding industrial environments. Its contacts are made of beryllium copper alloy and plated with gold over nickel to optimize conductivity, corrosion resistance, and longevity.

This socket supports a maximum operating voltage of 700V and is rated for current up to 1 mA. It is engineered to function effectively across a wide temperature range from -55°C to 170°C, suitable for diverse conditions encountered in lab, manufacturing, and electrical test applications.

The design includes a spring-loaded hinged clamshell lid that securely holds ICs for repeatable and precise testing access, making it ideal for quality control and debugging in electronics manufacturing and research laboratories. It provides an insulation resistance of 1000 MΩ at 500 Vdc and contact resistance of 30 mΩ at 10 mA to ensure electrical integrity during tests.

With a durable construction rated for 10,000 insertions, it assures long-lasting usage with minimal maintenance. This surface mount test socket is essential in electronic component validation, PCB testing, and development environments where accurate IC interface is critical.

Country of origin: Philippines. Constructed with polyetherimide housing for high durability and thermal resistance. Features beryllium copper alloy contacts plated with gold over nickel for excellent conductivity. Supports a voltage rating of up to 700V and operates between -55°C to 170°C.

Designed with a spring-loaded clamshell hinged lid for secure IC retention and easy access during test procedures. Capable of withstanding 10,000 insertion cycles ensuring long-term reliability. Surface mount device mount type suitable for small outline package (SOP) IC testing.

Offers insulation resistance of 1000 MΩ at 500 Vdc and contact resistance of 30 mΩ at 10 mA. Explore EnvMart for more premium test sockets and electronics components to enhance your testing and manufacturing workflows.
