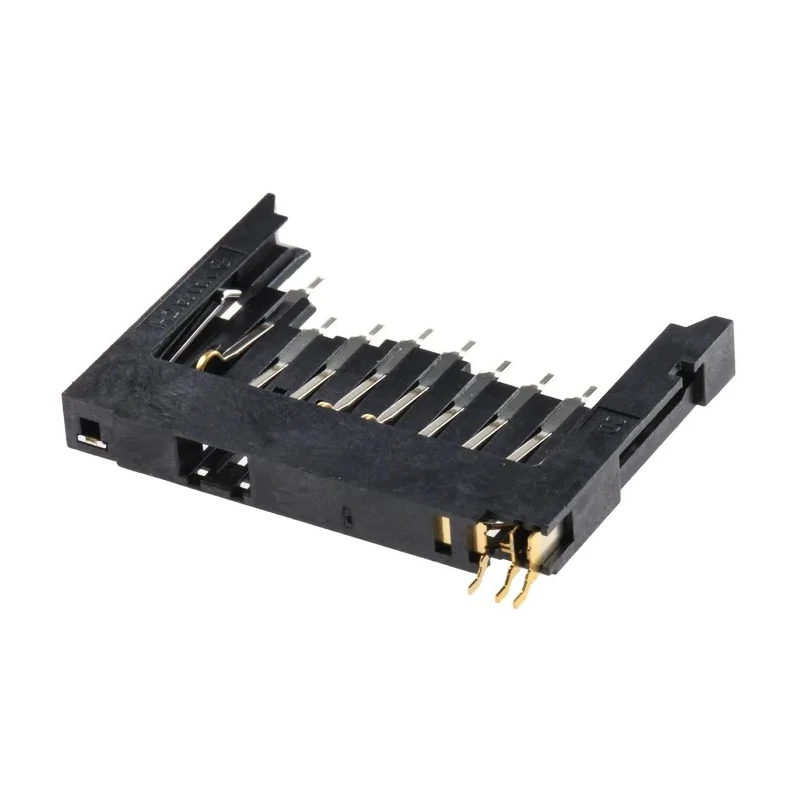

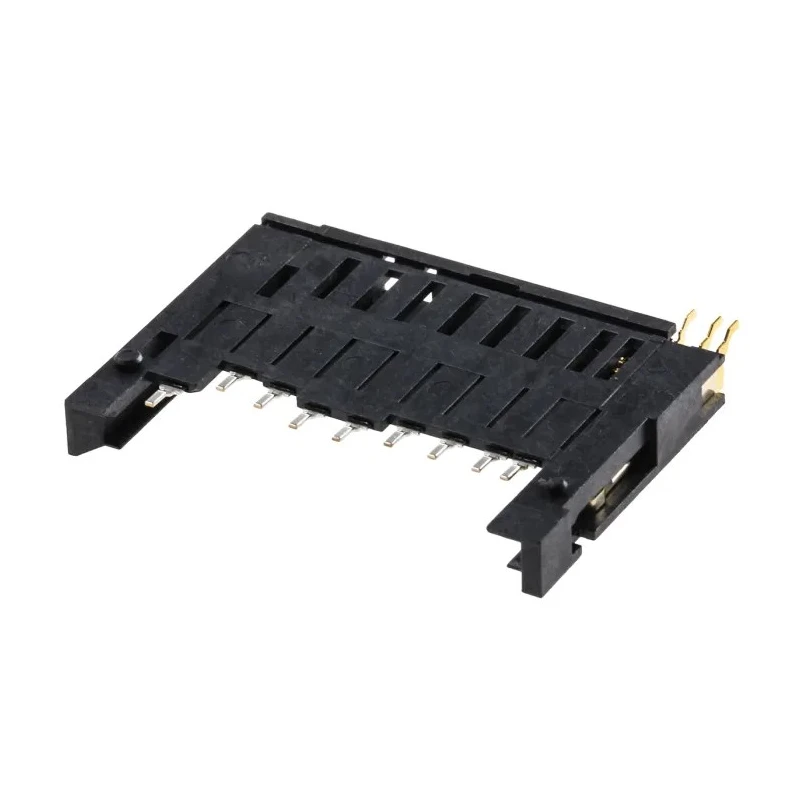

Yamaichi 9 Way Right Angle SD Memory Card Connector Solder Surface Mount FPS009-3202-BL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Yamaichi |
| Orientation | Right Angle |
| Model | FPS009-3202-BL |
| Gender | Female |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FPS |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Card Type | SD |
Key Features
- SD card type with female gender for compatibility with standard SD cards.
- Features 9 contacts arranged in a single row with 0.5mm pitch for reliable connectivity.
- Right angle orientation enables compact circuit board layout.
- Constructed with Liquid Crystal Polymer housing and phosphor bronze contacts plated with gold over nickel for durability.
- Operates reliably between -25°C to 85°C temperature range.
- Termination by solder ensures secure and stable solder joint.
- Incorporates card retention mechanism, card detector, and write protection switch.
- Designed for manual insertion/extraction with a rated 10,000 mating cycles for long service life.
Product Description
The Yamaichi FPS009-3202-BL is a 9 Way Right Angle SD Memory Card Connector designed specifically for reliable surface mount soldering applications. It is ideal for electronics manufacturing and repair requiring high-quality SD card interfacing. Featuring a female gender and 9 contacts arranged in a single row, this connector supports standard SD cards with a 0.5mm pitch and right angle orientation that facilitates compact PCB design.
The connector housing is made from Liquid Crystal Polymer, which offers high durability and thermal stability. Contacts are composed of phosphor bronze and plated with gold over nickel to ensure excellent conductivity and corrosion resistance. The connector reliably operates in harsh environments within a temperature range of -25°C to 85°C.
This memory card connector incorporates a card retention mechanism along with a card detector and a write protection switch that enhance functionality and protect data integrity. Its manual insertion and push-in/push-out design allow easy assembly and maintenance, supporting up to 10,000 mating cycles, which guarantees a long operational lifespan.
The 3-step sequential contacting mechanism provides secure electrical connections during card insertion with smooth operation. This product is suitable for use in industrial electronics, consumer devices, data storage equipment, and computer applications where SD card connectivity with robust mechanical and electrical performance is critical.
SD card and MMC connector compliant. Liquid Crystal Polymer (LCP) glass-filled insulator for enhanced durability. Phosphor bronze contacts with gold over nickel plating for superior conductivity. Manual insertion/extraction and push-in/push-out low profile design.
Card lock mechanism and write protection switch integrated. Suitable for use in industrial, consumer electronics, and data storage fields. Rated for 10,000 mating cycles ensuring long equipment life. Operates under -25°C to 85°C temperature environment.
Right angle orientation for space-saving PCB layout. Explore the complete Yamaichi connector range and related Memory Card Connectors at EnvMart for all your electronics assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a right angle orientation, which facilitates a compact layout on the circuit board.
It supports standard SD cards, designed specifically for reliable interfacing with such memory cards.
The contacts are arranged with a pitch of 0.5mm, ensuring reliable connectivity.
The housing is made from Liquid Crystal Polymer, while the contacts are composed of phosphor bronze plated with gold over nickel for enhanced conductivity and durability.
It operates reliably within a temperature range of -25°C to 85°C, making it suitable for various environments.
This connector features a total of 9 contacts arranged in a single row.
The connector utilizes a solder termination type, ensuring a secure and stable solder joint.
Yes, it incorporates a card retention mechanism, a card detector, and a write protection switch to enhance functionality and protect data integrity.
It is rated for up to 10,000 mating cycles, ensuring a long operational lifespan.
This model is designed for surface mount applications, suitable for various electronic devices.
This connector has a female gender, designed for compatibility with standard SD cards.
The connector is manufactured in India.
