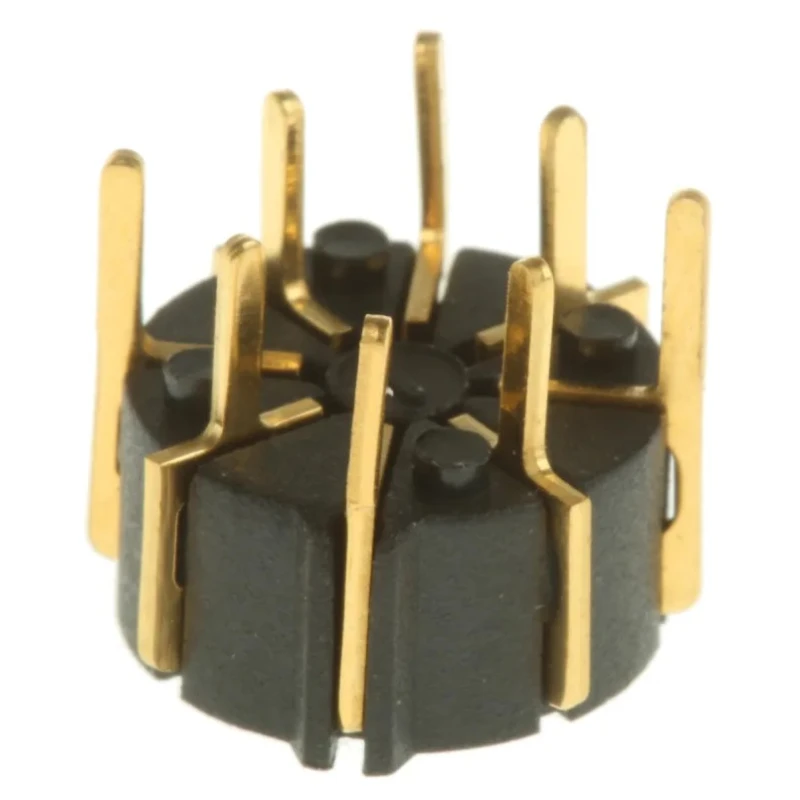

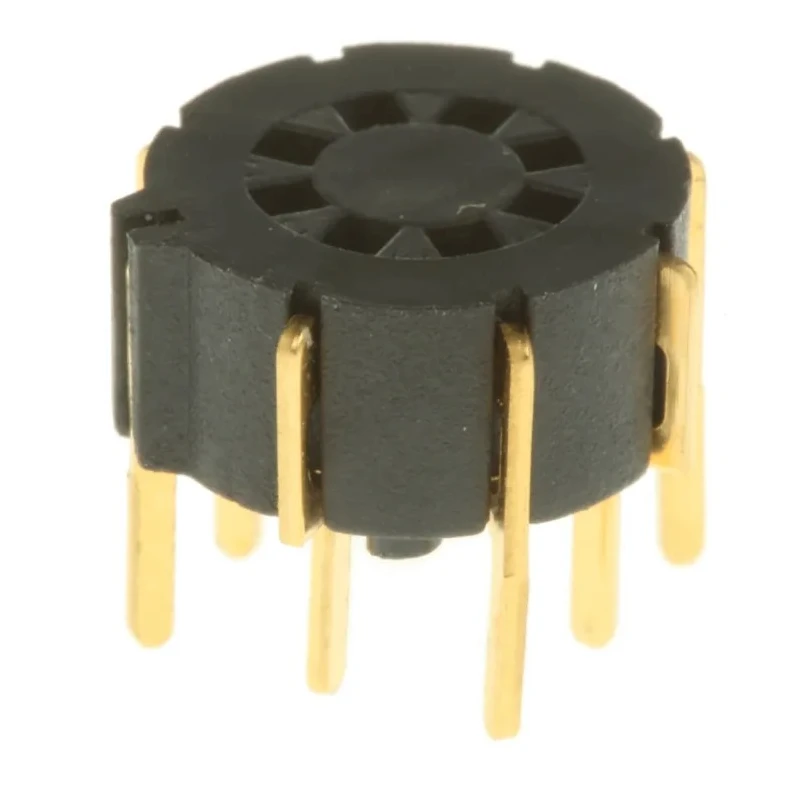

Winslow 1.27 mm Pitch 8 Way Through Hole Transistor IC Socket W3401G

Winslow W3401G 8 Way Through Hole Transistor IC Socket is a high-quality IC socket designed for electronic applications requiring robust transistor connections on PCBs.

This transistor socket supports an 8-contact configuration with a 1.27 mm pitch spacing, making it ideal for precision mounting of transistor components in industrial and commercial electronic assemblies.

The socket features phosphor bronze contacts plated with gold to provide excellent electrical conductivity and corrosion resistance for reliable long-term use. Its mounting style is surface mount combined with through-hole socket type, offering sturdy mechanical strength and ease of soldering during PCB assembly processes.

The housing is composed of durable polybutylene terephthalate thermoplastic, molded in black, which ensures excellent insulation and mechanical protection even under harsh thermal environments ranging from -55°C to +150°C.

This product is suitable for applications in electronics manufacturing, industrial control systems, laboratory instrumentation, and other scenarios requiring dependable transistor connectivity.

The socket features 8 contacts suitable for transistor ICs. It supports a rated current of 1A ensuring efficient electrical conduction. 1.27 mm contact pitch allows precise through-hole mounting. Contacts are made of phosphor bronze with gold plating for enhanced durability.

Mounting is surface type with through-hole socket design for secure placement. Operating temperature range spans from -55°C up to 150°C. The housing is made from polybutylene terephthalate with a molded black thermoplastic finish.

Termination is designed for solder to guarantee solid electrical connections. The socket has a straight orientation suitable for PCB layouts requiring alignment. Designed and manufactured in the United Kingdom ensuring quality standards.
