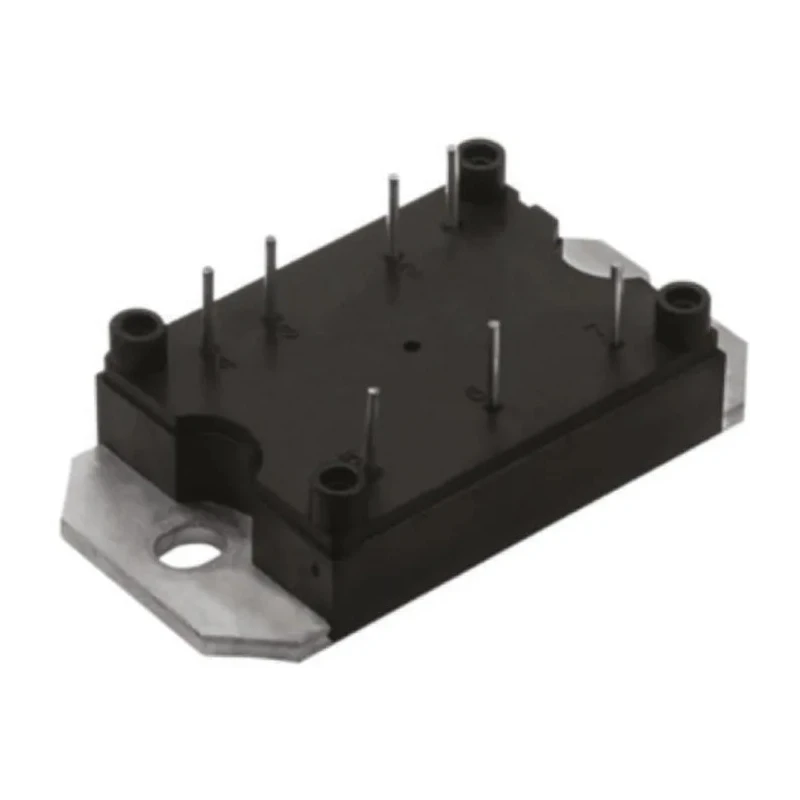

Vishay 3-Phase Bridge Rectifier Panel Mount MT PB Package 1600 V 398 A 8-Pin Single VS-70MT160PBPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 16mm |
| Length | 63.5mm |
| Model | VS-70MT160PBPBF |
| Width | 32.5mm |
| Mount Type | Panel |
| Series | VS-70MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | MT PB |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-5364PBrand: VishayManufacturers Part No.: VS-70MT160PBPBF |
| Pin Count | 8 |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Peak Reverse Current Ir | 5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 398A |
| Forward Current If | 75A |
| Peak Forward Voltage Vf | 1.45V |
Key Features
- Designed for panel mounting with a low profile, enhancing thermal management.
- Operational temperature range from -40°C to 150°C ensures reliable functionality in harsh environments.
- Forward current rating of 75 A supports high power applications.
- Flat pin round-pin (PB) design allows direct heatsink mounting and PCB soldering.
- Three-phase single bridge configuration converts AC to DC efficiently.
- Peak forward voltage of 1.45 V reduces power losses during operation.
- Minimal peak reverse current of 5 mA improves overall device reliability.
- Compact dimensions of 63.5 mm length, 32.5 mm width, and 16 mm height optimize space usage.
Product Description
Vishay VS-70MT160PBPBF is a 3-phase bridge rectifier designed for panel mounting applications. It features the MT PB package equipped with 8 pins in a single bridge configuration, ideal for full-wave rectification in power supplies and industrial equipment.
This device supports a peak reverse repetitive voltage of 1600 V and a peak non-repetitive forward surge current of up to 398 A, making it suitable for demanding power semiconductor applications. The forward current rating of 75 A and a low peak forward voltage of 1.45 V contribute to efficient power conversion with minimal losses.
Operating reliably within a temperature range of -40°C minimum to 150°C maximum, the rectifier is well-suited for harsh industrial and commercial environments. Its low-profile package permits direct mounting to heatsinks, facilitating effective thermal management and system integration.
The Vishay VS-70MT160PBPBF’s flat pin technology allows for easy soldering and mechanical stability on PCBs. Its compact dimensions (63.5mm length, 32.5mm width, 16mm height) aid in space-constrained setups without compromising durability and heat dissipation.
This bridge rectifier is an essential component in industries such as manufacturing, power electronics, HVAC systems, and laboratory power supplies, providing robust AC to DC conversion for three-phase input signals.
Designed for panel mounting with a low profile, enhancing thermal management. Operational temperature range from -40°C to 150°C ensures reliable functionality in harsh environments. Forward current rating of 75 A supports high power applications.
Flat pin round-pin (PB) design allows direct heatsink mounting and PCB soldering. Three-phase single bridge configuration converts AC to DC efficiently. Peak forward voltage of 1.45 V reduces power losses during operation.
Minimal peak reverse current of 5 mA improves overall device reliability. Compact dimensions of 63.5 mm length, 32.5 mm width, and 16 mm height optimize space usage. Explore more Vishay power semiconductor components and accessories in the Electronics & Electricals category on EnvMart for enhanced industrial performance and reliability.
Explore more products in our Bridge Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this model is 1600 V, making it suitable for high voltage applications.
This bridge rectifier has a forward current rating of 75 A, which supports high power applications.
The dimensions of this model are 63.5 mm in length, 32.5 mm in width, and 16 mm in height.
It operates reliably within a temperature range of -40°C to 150°C, suitable for harsh environments.
The flat pin round-pin design allows for direct heatsink mounting and easy PCB soldering, enhancing mechanical stability.
The peak forward voltage is 1.45 V, which helps to reduce power losses during operation.
This model can handle a peak non-repetitive forward surge current of up to 398 A, making it effective for demanding applications.
It is designed for panel mounting, which enhances thermal management and integration into systems.
The minimal peak reverse current is 5 mA, contributing to the overall reliability of the device.
This bridge rectifier is suitable for applications in manufacturing, power electronics, HVAC systems, and laboratory power supplies.
The package type is MT PB, which is designed for efficient thermal management and space optimization.
This model features 8 pins, which facilitates its connection in various applications.
