| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BAS70LS-QYL |
| Mount Type | Surface |
| Series | BAS70LS-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 70mA |
| Peak Reverse Repetitive Voltage Vrrm | 70V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA |
| Maximum Forward Voltage Vf | 380mV |

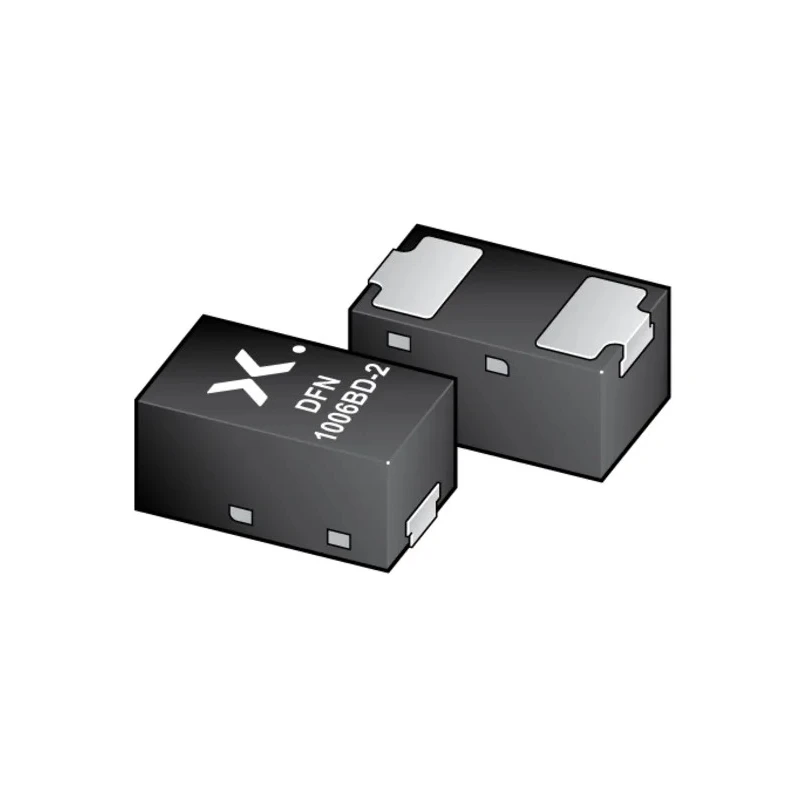

Nexperia BAS70LS-QYL is a Schottky Barrier Diode designed with high efficiency and reliability in mind. It comes in a leadless ultra-small DFN1006BD-2 (SOD882BD) surface mount package featuring side-wettable flanks that allow excellent solder joint inspection and secure mounting.
This diode offers a maximum continuous forward current of 70 mA and a peak reverse repetitive voltage rating of 70 volts, making it suitable for low voltage power management and switching applications in industrial, automotive, and consumer electronics.
With a low forward voltage of 380 mV, the BAS70LS-QYL minimizes power dissipation and improves energy efficiency in circuits. It supports a wide operating temperature range from -55°C up to 150°C, enabling functionality in demanding environments.
Its peak non-repetitive forward surge current of 200 mA ensures robust transient handling capability. The device conforms to RoHS standards and is qualified to the AEC-Q101 automotive standard, making it recommended for automotive electronics use.
The diode's low leakage current and fast switching speed reduce losses and enhance performance in power rectification and signal processing roles. Its package design facilitates automatic optical inspection (AOI), improving production quality and yield.
Maximum continuous forward current: 70 mA. Peak reverse repetitive voltage: 70 V. Package type: DFN1006BD-2 surface mount device. Forward voltage drop: 380 mV. Operating temperature: -55°C to 150°C. Peak forward surge current: 200 mA.
Compliant with RoHS directives. AEC-Q101 automotive standard qualified. Low leakage current and high switching speed. Side-wettable flanks for automatic optical inspection.
This component is ideal for use in electronics manufacturing sectors including automotive systems, telecommunications, power supplies, and other industrial and commercial electronic applications.
