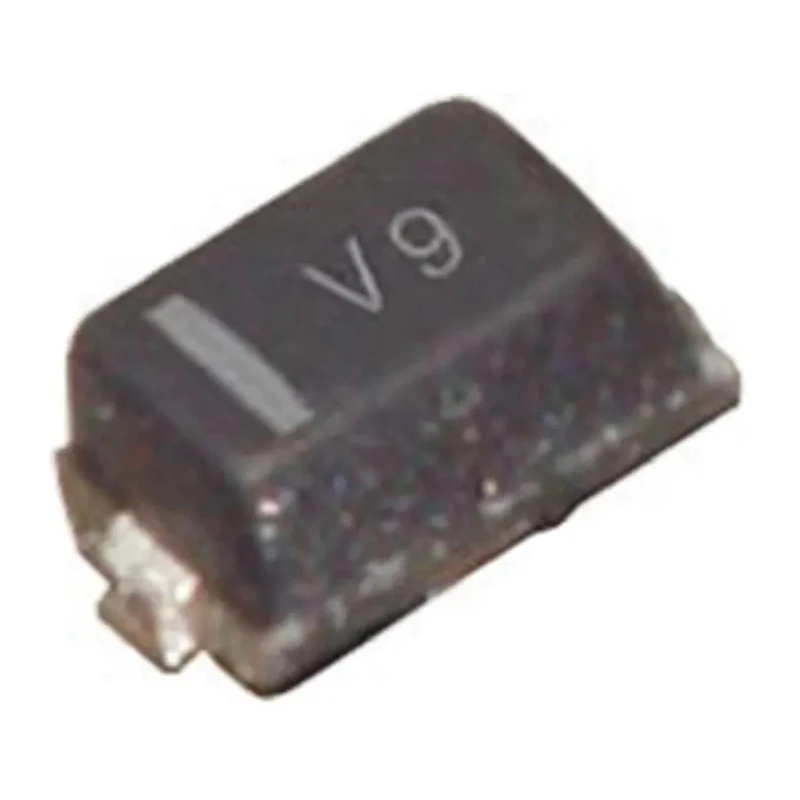

onsemi Schottky Barrier Diode 70 V 70 mA Surface Mount SOD-923 NSR0170P2T5G

onsemi NSR0170P2T5G Schottky Barrier Diode is a precision surface mount power rectifier employing the Schottky barrier principle, designed to deliver an optimal balance between low forward voltage drop and minimal reverse leakage current.

Its 70 V peak reverse voltage and 70 mA continuous forward current capabilities make it suitable for low voltage, high frequency switch mode power supplies and polarity protection functions.

The diode package is a miniature SOD-923 form factor, with dimensions of 0.85 mm length, 0.65 mm width, and 0.41 mm height, enabling compact PCB layouts in space-constrained applications.

Designed to automotive grade standards (AEC-Q101) and Pb-Free, this diode ensures high reliability in demanding environments including automotive, industrial electronics, and general electronic circuitry.

Key features include a maximum forward voltage drop of 730 mV and a maximum operating temperature up to 150°C, withstanding harsh thermal conditions.

The epoxy moulded case protects internal components and facilitates automatic assembly processes. The diode's low peak reverse current of 3 μA helps maintain energy efficiency and circuit integrity.

Typical applications include freewheeling diodes, polarity protection, and low voltage rectification duties in communication devices, power management, and automotive electronics. This diode supports a maximum continuous forward current of 70 mA.

It is rated for a peak reverse repetitive voltage of 70 V. The diode features a small footprint with a SOD-923 package type and 2 pins. Operating temperature ranges from -55°C up to 150°C. The maximum forward voltage drop is 730 mV, providing efficient low voltage drop characteristics.

It is Pb-Free and meets AEC-Q101 automotive standards. The compact dimensions include 0.85 mm length, 0.65 mm width, and 0.41 mm height. The peak reverse current is only 3 μA, ensuring minimal leakage. The diode's epoxy moulded case provides stress protection and supports automated board assembly.

Ideal for industrial, automotive, and electronic circuit protection applications. Browse the wide range of Schottky Barrier Diodes and rectifiers available at EnvMart for reliable and high-performance semiconductor solutions.
