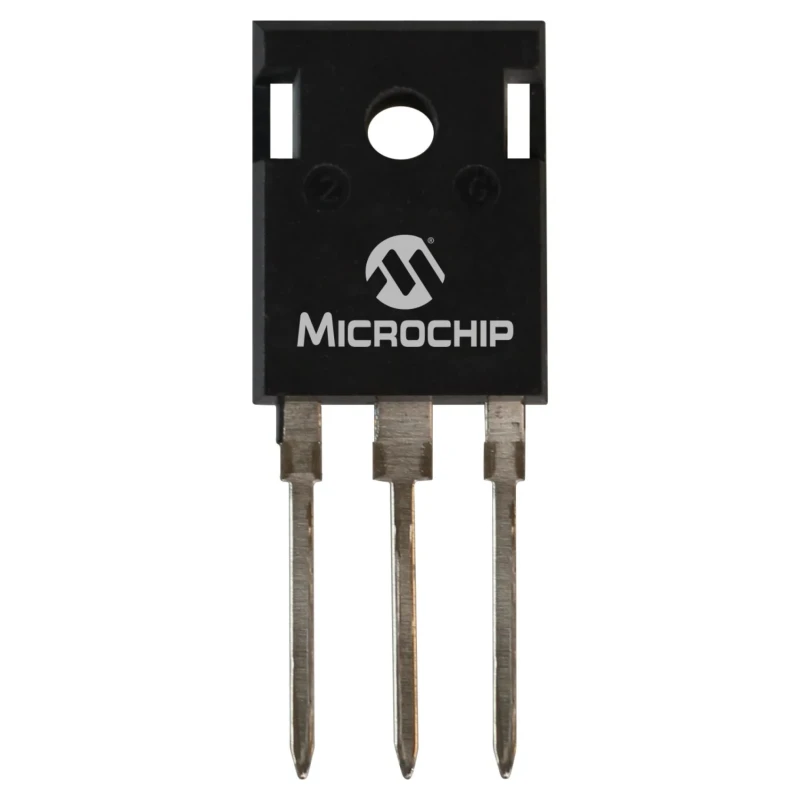

Microchip 1200 V 30 A Schottky Barrier Diode TO-247 Mount MSC030SDA120BCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC030SDA120BCT |
| Mount Type | Through Hole |
| Series | MSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- Features a through-hole mount type and TO-247 package style.
- Maximum continuous forward current of 30 amperes ensures robust load handling.
- Peak reverse repetitive voltage rating of 1200 volts suitable for demanding circuits.
- Low forward voltage drop of 1.8 volts reduces power loss and heat generation.
- Wide operating temperature range from -55°C to 175°C for harsh environments.
- Rated peak non-repetitive forward surge current of 75 amperes for transient resilience.
- RoHS compliant design meets environmental and safety standards.
- Ideal for power conversion, rectification, and parallel diode applications.
Product Description
Microchip MSC030SDA120BCT is a high-performance Schottky Barrier Diode designed for electronic power and rectifier applications. It features a TO-247 through-hole package that facilitates easy mounting and efficient heat dissipation in power circuits. With a peak reverse repetitive voltage of 1200 volts and a maximum continuous forward current of 30 amperes, this diode is suited for high voltage and current demands encountered in industrial and commercial electronic systems.
The diode operates effectively across a broad temperature range from -55°C to 175°C, making it reliable under extreme environmental conditions. It exhibits low forward voltage drop at 1.8 volts which minimizes conduction losses and improves overall system efficiency. The diode also supports a 75 A peak non-repetitive forward surge current capability, thus providing protection against transient high current conditions.
This component is compliant with RoHS directives, assuring usage sustainability and compliance with environmental regulations. Typical applications include power supply circuits, power conversion modules, parallel diode configurations, and other electronic devices requiring fast switching and low loss characteristics.
Features a through-hole mount type and TO-247 package style. Maximum continuous forward current of 30 amperes ensures robust load handling. Peak reverse repetitive voltage rating of 1200 volts suitable for demanding circuits.
Low forward voltage drop of 1.8 volts reduces power loss and heat generation. Wide operating temperature range from -55°C to 175°C for harsh environments. Rated peak non-repetitive forward surge current of 75 amperes for transient resilience.
RoHS compliant design meets environmental and safety standards. Ideal for power conversion, rectification, and parallel diode applications.
Applicable industries and use cases include industrial electronics, power management, renewable energy systems, HVAC controls, automotive electronics excluding specific automotive standards, and laboratory power supplies. This diode enhances the performance and efficiency of electronic assemblies by ensuring low forward voltage drop and zero recovery switching.
Explore more Electronic Components and Discrete Semiconductors on EnvMart to find compatible parts and complementary products for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the MSC030SDA120BCT is 30 amperes.
This diode has a peak reverse repetitive voltage rating of 1200 volts, making it suitable for demanding circuits.
The forward voltage drop of this diode is 1.8 volts, which helps reduce power loss and heat generation.
It operates effectively across a wide temperature range from -55°C to 175°C, allowing for reliability in harsh environments.
This model features a TO-247 package type, which facilitates through-hole mounting.
The rated peak non-repetitive forward surge current is 75 amperes, providing resilience against transient conditions.
Yes, this diode is RoHS compliant, meeting environmental and safety standards.
It is ideal for power conversion, rectification, and parallel diode applications in various electronic systems.
Applicable industries include industrial electronics, power management, renewable energy systems, HVAC controls, and automotive electronics.
This diode belongs to the MSC0 series, which includes high-performance Schottky Barrier Diodes.
The MSC030SDA120BCT is manufactured in India.
This model is a Schottky rectifier, known for its fast switching and low loss characteristics.
