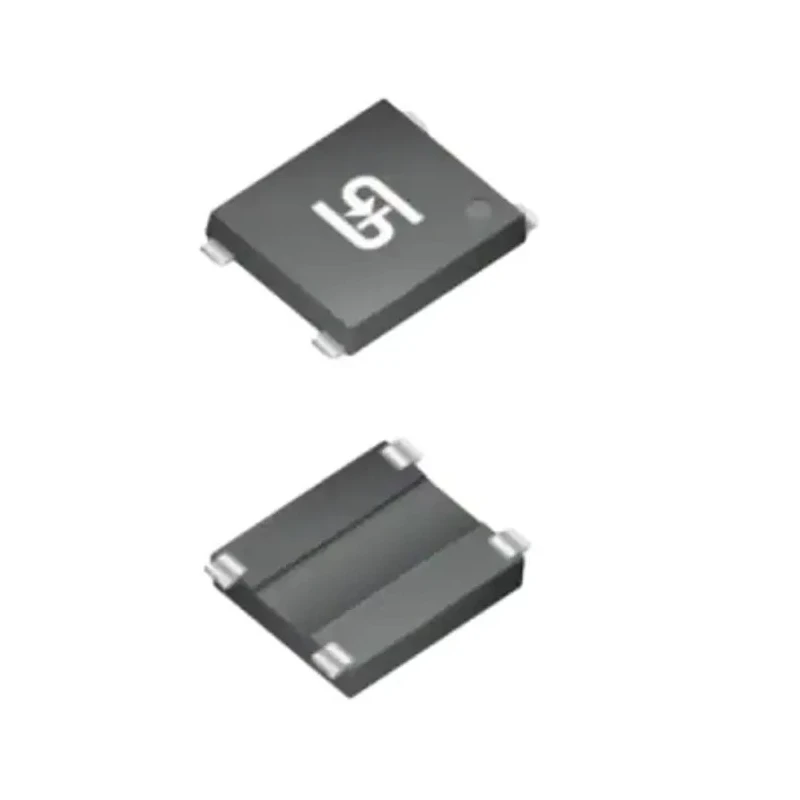

Taiwan Semiconductor Bridge Rectifier 600 V 90 A Surface Mount Quad 4-Pin YBS2205G

Taiwan Semiconductor YBS2205G Bridge Rectifier is a reliable discrete semiconductor device designed for surface mounting. It features a quad configuration with 4 pins and is housed in the YBS package, suitable for industrial and commercial electronic assemblies.

This bridge rectifier offers a peak reverse repetitive voltage of 600 V and a forward current of 2.2 A, with a peak non-repetitive forward surge current of 90 A, making it ideal for high-reliability power conversion applications including switching mode power supplies (SMPS), adapters, and lighting control systems.

The device utilizes a glass passivated chip junction to enhance durability and electrical performance. It operates effectively in a wide temperature range from -55°C to 150°C, supporting various environmental conditions. The typical forward voltage is 0.95 V, and it has negligible peak reverse current (0 μA), resulting in efficient power handling.

This bridge rectifier complies with the IEC 61249-2-21, UL, and RoHS standards and is halogen-free, ensuring safety and environmental compliance. Additionally, it is moisture sensitivity level 1 certified per J-STD-020, suitable for modern automated placement and manufacturing processes.

With a compact length of 6.7 mm and height of 8.6 mm, it is designed for automated PCB assembly lines and offers reliable low-cost construction utilizing molded plastic encapsulation techniques.

Glass passivated chip junction ensures high reliability. Suitable for switching mode power supplies, adapters, and lighting applications. Compact YBS package with dimensions 6.7 mm length and 8.6 mm height. Maximum operating temperature up to 150°C and minimum down to -55°C.

Low forward voltage of 0.95 V and zero peak reverse current ensures efficient operation. High surge current handling capacity of 90 A for peak non-repetitive events. Moisture sensitivity level 1 compliant with J-STD-020.

RoHS compliant and halogen-free according to IEC 61249-2-21 standards.

This Taiwan Semiconductor Bridge Rectifier YBS2205G is ideal for industrial, commercial, and laboratory electronic applications requiring robust and compact rectifier performance. Explore more components in our Bridge Rectifiers category on EnvMart for your electronics design needs.
