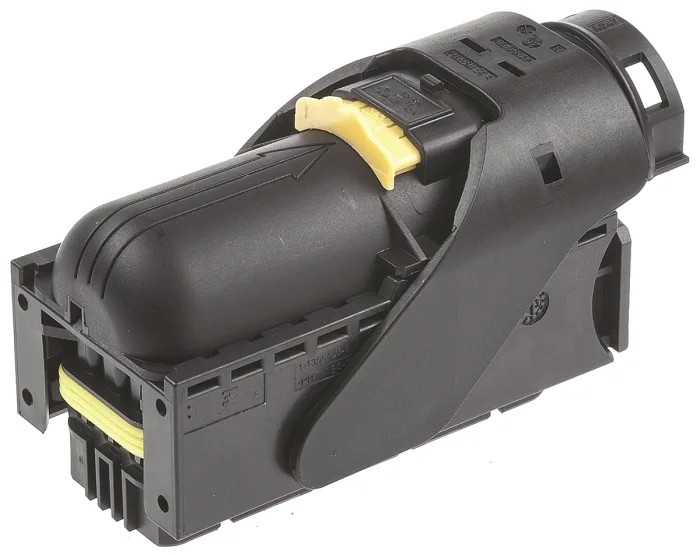

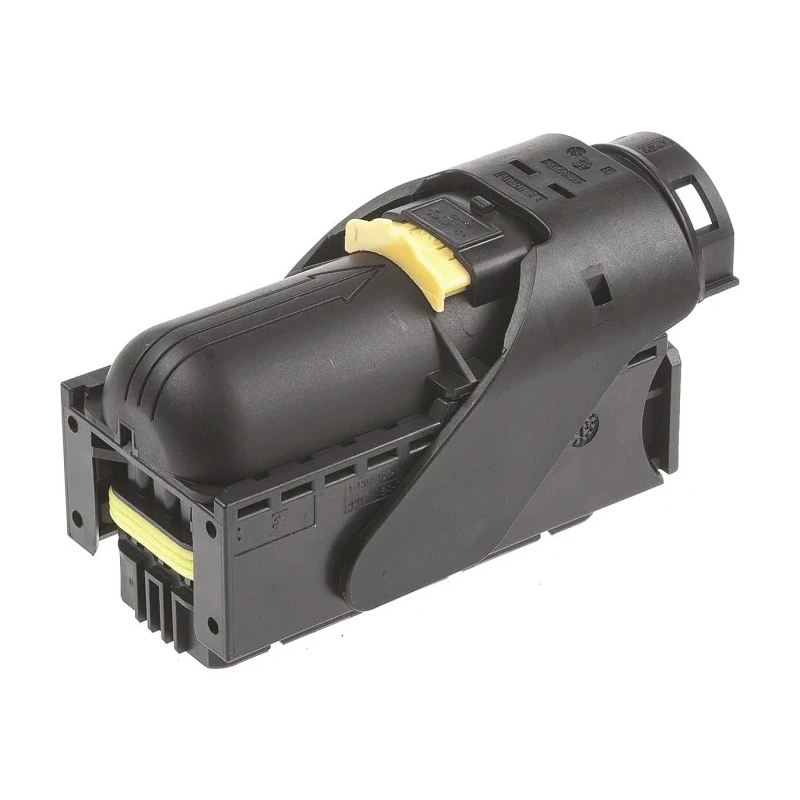

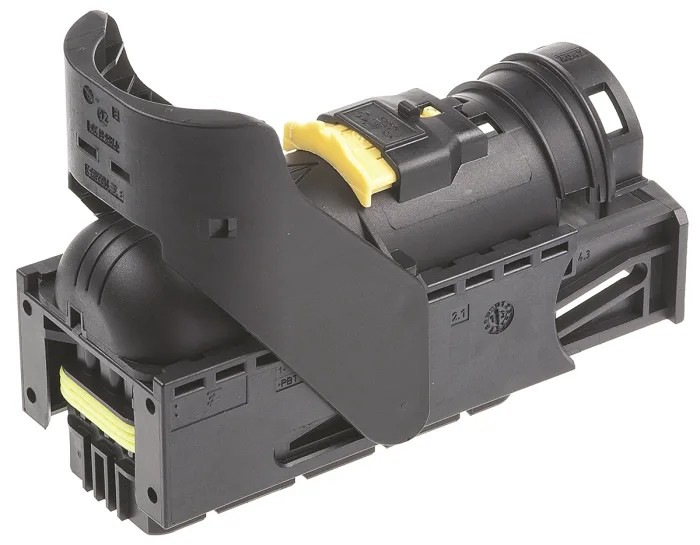

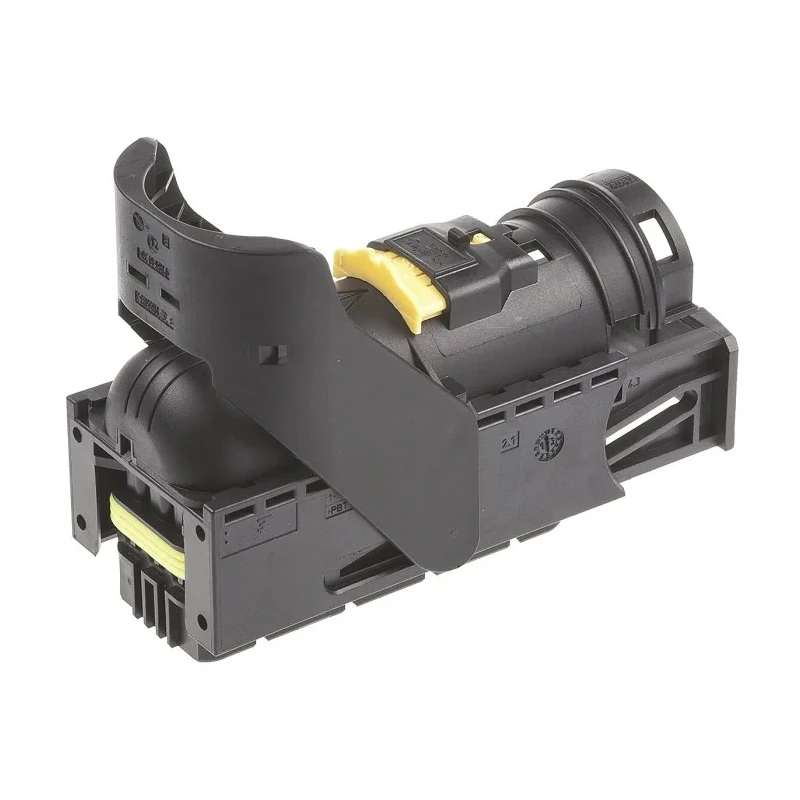

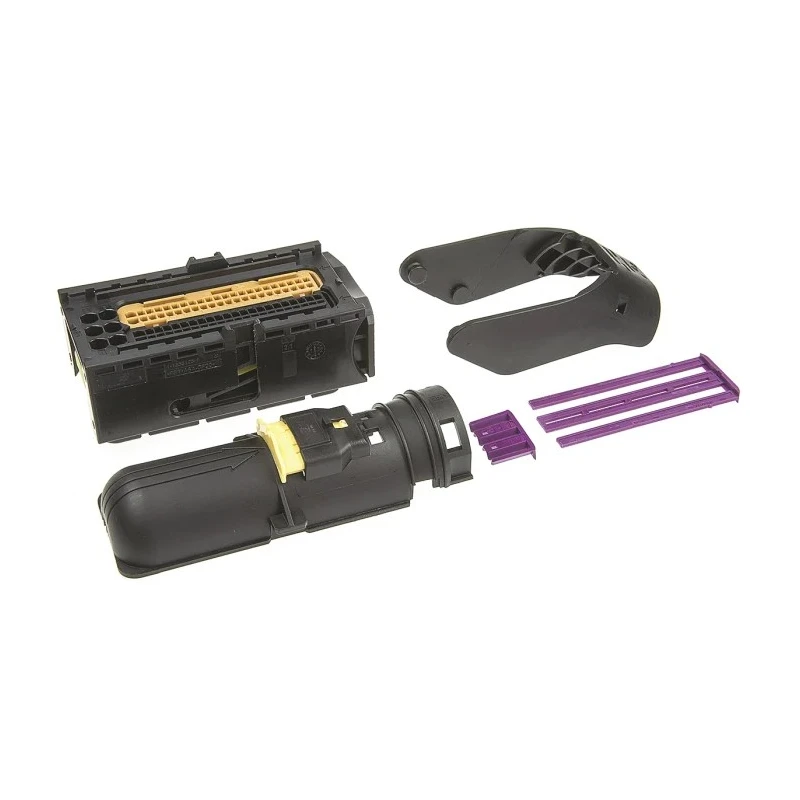

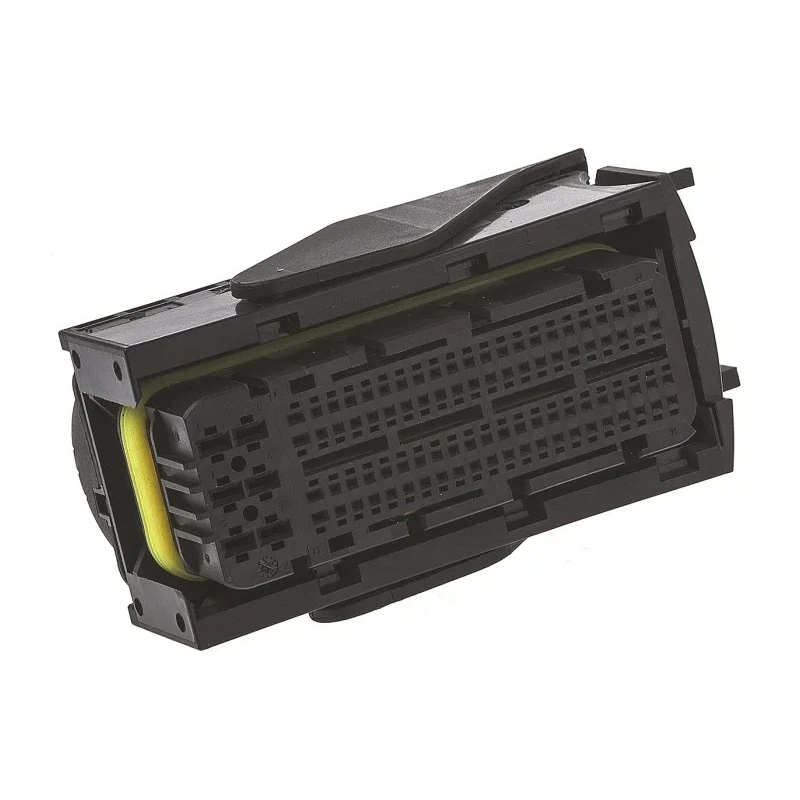

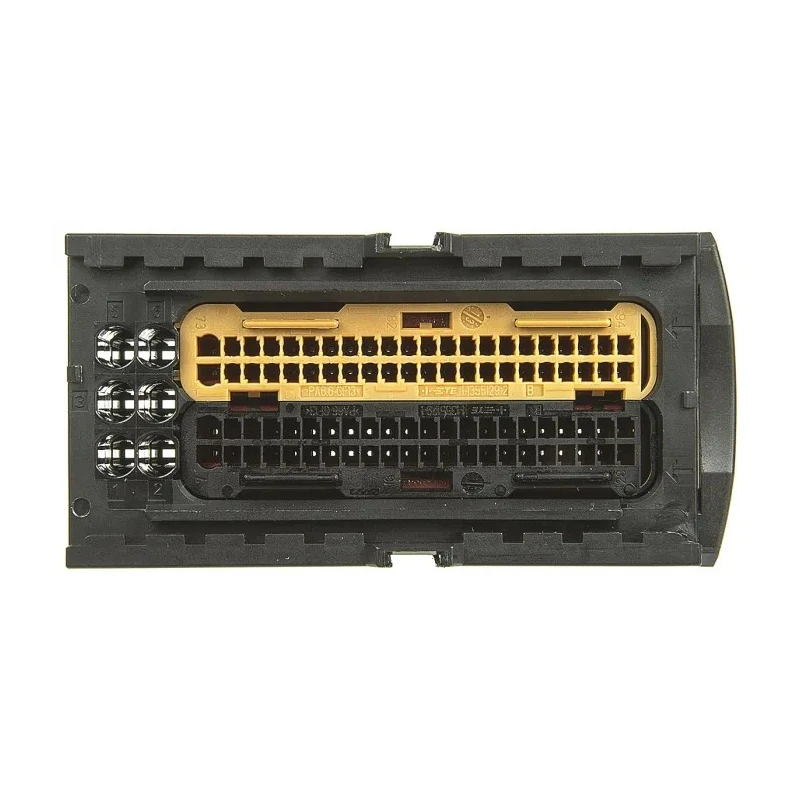

TE Connectivity Micro Quadlok System Automotive Connector Female, Black and Brown Cable, 94 Way Crimp Termination 284743-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black, Brown |
| Height | 97mm |
| Model | 284743-1 |
| Depth | 74.3mm |
| Width | 46mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 4 |
| Number of Contacts | 94 |
| • Pitch | 2.54mm |
Key Features
- Designed for automotive applications requiring high density and robust connectors.
- Features 94 contacts arranged in 4 rows with a pitch of 2.54 mm.
- Termination type is crimp with female gender contacts for cable mounting.
- Constructed from durable nylon housing material with black and brown colors.
- Operates reliably from -40°C to 125°C for a wide range of environments.
- Compact dimensions measuring 97 mm height, 46 mm width, and 74.3 mm depth.
- Provides polarization and keying to prevent mismating during assembly.
- Integral terminal locking force ensures secure contact retention within housing.
Product Description
TE Connectivity 284743-1 Micro Quadlok System (MQS) Automotive Connector is a high density, compact connector designed for demanding automotive electrical applications. Featuring a female connector housing with 94 contacts arranged in 4 rows and a 2.54 mm pitch, it supports crimp termination for secure cable connections in black and brown cable combinations.
The connector housing is made of robust nylon material, offering durability and reliability in harsh automotive environments. It operates effectively across a wide temperature range, from -40°C up to 125°C, making it suitable for powertrain systems, safety and security electronics, driver information, and body and chassis system applications.
Designed with polarization and keying features, the connector prevents incorrect mating, ensuring safe and reliable electrical connections. Its integral terminal locking force, provided by stainless steel locking lances, secures contacts firmly within the housing. For applications requiring environmental protection, sealed versions and additional wire seals are available to provide waterproof connections.
The Micro Quadlok System’s compact and robust design enhances installation efficiency and long-term performance in automotive electrical systems. Its dimensions are approximately 97 mm in height, 46 mm in width, and 74.3 mm in depth, allowing for integration in space-constrained areas within vehicles.
High density 94-way female automotive connector with crimp termination. Compact nylon housing construction with black and brown cable colors. Operating temperature range from -40°C to 125°C for automotive environments. Polarization and keying features for prevention of mismating.
Integral primary terminal locking force with stainless steel locking lances. Multiple rows (4) and 2.54 mm pitch enable efficient wiring layout. Optional sealed versions for waterproof automotive connector applications. Applications include powertrain systems, safety, security, chassis, and body electronics.
This connector is a reliable choice for automotive manufacturers and assemblers seeking a robust and efficient connection solution. EnvMart offers this part under the TE Connectivity brand with model number 284743-1, ensuring quality and compatibility with automotive electrical systems.
Explore more products in our Automotive Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features 94 contacts arranged in 4 rows with a pitch of 2.54 mm.
It operates reliably from -40°C to 125°C, making it suitable for various automotive environments.
The housing is constructed from durable nylon material, available in black and brown colors.
This automotive connector uses crimp termination for secure cable connections.
The dimensions are approximately 97 mm in height, 46 mm in width, and 74.3 mm in depth.
Yes, it includes polarization and keying features to prevent incorrect mating during assembly.
It is designed for powertrain systems, safety and security electronics, driver information, and body and chassis system applications.
It features an integral terminal locking force provided by stainless steel locking lances to secure contacts firmly within the housing.
Yes, sealed versions and additional wire seals are available to provide waterproof connections.
This model is a female connector designed for cable mounting.
The connector is manufactured in India.
It belongs to the Micro Quadlok System series of automotive connectors.
