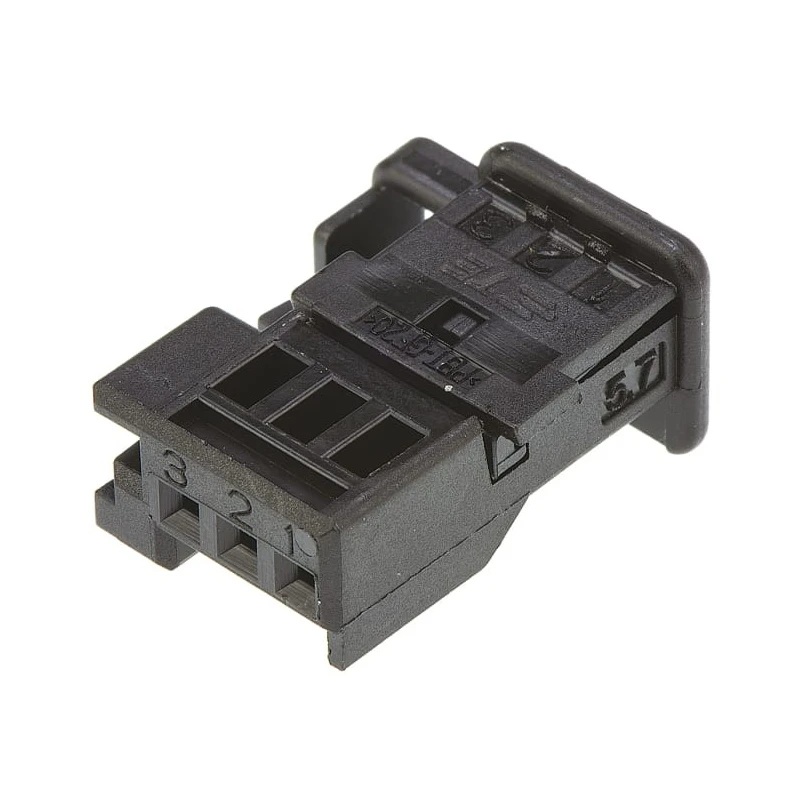

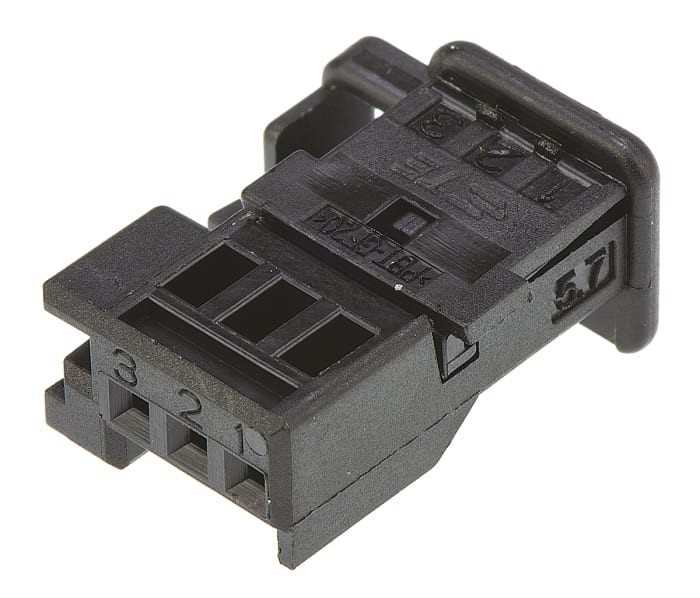

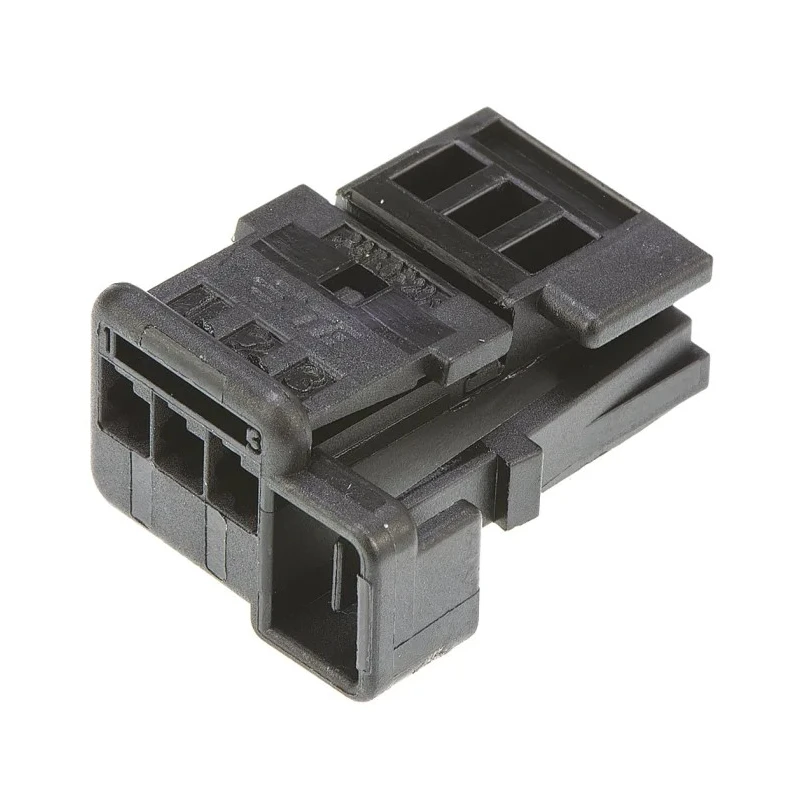

TE Connectivity Micro Quadlok System Automotive Connector Female Black Cable 3 Way Crimp Termination 953697-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 17.6mm |
| Model | 953697-1 |
| Depth | 17.6mm |
| Width | 13.9mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 80°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | ELV, REACH, RoHS, UL 94HB |
| Number of Contacts | 3 |
| • Pitch | 2.54mm |
Key Features
- Compact Micro Quadlok System housing with 2.54 mm pitch for high-density automotive connections.
- Black polybutylene terephthalate housing ensures robust insulation and durability.
- Operates in temperature range from -40°C to 80°C suitable for harsh automotive environments.
- Features single row female termination with integral primary terminal locking force for secure contact retention.
- Meets ELV, REACH, RoHS compliance with UL 94HB flammability rating.
- Sealed versions available separately for waterproof applications, enhancing versatility.
- Polarization and keying options prevent mismating in automotive electrical systems.
Product Description
TE Connectivity 953697-1 Micro Quadlok System automotive connector is a female cable-mount connector housing featuring 3 crimp termination contacts in a compact design suited for demanding automotive electrical applications.
The connector offers a pitch of 2.54 mm within a robust polybutylene terephthalate housing, providing durability and insulation to withstand operating temperatures from -40°C to 80°C. Designed with a single row and black color, this Micro Quadlok System connector ensures reliable performance in powertrain, safety, body, and chassis systems.
Integral primary terminal locking force is achieved through stainless steel locking lances securing contacts firmly within the housing. Polarization and keying features prevent mismating, improving reliability and safety.
Compliance with ELV, REACH, RoHS standards and UL 94HB flammability rating underline its quality in automotive manufacturing and repair contexts. Although this version is not sealed, sealed versions and additional wire seals are available separately to enhance protection against water ingress.
Compact dimensions of 17.6 mm height and depth with 13.9 mm width streamline integration into vehicle harnesses and assemblies. Compact Micro Quadlok System housing with 2.54 mm pitch for high-density automotive connections.
Black polybutylene terephthalate housing ensures robust insulation and durability. Operates in temperature range from -40°C to 80°C suitable for harsh automotive environments. Features single row female termination with integral primary terminal locking force for secure contact retention.
Meets ELV, REACH, RoHS compliance with UL 94HB flammability rating. Dimensions are compact: height and depth 17.6 mm, width 13.9 mm. Sealed versions available separately for waterproof applications, enhancing versatility.
Polarization and keying options prevent mismating in automotive electrical systems.
This automotive connector is ideal for automotive electrical harness assembly, manufacturing, and maintenance in industrial, automotive, and transportation sectors. Explore more TE Connectivity Micro Quadlok System connectors and accessories on EnvMart for comprehensive solutions.
Explore more products in our Automotive Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 2.54 mm, which is designed for high-density automotive connections.
It operates within a temperature range of -40°C to 80°C, making it suitable for harsh automotive environments.
The housing is made from polybutylene terephthalate, providing robust insulation and durability.
This model features 3 crimp termination contacts.
The dimensions of this connector are 17.6 mm in height and depth, with a width of 13.9 mm.
Yes, it includes polarization and keying options to prevent mismating in automotive electrical systems.
It meets ELV, REACH, RoHS compliance and has a UL 94HB flammability rating.
This connector uses crimp termination for secure connections.
Yes, sealed versions are available separately for waterproof applications, enhancing versatility.
This connector is a female cable-mount connector.
It is ideal for automotive electrical harness assembly, manufacturing, and maintenance in various sectors including industrial and transportation.
The country of origin for this connector is India.
