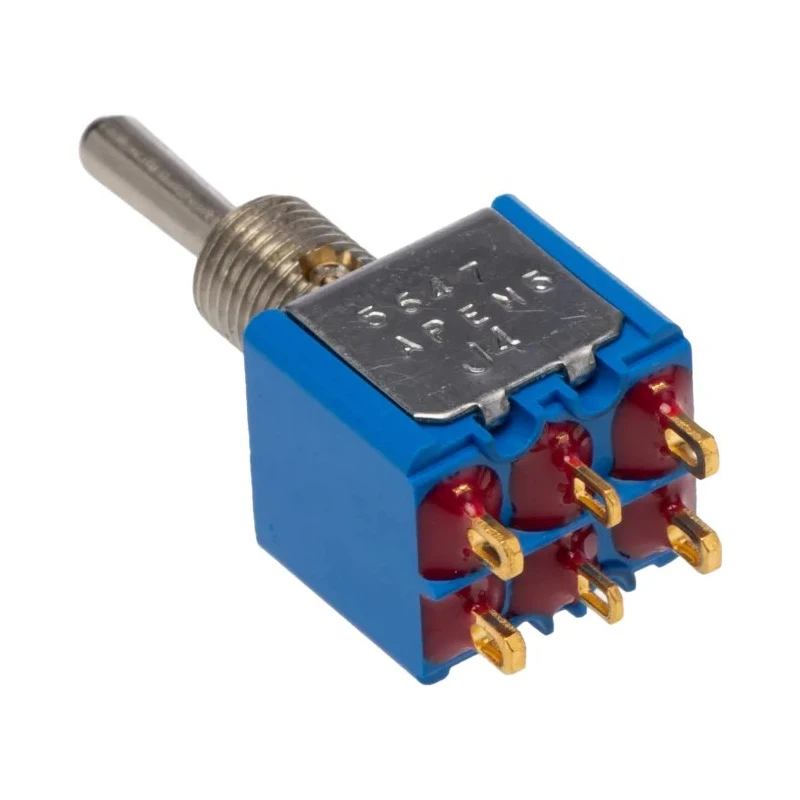

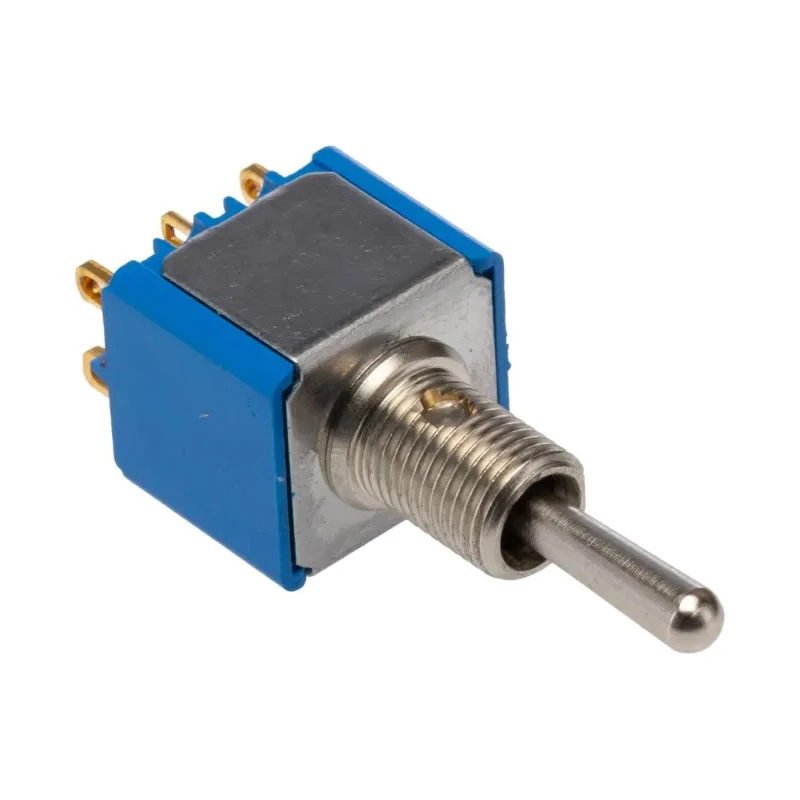

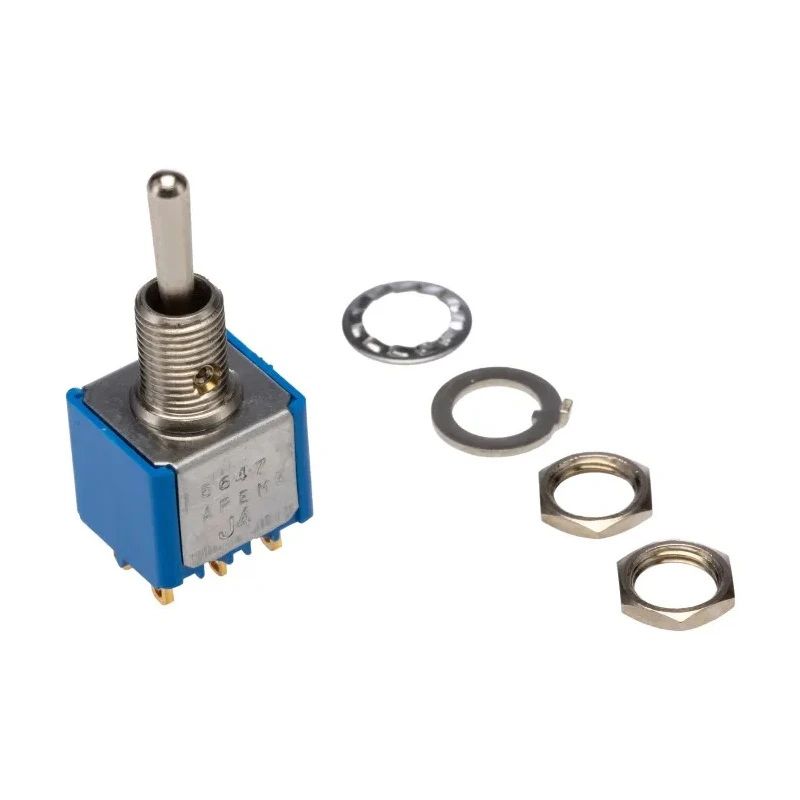

APEM Panel Mount Toggle Switch 400mA, On-Off-On, DPST, Solder Lug Terminal, 24 V dc, 250 V ac 5647CDB

APEM 5647CDB toggle switch is a robust panel mount switch designed for industrial and electrical applications. It features a double-pole, single-throw (DPST) contact configuration with On-Off-On switch operation, supporting switching voltages of 24 V dc and 250 V ac, making it suitable for a wide range of control circuits requiring safe ON and OFF switching.

This toggle switch is engineered to handle a switch contact current of up to 400mA with solder lug terminals ensuring secure connections. The brass actuator lever is 10.5 mm long and combines durability with ergonomic handling, mounted on a diallyl phthalate case ensuring high electrical insulation and mechanical strength.

The device requires a panel cutout of 6.5 mm and overall dimensions are compact - 36mm in height, 12mm width, and 14mm length, thus fitting efficiently in electrical enclosure panels. It operates reliably across a wide temperature range from -40°C to 85°C and has a mechanical life expectancy of 100,000 operations, ensuring long-term durability in demanding industrial and commercial environments.

Designed and manufactured in France, this switch complies with important international standards including UL, RoHS, NFVDE, CSA, and CECC, assuring quality, environmental compliance, and safety. The model 5647CDB series from APEM is well-suited for use in electrical panels, industrial automation, control systems, and HVAC equipment, supporting robust and safe switching operations.

Supports a switch contact current of 400mA for reliable electronic control. Uses solder lug terminals for secure and durable connections. Features a brass actuator with a length of 10.5 mm and a standard lever design. Panel cutout size is 6.5 mm allowing easy panel mounting installation.

Operates within a temperature range from -40°C minimum to 85°C maximum. Switch configuration is (On)-Off-(On) with a DPST contact style. Dimensions are compact with height 36mm, width 12mm, and length 14mm. Designed to meet standards including UL, RoHS, NFVDE, CSA, and CECC for safety and compliance.
