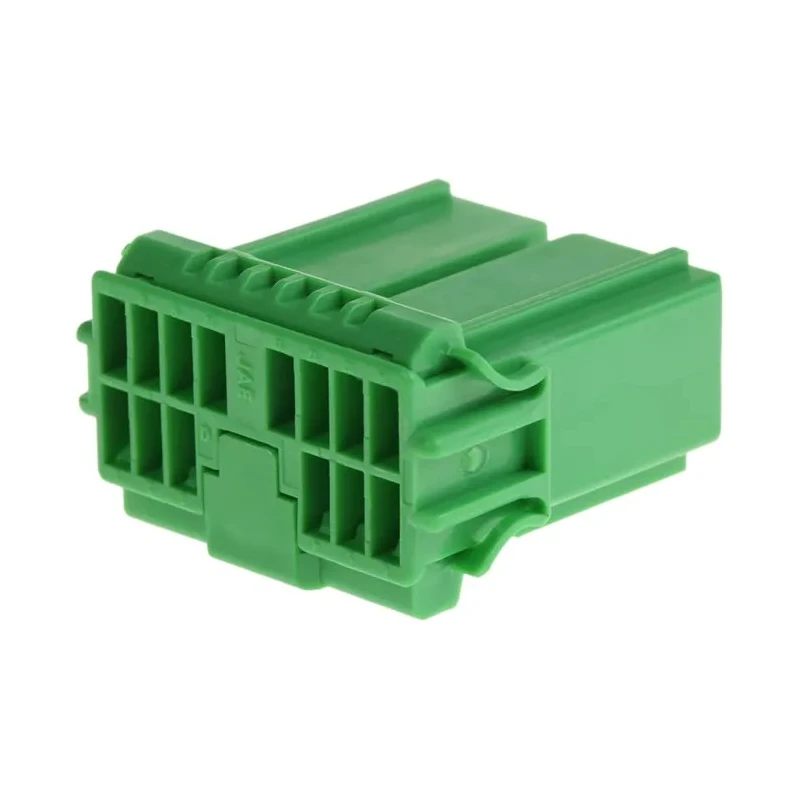

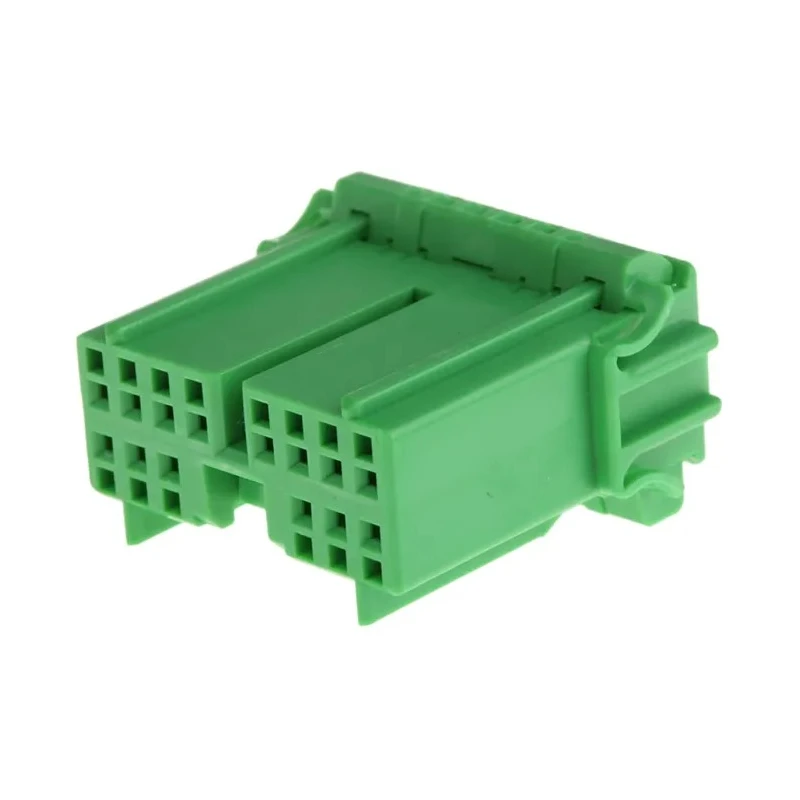

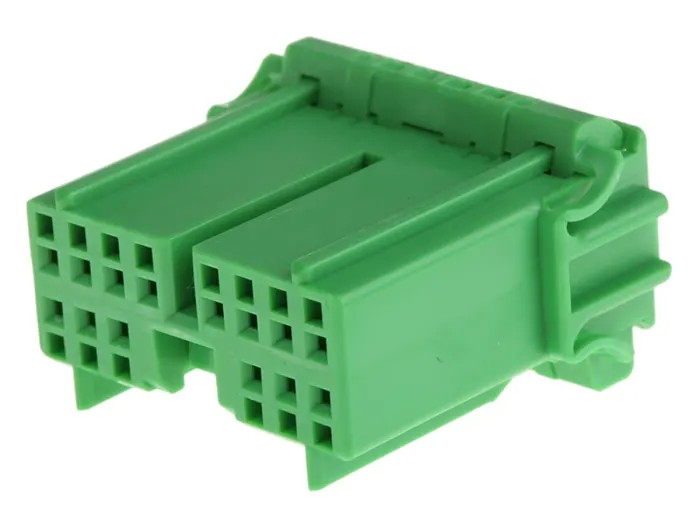

JAE Automotive Connector Female Green Cable 14 Way Crimp Termination IL-AG5-14S-D3C1-A

JAE IL-AG5-14S-D3C1-A Automotive Connector Female Green Cable 14 Way Crimp Termination is engineered for demanding automotive electrical connector requirements, particularly instrument panel applications. This connector offers a robust polybutylene terephthalate housing providing excellent mechanical strength while maintaining light weight.

The connector features 14 female socket contacts arranged in two rows, each plated with tin to enhance corrosion resistance and reliable electrical contact. Its crimp termination design allows secure and efficient wiring assembly for automotive cable harnesses.

Designed to handle a current rating of 3 amperes, the connector performs well within an operating temperature range from -40°C to 85°C, making it suitable for a wide variety of automotive environments and climates.

Engineering innovations such as a mechanical lock for positive mating and a double lock mechanism to prevent contact dislodging ensure reliable and secure connections throughout operational life. The unique housing configuration minimizes the risk of mismating connectors during assembly or maintenance.

This green-colored connector, with compact dimensions of 26.7mm in width, 16.6mm in height, and 24.6mm in depth, is designed for cable mount applications and does not include a cord. It is part of the JAE IL-AG5 series, recognized for high reliability in automotive connectors.

Features a 14-contact, 2-row female connector housing. Constructed with polybutylene terephthalate housing for durability. Tin-plated socket contacts ensure high reliability. Crimp termination type suitable for secure wiring.

Supports up to 3A current for automotive instrument panel applications. Operates reliably between -40°C to 85°C temperature range. Mechanical and double lock mechanisms prevent dislodging and mismating. Green color for easy identification in wiring harnesses.

Compact dimensions: 26.7mm width, 16.6mm height, and 24.6mm depth. Mount type is cable, without an included cord.

This automotive connector is ideal for use in automotive industry wiring assemblies, instrumentation panels, and other demanding electrical harness applications. Its design ensures efficient assembly and long-term reliable performance in harsh operational environments.
