Molex Mini50 Sealed Automotive Connector Female Black 4 Way Crimp Termination 34967-4001

Free Delivery in India | Lowest Global Shipping Charges

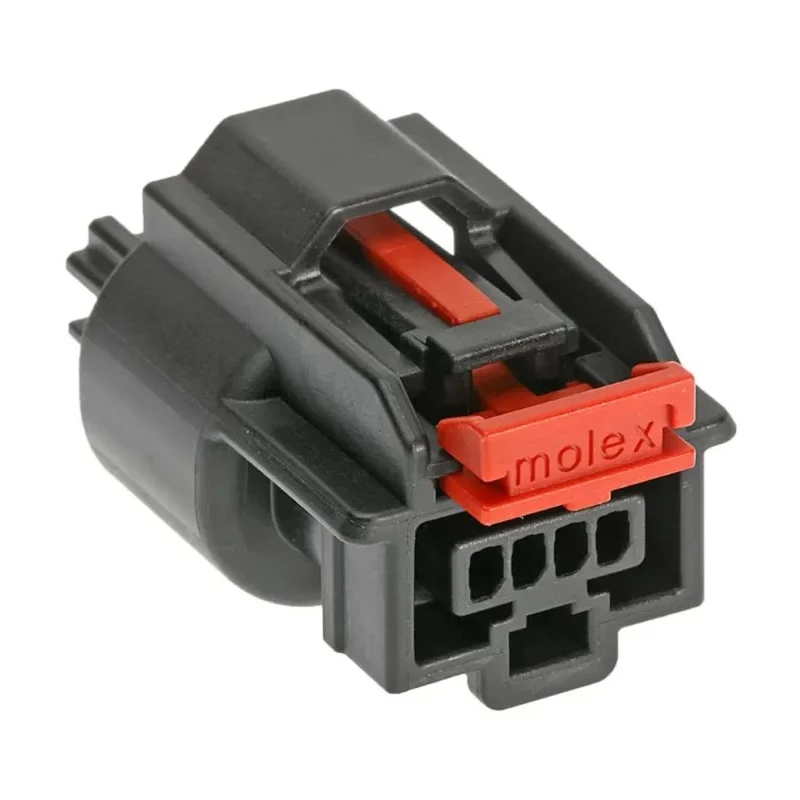

Molex Mini50 Sealed Automotive Connector Female Black 4 Way Crimp Termination 34967-4001

Name: Molex Mini50 Sealed Automotive Connector Female Black 4 Way Crimp Termination 34967-4001
Brand: Molex
SKU: 207132
Price: 2.13 USD
Availability: InStock



Category Automotive Connector Brand Molex Condition New

Specifications

Country of Origin	China
Diameter	19.22mm
Brand	Molex
Colour	Black
Current	4A
Height	16.3mm
Depth	30.45mm
Width	18.1mm
Gender	Female
Mount Type	Cable
Housing Material	SPS/Nylon
Contact Material	Copper Alloy
Series	Mini50 Sealed
Termination Type	Crimp
Maximum Operating Temperature	125°C
Sub Type	Crimp Housing
Minimum Operating Temperature	-40°C
Number of Rows	1
Standards/Approvals	USCAR 2 REV 6, ISO13715, ASME Y14.5M-2009
Contact Plating	Silver over Tin
Number of Contacts	4

Key Features

Designed to USCAR 050 specifications for reliable automotive use.
Compact Mini50 series provides 25% space savings over traditional connectors.
High performance IP68 sealing ensures durability in harsh environments.
Polarized black SPS/Nylon housing prevents mismating and provides secure retention.
Female connector accepts crimp terminals for easy cable termination.
Operating temperature range from -40°C to 125°C suits diverse automotive applications.
Compact dimensions and rounded shape simplify harness routing in tight spaces.
Suitable for low-current circuits including sensors, braking, lighting, and power steering.

Product Description

Molex 34967-4001 Mini50 Sealed Automotive Connector Female 4 Way is a high-quality automotive electrical connector designed for compactness and durability. Featuring a black SPS/Nylon housing and copper alloy contacts plated with silver over tin, this connector supports crimp termination for secure cable connections. It complies with USCAR 2 REV 6, ISO13715, and ASME Y14.5M-2009 standards, ensuring industrial-grade reliability.

The Mini50 series reduces space requirements by 25% compared to traditional 0.64 mm connectors and offers an IP68-rated seal for resistance to moisture and contaminants. Its rounded design facilitates easier harness routing through limited spaces, while the polarized housings prevent mismating during installation. An Independent Secondary Lock (ISL) embedded in the housing guarantees terminal retention, and the Connector Position Assurance (CPA) feature prevents accidental unmating.

This female automotive connector has 4 contacts arranged in a single row to carry up to 4A current in low-current circuits. It is suitable for usage ranges from -40°C to 125°C, making it ideal for critical automotive systems such as power steering, cameras, sensors, braking, exterior lighting, and mirrors.

Designed and fully tested to USCAR 050 specifications for automotive environments. Compact and low-profile design saves space in vehicle harnesses. IP68-rated sealing offers excellent environmental protection. Polarized housing and ISL/CPA features enhance installation security and terminal retention.

Durable SPS/Nylon housing and silver-over-tin plated copper alloy contacts ensure long-term reliability. Versatile for a wide range of automotive electrical applications.

This product is made in China and represents a dependable choice for automotive manufacturers and repair applications requiring secure, sealed electrical connections. Explore more Molex Automotive Connectors on EnvMart to find compatible parts and accessories.
