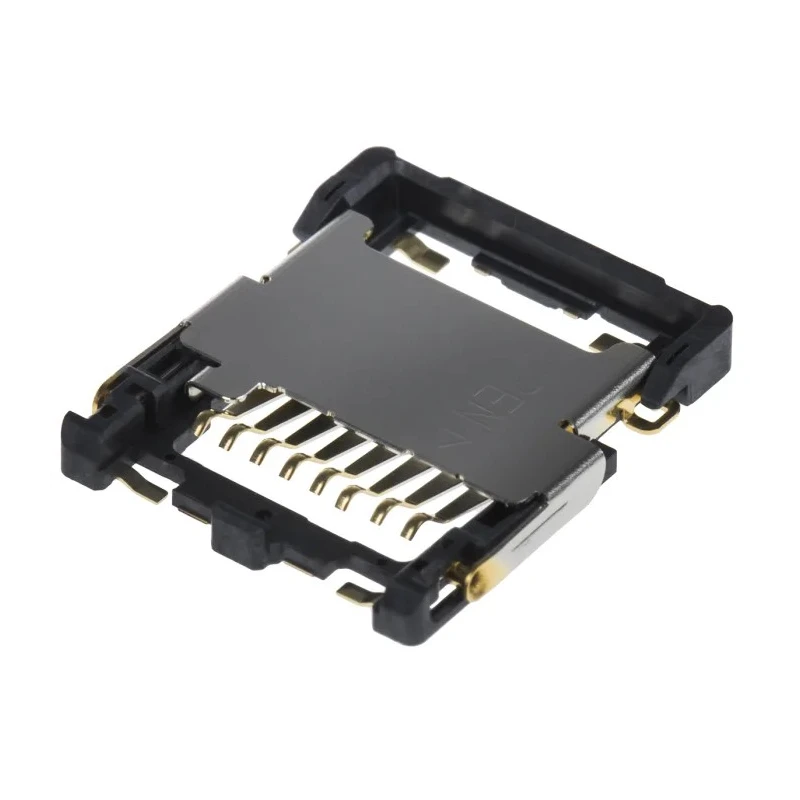

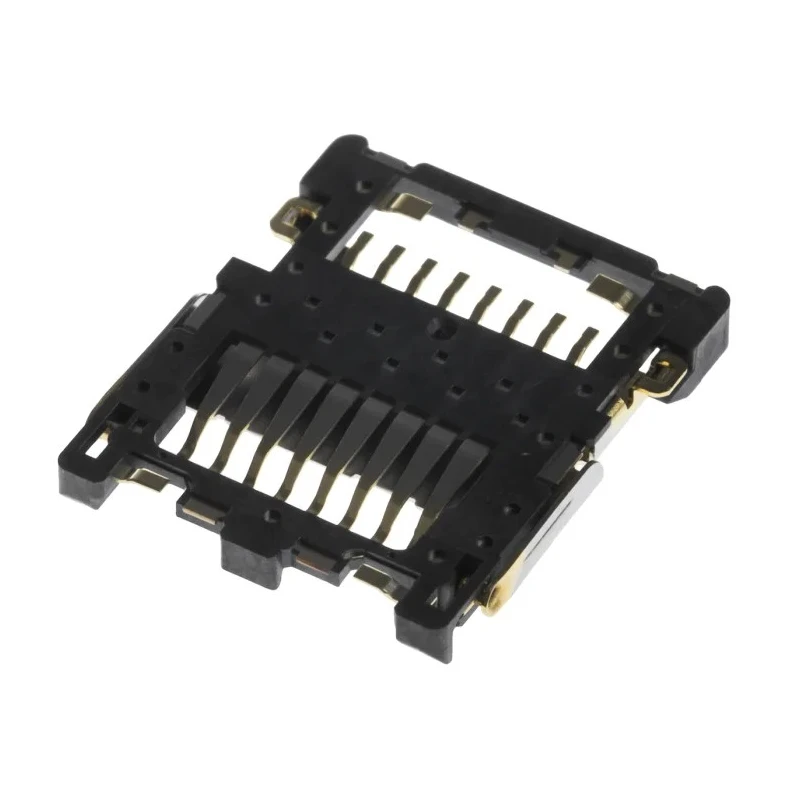

JAE 8 Way Hinged MicroSD Memory Card Connector Surface Mount Copper Alloy Gold over Nickel ST1W008S4A

Free Delivery in India | Lowest Global Shipping Charges

JAE 8 Way Hinged MicroSD Memory Card Connector Surface Mount Copper Alloy Gold over Nickel ST1W008S4A



Category Memory Card Connector Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Straight
Model	ST1W008S4A
Gender	Male
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	ST1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1.1mm
Contact Plating	Gold over Nickel
Number of Contacts	8
Card Type	MicroSD
Insertion/Removal Method	Hinged

Key Features

Designed with a hinged mechanism for secure card insertion and removal.
Features 8 contacts arranged in a single row with a 1.1 mm pitch.
Constructed from copper alloy contacts plated with gold over nickel ensuring durability and signal integrity.
Housing is made of liquid crystal polymer supporting operating temperatures from -25°C to 85°C.
Surface mount design suitable for compact electronic applications.
Strong lock design to resist drop impact and allow for 10,000 insertion/removal operations.
Offers a slim profile with a height of just 1.9 mm for space-constrained designs.
Ideal for use in industrial, electronic, and computing device manufacturing.

Product Description

JAE ST1W008S4A is an 8 Way Hinged MicroSD Memory Card Connector designed for surface mount applications. It features a hinged card insertion/removal mechanism enabling secure and repeated card usage. This connector provides a reliable and compact interface for MicroSD (Transflash) cards, preserving signal quality through copper alloy contacts plated with gold over nickel.

The connector is engineered for robust performance with a housing made of liquid crystal polymer that supports temperature ranges from -25°C to 85°C. With a pitch of 1.1 mm and single row design, the ST1W008S4A supports compact electronic assemblies, making it suitable for embedded systems, portable electronics, and computing devices.

The hinged design offers a strong lock mechanism to resist drop impacts and facilitates up to 10,000 insertion/removal cycles, ensuring long-term durability. Its slim profile, at only 1.9 mm in height, saves board space while maintaining mechanical and electrical reliability.

Hinged mechanism allows secure card insertion/removal. 8 contacts in a single row with 1.1 mm pitch dimension. Copper alloy contacts plated with gold over nickel for optimal conductivity. Housing material is liquid crystal polymer for temperature and mechanical robustness.

Surface mount termination suitable for modern PCB assembly processes. Designed for up to 10,000 operations ensuring extended product lifecycle. Strong lock design to prevent accidental card dislodging during shocks. Low profile form factor measuring 1.9 mm height for compact design fit.

This MicroSD Memory Card Connector is widely used in industrial electronics, embedded systems, telecommunication devices, and consumer electronics. Its robust construction and reliable electrical connection make it a trusted choice for designers and manufacturers.

Explore more connectors and related electronic components at EnvMart for your design and manufacturing needs.
