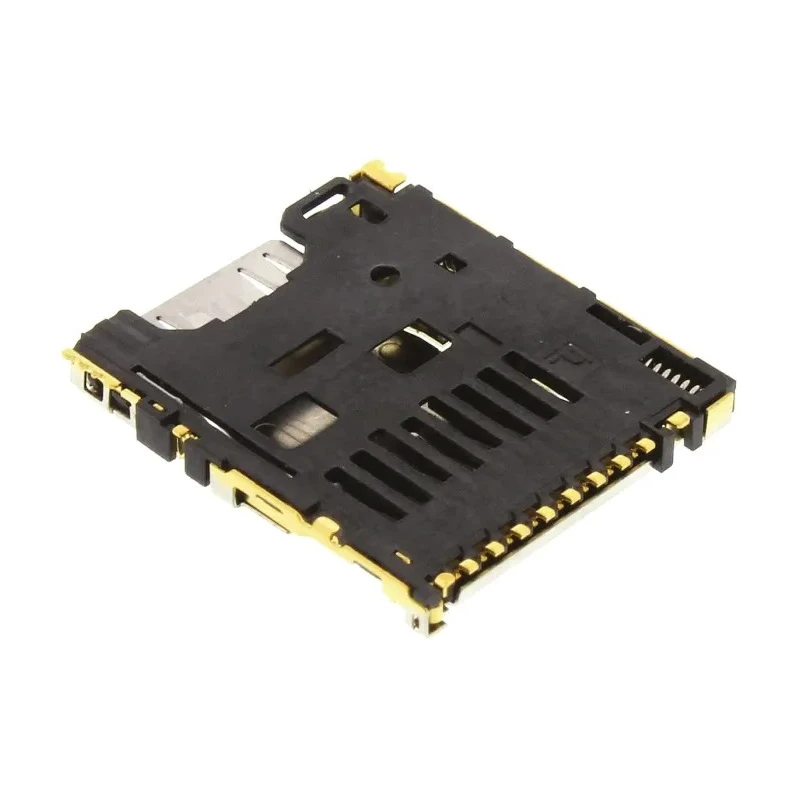

Hirose 8 Way Right Angle MicroSD Memory Card Connector, Surface Mount, Solder Termination DM3AT-SF-PEJM5(40)

Hirose DM3AT-SF-PEJM5(40) is an 8 Way Right Angle MicroSD Memory Card Connector designed for surface mount technology (SMT) applications. It features gold-plated copper alloy contacts arranged in a single row with a 1.1mm pitch, optimizing electrical performance and durability. This connector incorporates a push-push ejection mechanism and is designed for top board mounting, providing robust mechanical stability and ease of use.

The stainless steel housing contributes to a strong, rigid construction that offers efficient EMI protection through multiple secure ground connection points. The black liquid crystal polymer (LCP) insulator has a UL94V-0 flame retardant rating, ensuring safety and durability in demanding industrial environments.

Operating temperature ranges from -25°C to 85°C, making it suitable for a wide variety of industrial, electronic component assembly, and embedded systems applications. The connector supports reverse card insertion protection and includes a normally open card detection switch for reliable card presence signalling.

The termination leads are accessible for soldering inspection and re-work, facilitating quality control and repair processes in manufacturing. These features make the DM3AT-SF-PEJM5(40) connector ideal for memory card connections in consumer electronics, industrial devices, and embedded hardware systems.

Designed for MicroSD cards with 8 contacts in a single row configuration. Features right angle orientation ideal for SMT PCB mounting. Constructed with copper alloy contacts plated in gold for reliable conductivity. Incorporates reverse card insertion protection and normally open card detection switch.

Black LCP insulator with UL94V-0 rating ensures flame resistance. Durable stainless steel housing provides strong mechanical support and EMI protection. Operates reliably between -25°C and 85°C temperature range. Termination type is optimized for soldering with accessible leads for inspection and rework.

Complies with standard industrial mounting and contact system specifications.

This memory card connector is commonly used in electronic manufacturing, embedded system design, and hardware production environments where secure and reliable data storage connections are essential. Its compact size and surface mount design help reduce PCB space, enhancing device miniaturization efforts.
