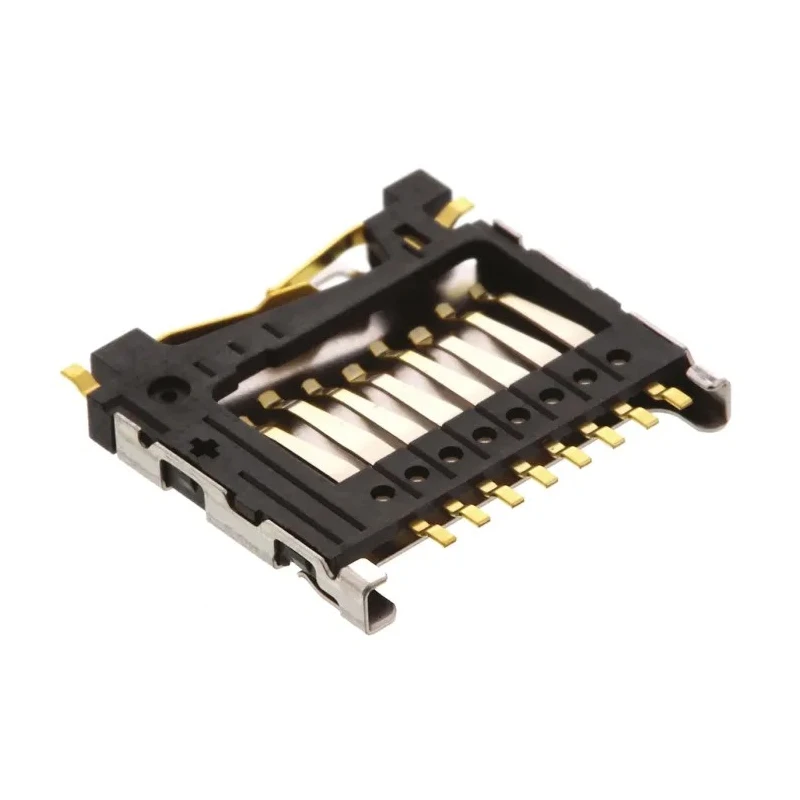

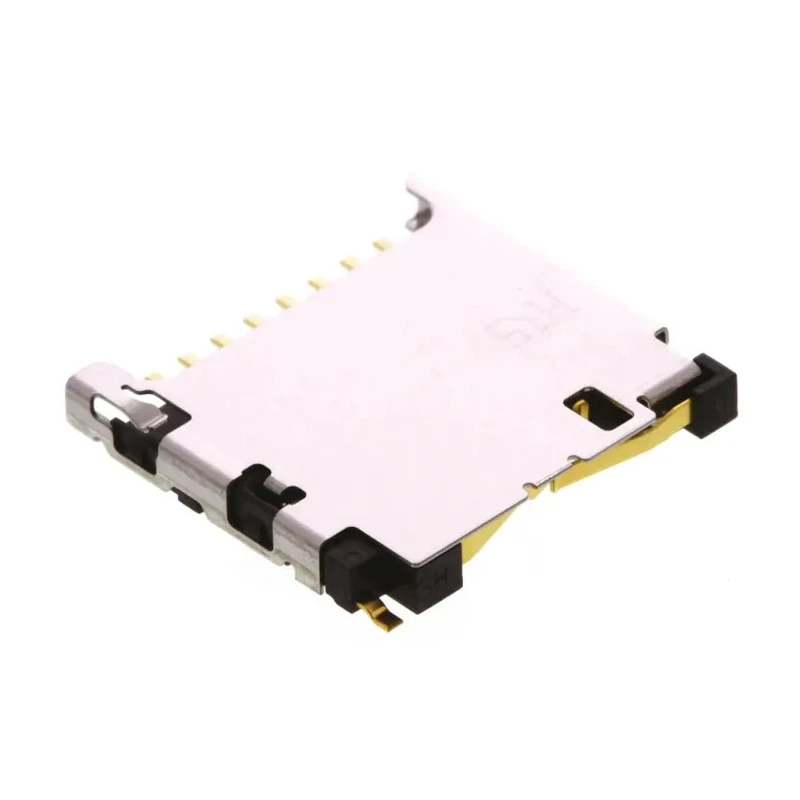

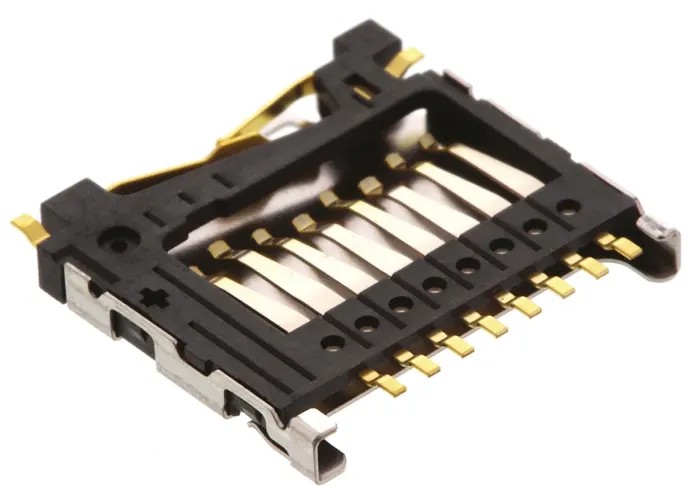

Hirose MicroSD Memory Card Connector 8 Contacts Female Right Angle Surface Mount Push-Push Solder DM3D-SF

Hirose DM3D-SF MicroSD Memory Card Connector is an 8 contact female connector designed for reliable microSD card interface in electronic applications. It features a push-push insertion and removal mechanism with right angle orientation and surface mount technology suitable for compact PCB designs. The connector is constructed with a liquid crystal polymer housing that complies with UL94V-0 flame retardant standards, providing excellent durability and insulation.

Its contact parts are made of copper alloy with gold plating to deliver high conductivity and corrosion resistance. The connector incorporates reverse card insertion protection to prevent damage and a normally open card detection switch allowing electronic devices to detect card presence efficiently. Four connection points of the metal cover secure the ground circuit to help protect against electromagnetic interference (EMI).

The DM3 series design allows small external dimensions and a strong rigid structure optimized for industrial electronics, consumer devices, and embedded systems. Operating temperature range from -25°C to +85°C ensures performance reliability in diverse ambient conditions.

This product is manufactured in Japan and is part of Hirose’s DM3 series known for robust microSD card connectors with solder termination for permanent mounting. It is ideal for applications requiring small footprint, high reliability, and enhanced card protection features in electronics manufacturing, communication devices, and consumer electronics.

The connector features a gold-plated copper alloy contact material ensuring excellent conductivity. It has a pitch of 1.1 mm and is designed for surface mounting on printed circuit boards. Constructed with a liquid crystal polymer housing rated UL94V-0 for durable insulation.

Operating temperature range extends from -25°C to 85°C, suitable for varied environmental conditions. Includes reverse card insertion protection and normally open card detection switch for enhanced functionality. Strong and rigid construction with 4 metal cover connection points for EMI protection.

This right angle SMT terminal type connector is solder terminated for secure electrical connection. Manufactured in Japan under the DM3 series standard with no certifications indicated.

For engineers, manufacturers, and designers seeking high-quality Memory Card Connectors for microSD interfacing, the Hirose DM3D-SF offers robust construction and industry-grade features. Explore additional Hirose connectors and components at EnvMart for your electronic and industrial projects.
