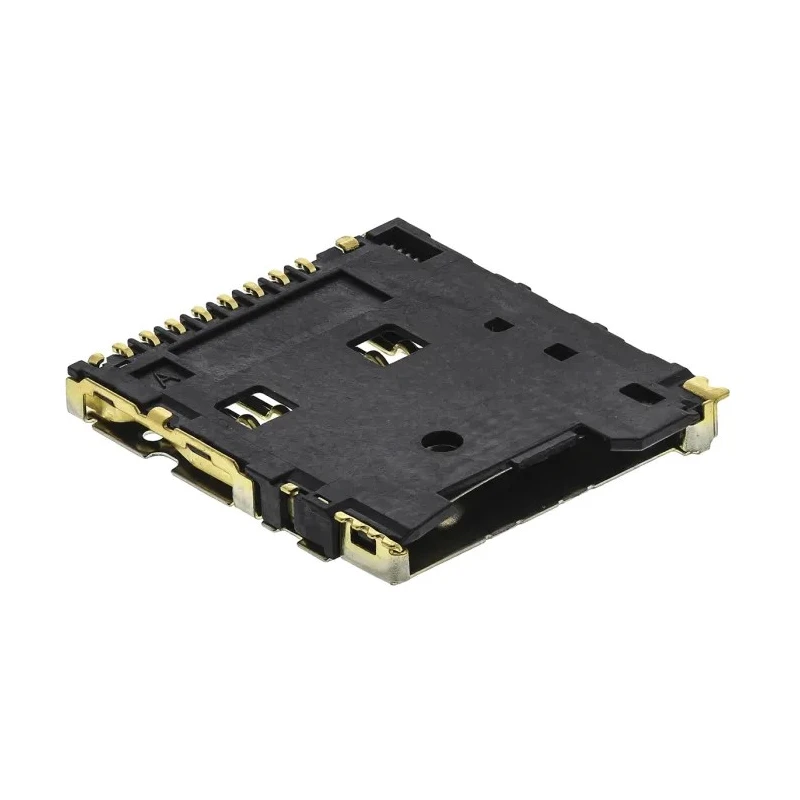

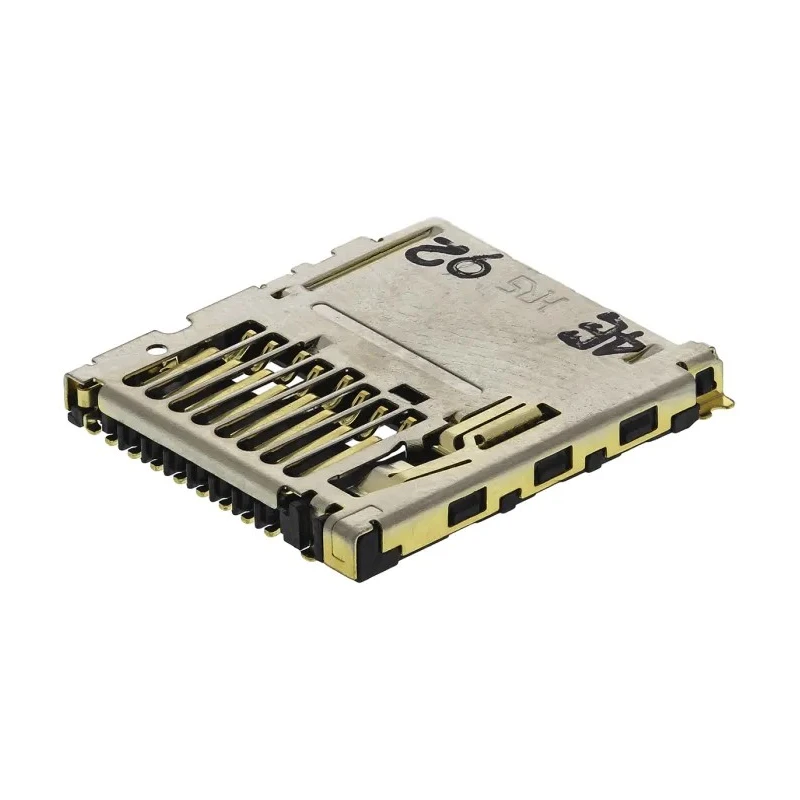

Hirose MicroSD Memory Card Connector 8 Way Right Angle Push-Push Solder DM3BT-DSF-PEJS
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hirose |
| Orientation | Right Angle |
| Model | DM3BT-DSF-PEJS |
| Gender | Female |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | DM3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1.1mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Card Type | MicroSD |
| Insertion/Removal Method | Push-Push |
Key Features
- Designed for microSD card connections with strong, rigid construction for reliable performance.
- Features a push-push ejection mechanism for easy card insertion and removal.
- Uses gold-plated copper alloy contacts ensuring excellent conductivity and corrosion resistance.
- Right angle surface mount design enables compact PCB layouts and reverse card insertion protection.
- Equipped with a normally open card detection switch for efficient status detection.
- Constructed with a black Liquid Crystal Polymer housing offering UL94V-0 flame retardant rating.
- Supports a wide operating temperature range from -25°C to 85°C, suitable for various environments.
- Termination by soldering provides secure and reliable mechanical and electrical connection.
Product Description
Hirose DM3BT-DSF-PEJS MicroSD Memory Card Connector is a surface mount Memory Card Connector designed for industrial and electronic applications requiring reliable microSD card interfacing. This model from the DM3 series includes 8 gold-plated copper alloy contacts arranged in a single row with a 1.1mm pitch. The right angle orientation and push-push insertion/removal method provide robust, compact PCB mounting while protecting against reverse card insertion.
Carefully engineered with a strong and rigid structure, the connector is housed in flame-retardant black Liquid Crystal Polymer (LCP), compliant with UL94V-0 standards. The connector features 4 connection points for EMI protection and ground circuit stability, making it suitable for sensitive electronic environments such as industrial, manufacturing, communications, and computing systems.
The device includes a normally open card detection switch for automated system status monitoring. It supports a temperature range between -25°C and 85°C, enabling operation in various industrial and commercial applications. The solder termination type ensures secure electrical connections and ease of assembly.
The model DM3BT-DSF-PEJS is specifically bottom board mounting (reverse) with reverse right angle SMT terminals, making it compatible with diverse PCB designs. Strong, rigid construction for reliable connectivity. Push-push ejection mechanism with protection against reverse card insertion.
Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance. Black LCP housing with UL94V-0 flame retardant properties. Card detection switch for status monitoring. Surface mount termination by solder offers assembly durability.
Wide temperature operating range from -25°C to 85°C. Four metal cover connections for EMI protection and grounding.
Ideal for use in electronics manufacturing, communications equipment, industrial machines, and computing devices requiring high-quality microSD card interface components. Explore more Hirose connectors and related products in EnvMart's Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose DM3BT-DSF-PEJS connector has a right angle orientation, which is designed for compact PCB layouts.
This model supports a wide operating temperature range from -25°C to 85°C, making it suitable for various environments.
The connector features 8 gold-plated copper alloy contacts arranged in a single row with a 1.1mm pitch.
The Hirose DM3BT-DSF-PEJS uses solder termination, providing secure and reliable mechanical and electrical connections.
The housing is constructed from black Liquid Crystal Polymer (LCP), which has a UL94V-0 flame retardant rating.
Yes, it is equipped with a normally open card detection switch for efficient status detection.
The connector utilizes a push-push ejection mechanism, allowing for easy card insertion and removal.
This connector is female gendered, designed for microSD card connections.
The contacts in the DM3BT-DSF-PEJS connector are arranged with a pitch of 1.1mm.
The connector includes 4 connection points for EMI protection and ground circuit stability, making it suitable for sensitive electronic environments.
This model is ideal for use in electronics manufacturing, communications equipment, industrial machines, and computing devices requiring microSD card interfacing.
The connector is manufactured in China.
