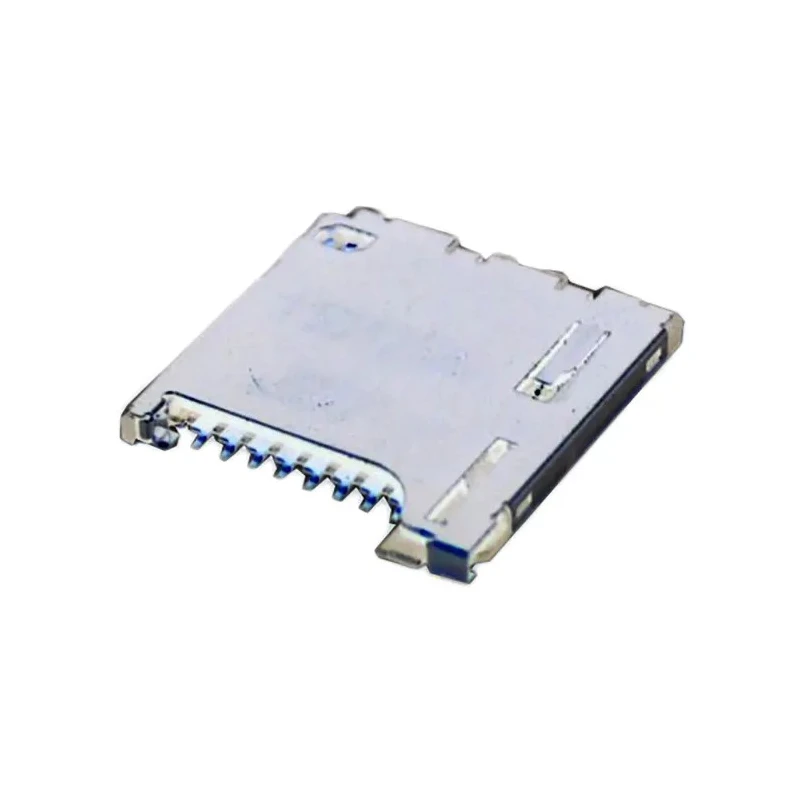

JST MicroSD Memory Card Connector 8 Contacts Push-Push Snap-In Surface Mount Stainless Steel SDHL-8BNS-K-363-A0-ETB(HF)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Model | SDHL-8BNS-K-363-A0-ETB(HF) |
| Gender | Female |
| Mount Type | Surface |
| Housing Material | Stainless Steel |
| Contact Material | Copper Alloy |
| Series | SDHL |
| Termination Type | Snap-In |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1.1mm |
| Contact Plating | Nickel Palladium Alloy |
| Number of Contacts | 8 |
| Card Type | MicroSD |
| Insertion/Removal Method | Push-Push |
Key Features
- Designed for MicroSD cards with female gender contacts.
- Features a push-push mechanism for easy card ejection.
- Surface mount type with snap-in termination for secure installation.
- Constructed with copper alloy contacts plated with nickel palladium alloy.
- Housing made of stainless steel ensures durability and corrosion resistance.
- Operates reliably from -25°C up to 85°C for diverse environments.
- Pitched at 1.1 mm with a straight orientation and single row of contacts.
- Compact low profile design with a height of 1.4 mm in the SDHL series.
Product Description
The JST SDHL-8BNS-K-363-A0-ETB(HF) is a high-quality MicroSD memory card connector designed for compact electronic devices such as digital cameras, PDAs, and mobile phones. This connector features a push-push mechanism allowing convenient insertion and ejection of MicroSD cards, improving user accessibility and device maintenance.
Manufactured with copper alloy contacts plated with nickel palladium alloy, it guarantees excellent electrical conductivity and corrosion resistance. The stainless steel housing provides structural integrity and durability under varied operating conditions.
Its surface mount design with snap-in termination enables efficient automated manufacturing processes, enhancing production efficiency. The connector supports 8 contacts in a single row with a 1.1 mm pitch and a straight orientation, making it suitable for space-constrained applications. Operating temperature ranges from -25°C to 85°C ensure reliability in both cold and warm environments.
Applications for this memory card connector include use in consumer electronics, portable devices, and other industrial equipment requiring secure and reliable MicroSD card interfacing. Its low profile height of 1.4 mm from the SDHL series provides space-saving advantages in PCB layouts.
MicroSD memory card compatibility with female contacts. Push-push insertion/removal method for ease of use. Surface-mounted snap-in termination for efficient manufacturing. Copper alloy contacts with nickel palladium plating enhance durability.
Stainless steel housing offers robust mechanical strength. Rated for operation from -25°C to 85°C. Compact low-profile design with 1.1 mm pitch and single contact row.
This JST MicroSD connector is manufactured in Japan, ensuring adherence to stringent quality standards. Ideal for various industrial and commercial electronics applications, it contributes to reliable and efficient memory card interfacing solutions.
Explore more Memory Card Connectors and electronic components at EnvMart for all your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably within a temperature range of -25°C to 85°C, making it suitable for diverse environmental conditions.
The connector features 8 contacts arranged in a single row.
It is constructed with copper alloy contacts plated with nickel palladium alloy, and the housing is made of stainless steel for durability and corrosion resistance.
This connector utilizes a snap-in termination type, which facilitates efficient automated manufacturing processes.
The pitch of the contacts is 1.1 mm, which is designed for space-constrained applications.
It features a push-push mechanism, allowing for easy insertion and ejection of MicroSD cards.
Yes, it is designed for use in compact electronic devices such as digital cameras, PDAs, and mobile phones.
The contacts are oriented straight, which is suitable for various PCB layouts.
This model is manufactured in Japan, ensuring adherence to stringent quality standards.
It supports MicroSD cards with female gender contacts, providing a reliable interfacing solution.
This connector is part of the SDHL series, which is designed for low-profile applications.
The height of this model is 1.4 mm, contributing to its compact design.
