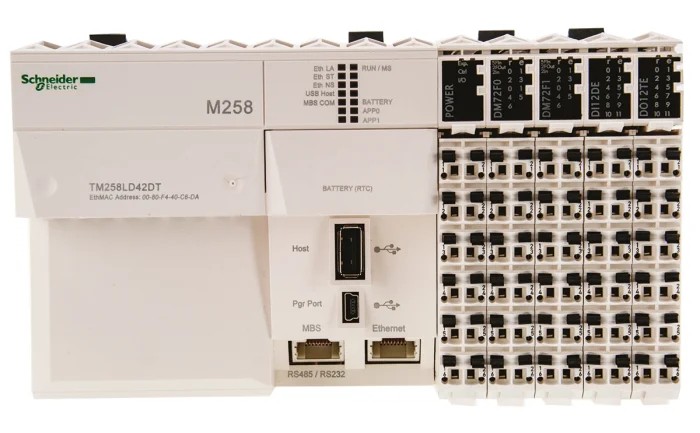

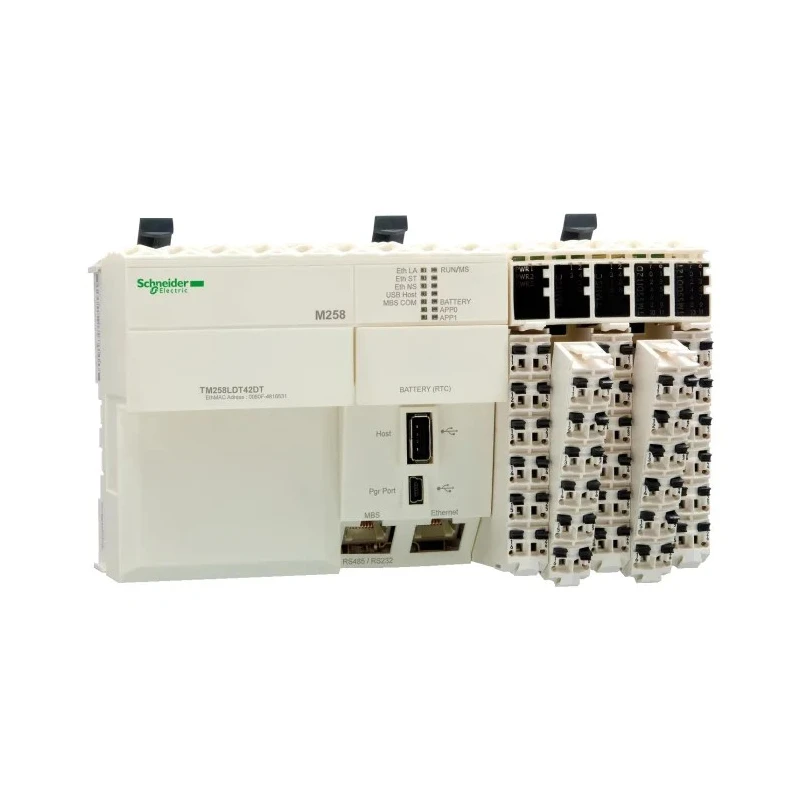

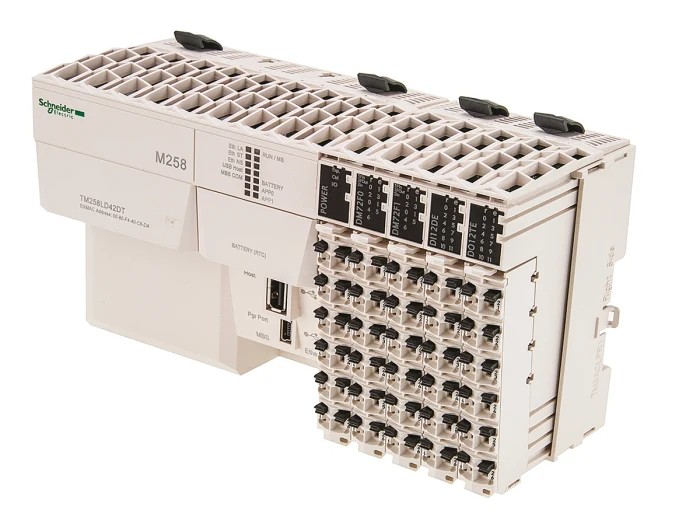

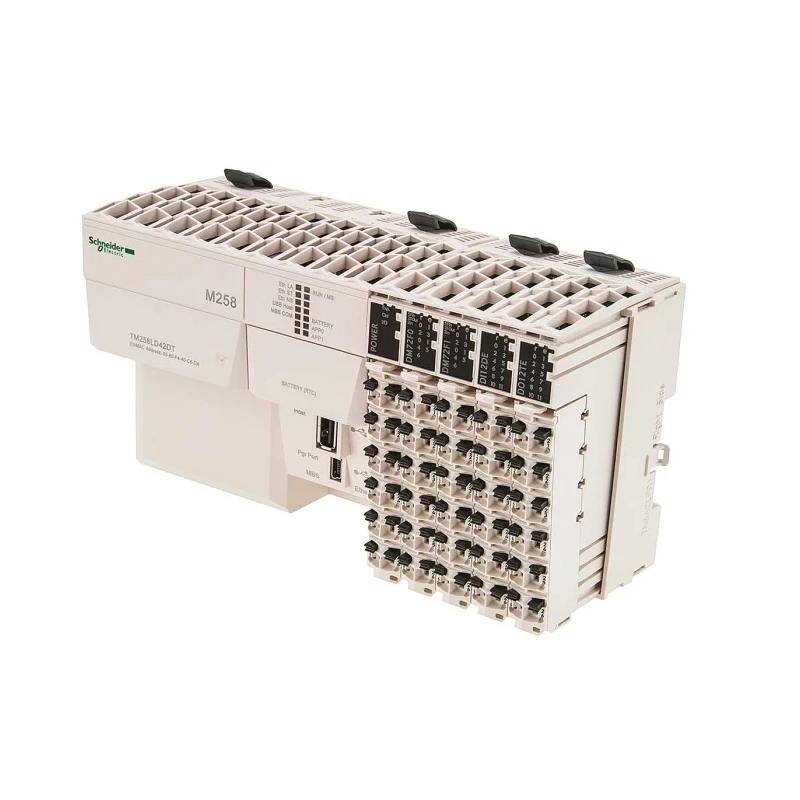

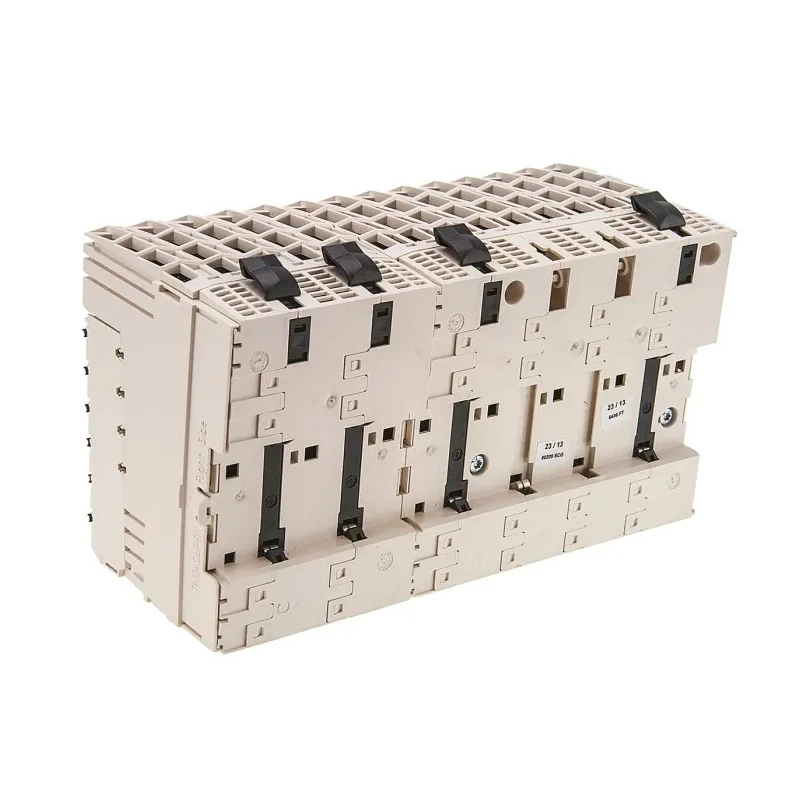

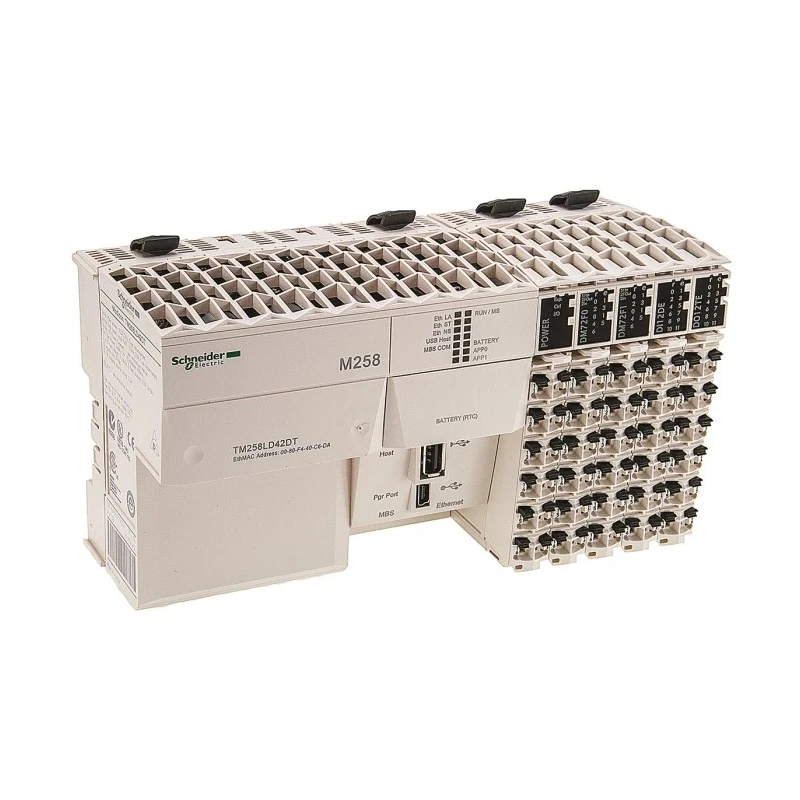

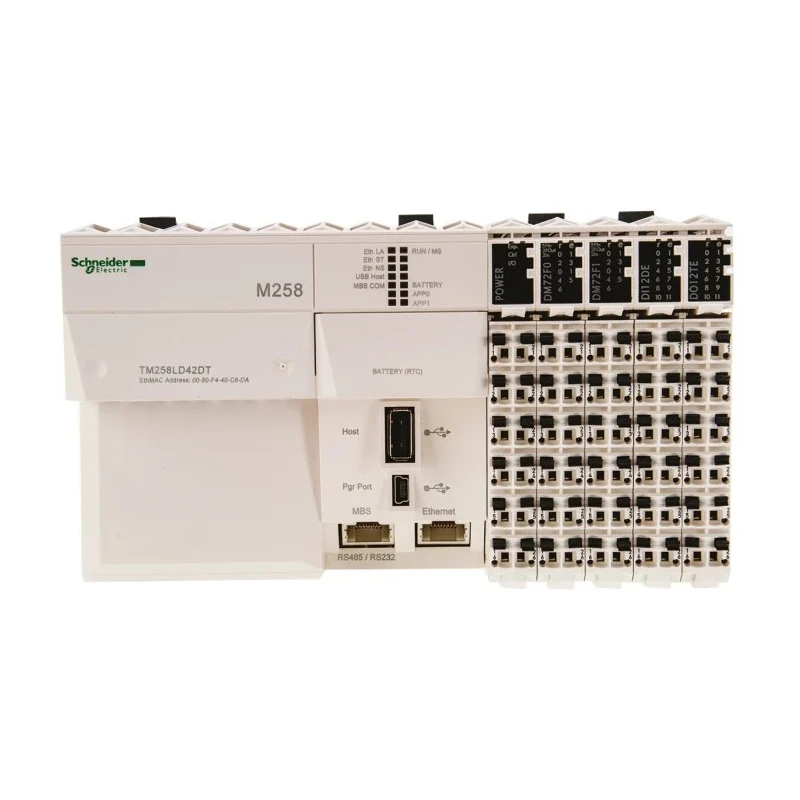

Schneider Electric Modicon M258 Series PLC CPU, 26 Digital Inputs, 16 Digital Outputs, DIN Rail Mount TM258LD42DT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 175mm |
| Model | TM258LD42DT |
| Depth | 85mm |
| Width | 99mm |
| Mount Type | DIN Rail |
| Number of inputs | 26 |
| Output type | Digital |
| Series | Modicon M258 |
| Output Current | 4mA |
| Input Type | Digital |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet port (RJ45) |
| Number of outputs | 16 |
| Program Capacity | 128000Instructions |
| Standards/Approvals | CSA certified, UL Listed |
| Number of Communication Ports | 4 |
| Communication Port Type | Ethernet, Serial, USB |
| Programming Language Used | Instruction List (IL), Ladder Diagram, FBD, Structured Text (ST), CFC, Sequential function chart (SFC) |
| IL | Instruction List |
| ST | Structured Text |
| FBD | Function Block Diagram |
| SFC | Sequential Function Chart |
| LD | Ladder Diagram |
| CFC | Continuous Function Chart |
Key Features
- Supports multiple IEC61131-3 programming languages including Instruction List and Ladder Diagram.
- Equipped with 4 communication ports for Ethernet, Serial, and USB interfaces.
- Operates within temperature range 0°C to 60°C for reliable industrial use.
- Compact dimensions with 175mm length, 99mm width, and 85mm depth, designed for DIN rail mounting.
- Battery backup included to ensure data retention during power interruptions.
- Output current rated at 4mA supporting stable digital signaling.
- Embedded web and FTP servers enable advanced network functionalities.
- Suitable for industrial applications including packaging, hoisting, conveying, and textiles.
Product Description
Schneider Electric TM258LD42DT Modicon M258 Series PLC CPU offers high-performance industrial automation with 26 digital inputs and 16 digital outputs. Its DIN rail mount design fits seamlessly into industrial control panels. The CPU supports extensive IEC61131-3 programming languages such as Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Continuous Function Chart (CFC), and Sequential Function Chart (SFC), providing versatile programming capabilities.
The device operates reliably in ambient temperatures from 0°C to 60°C, with compact dimensions of 175mm length, 99mm width, and 85mm depth. It includes a battery backup to maintain program and data integrity during power failures. Connectivity is facilitated through four communication ports, featuring Ethernet, Serial, and USB interfaces, along with embedded web and FTP server support for device management and data exchange.
Designed for diverse industrial applications like packaging machinery, hoisting equipment, conveyor systems, textile machinery, and woodworking operations, the Modicon M258 CPU delivers efficient control with a swift execution speed of 22 ns for Boolean instructions. Its removable spring terminals and test points enable convenient diagnostics and maintenance.
Supports multiple IEC61131-3 programming languages including Instruction List and Ladder Diagram. Equipped with 4 communication ports for Ethernet, Serial, and USB interfaces. Operates within temperature range 0°C to 60°C for reliable industrial use.
Compact dimensions with 175mm length, 99mm width, and 85mm depth, designed for DIN rail mounting. Battery backup included to ensure data retention during power interruptions. Output current rated at 4mA supporting stable digital signaling.
Embedded web and FTP servers enable advanced network functionalities. Suitable for industrial applications including packaging, hoisting, conveying, and textiles. CSA certified and UL Listed for safety compliance.
The Modicon M258 provides a powerful, flexible solution for demanding industrial automation needs. Explore the broader range of Schneider Electric PLCs and control gear on EnvMart to equip your facility with cutting-edge automation technology.
