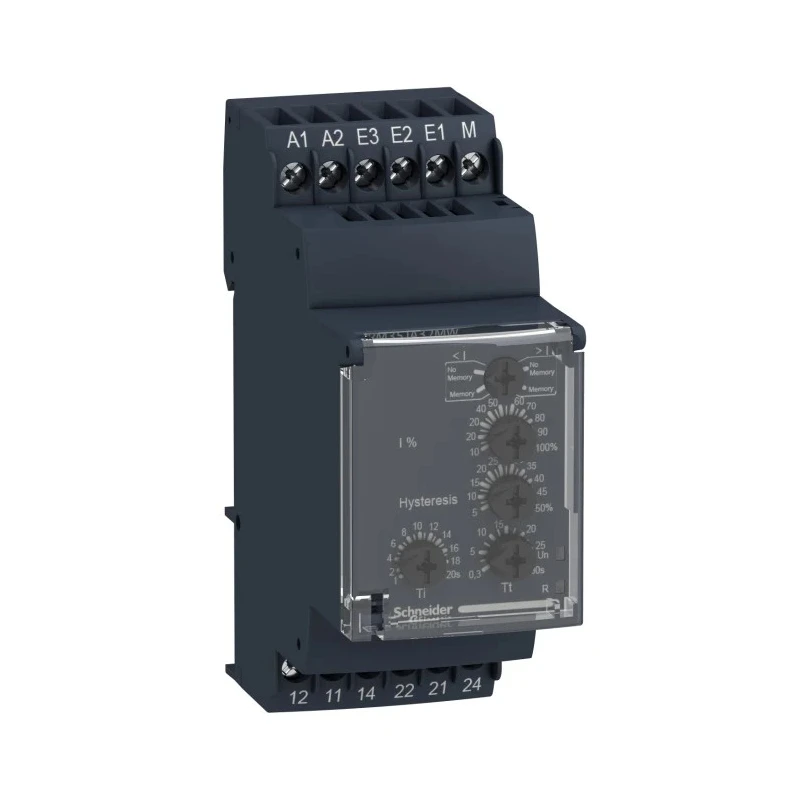

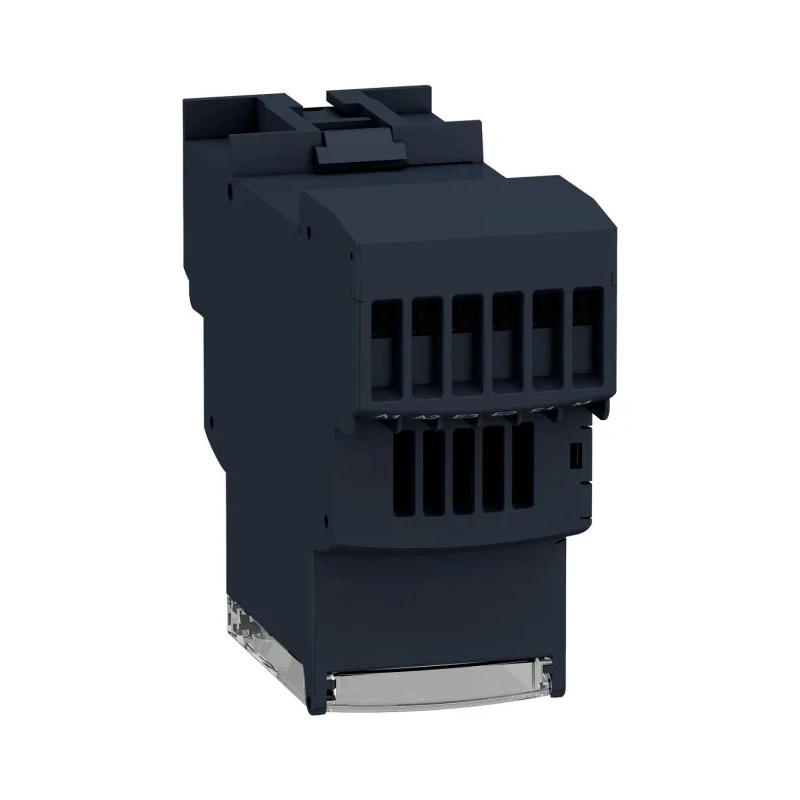

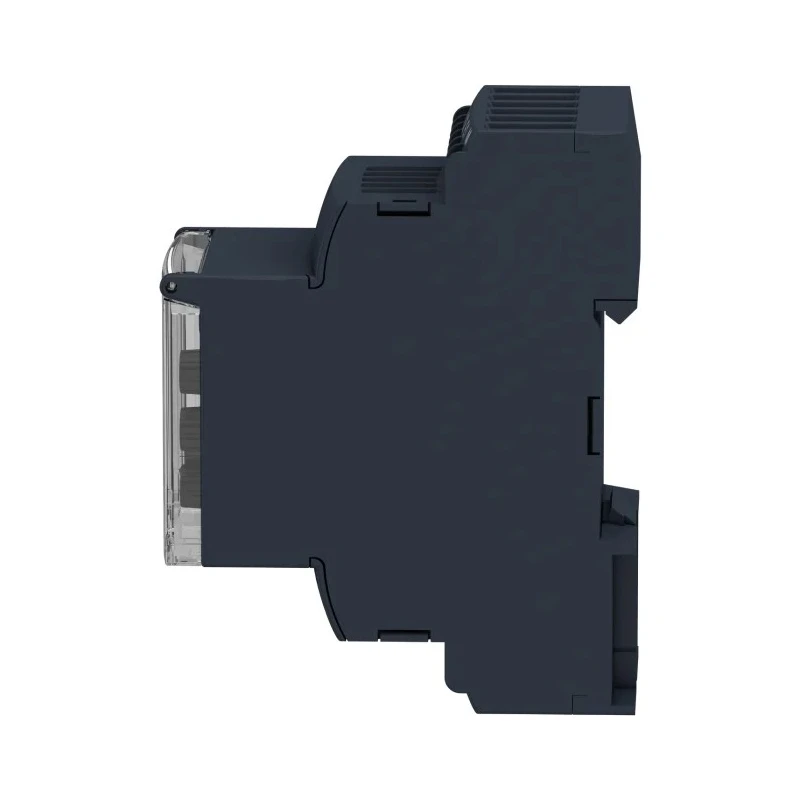

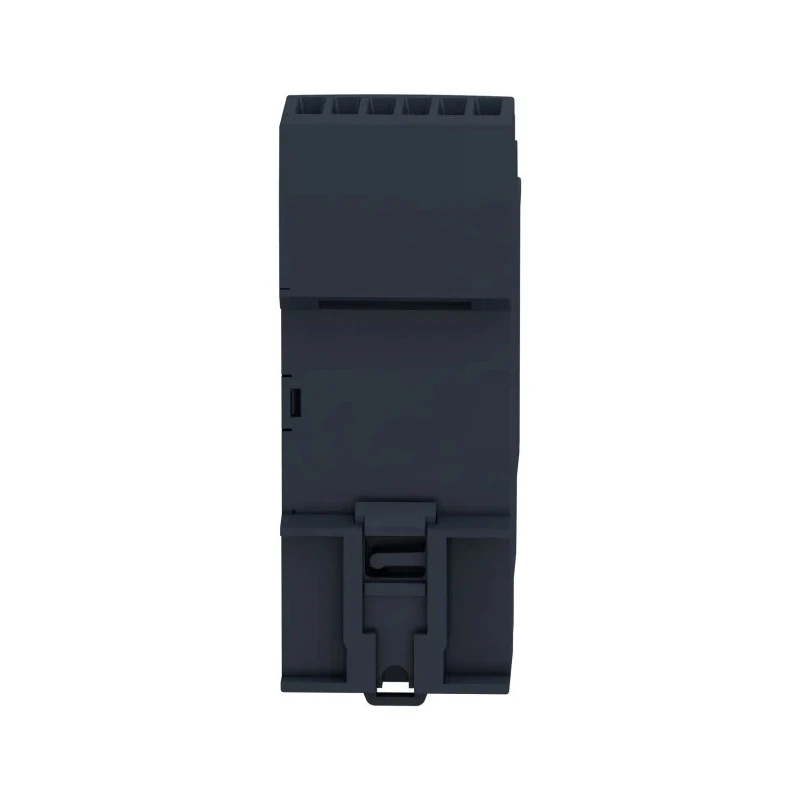

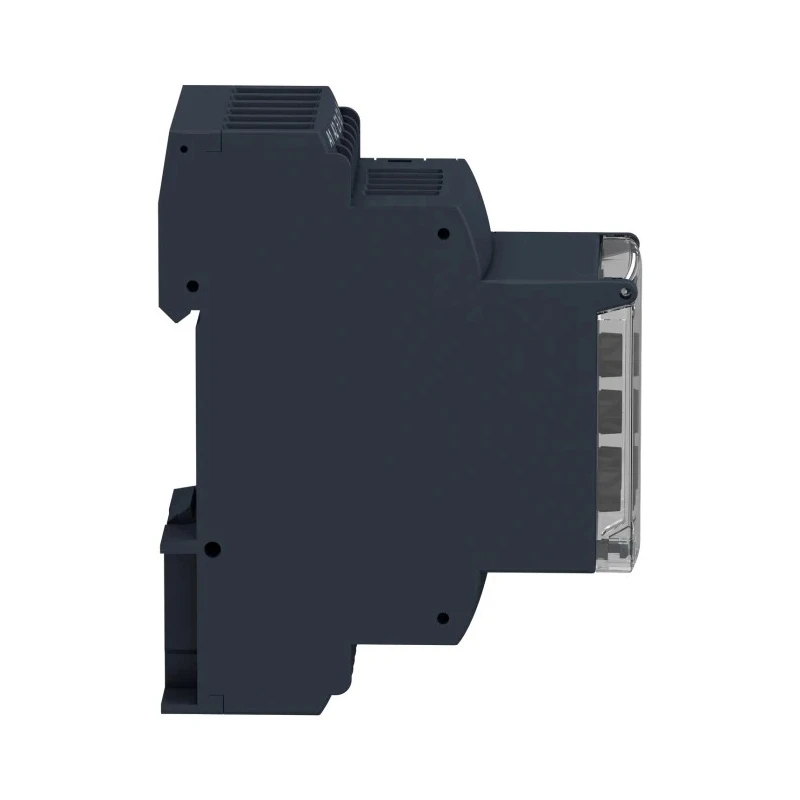

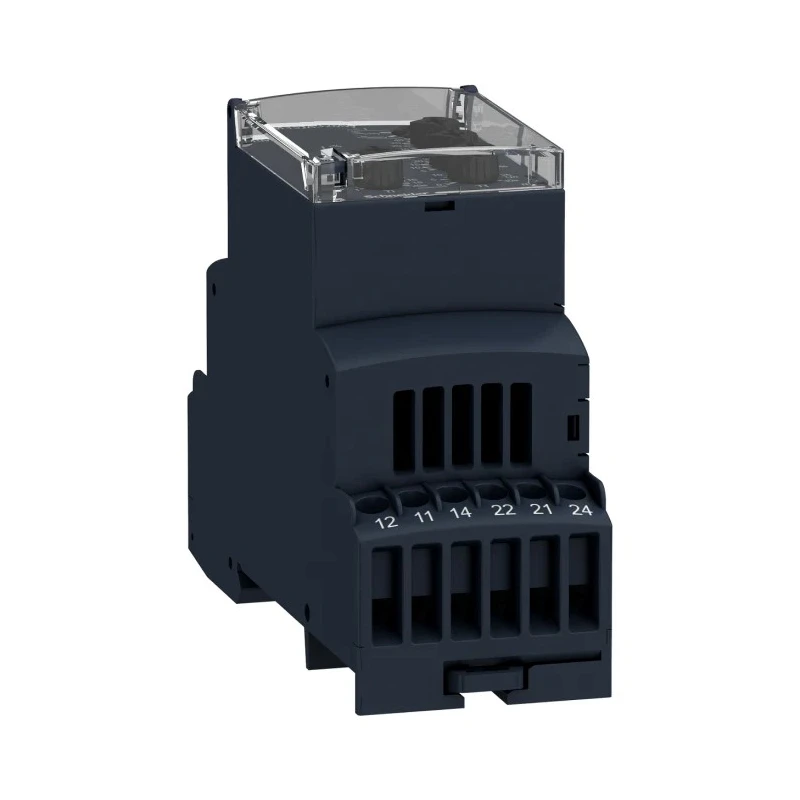

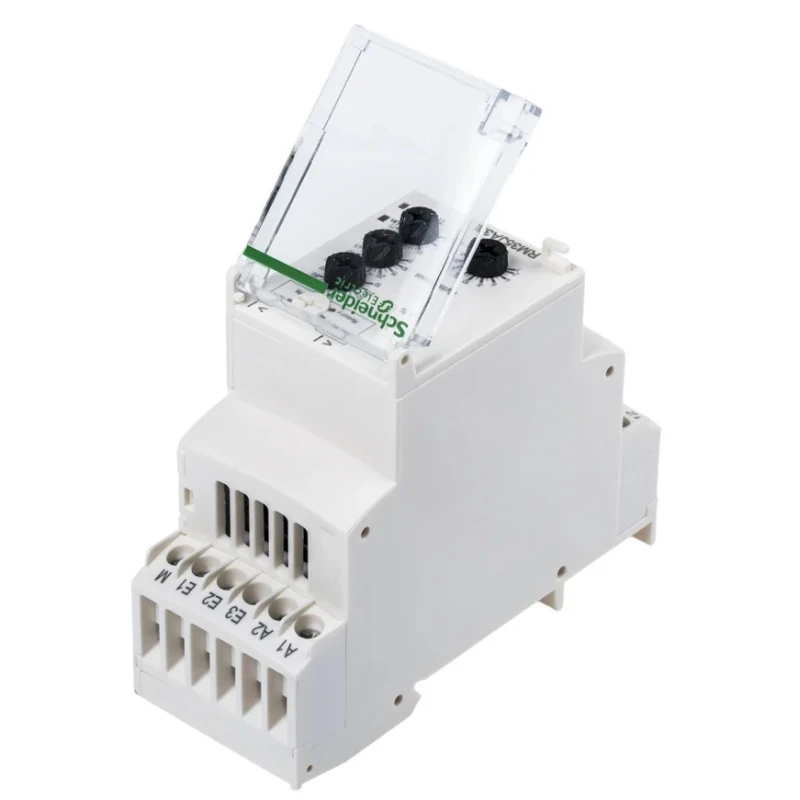

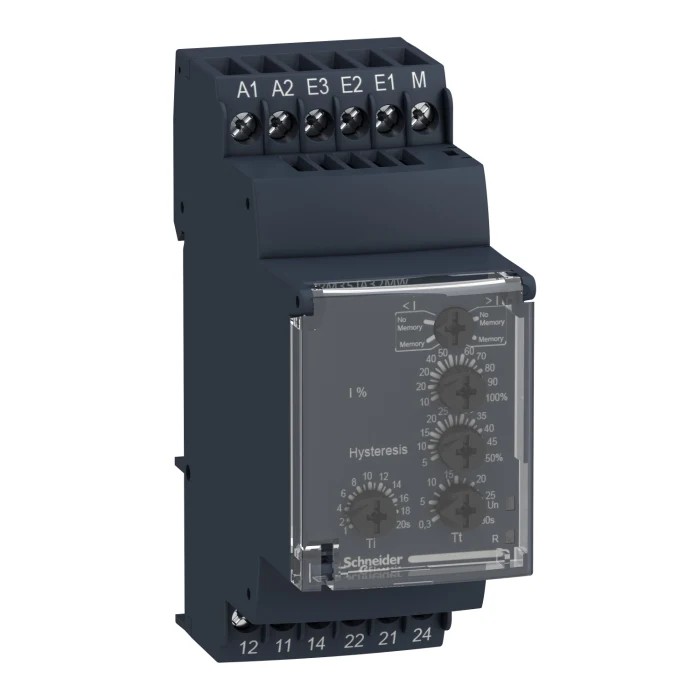

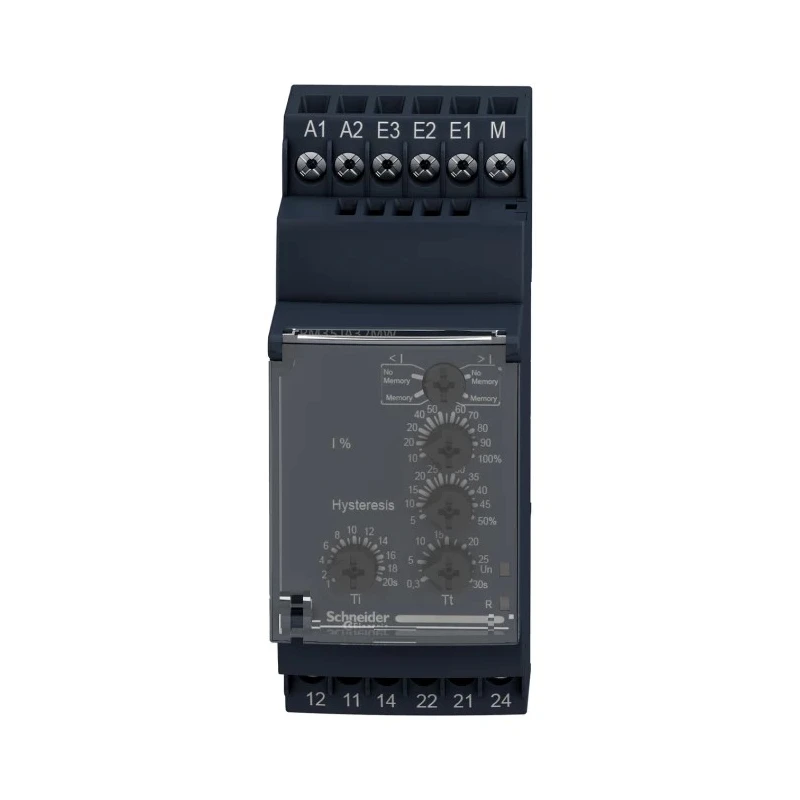

Schneider Electric 1 Phase DPDT Monitoring Relay, DIN Rail Mount, 0.15A to 15A, 240 V dc/ac RM35JA32MW

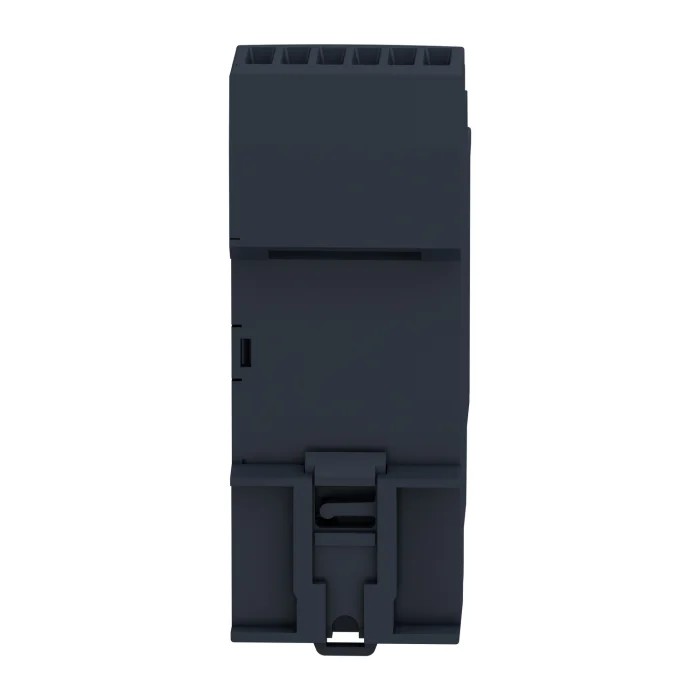

Schneider Electric RM35JA32MW monitoring relay is designed for precise current sensing in single-phase electrical circuits. Featuring a double pole double throw (DPDT) contact configuration, this relay provides reliable control for overcurrent and undercurrent conditions, thus protecting machinery and equipment from electrical faults. The device mounts easily on standard DIN rails, making installation straightforward and efficient.

This monitoring relay is capable of monitoring currents ranging from 0.15A to 15A, suitable for a wide array of industrial applications. The adjustable time delay feature allows customization of trip response between 0.3 and 30 seconds to fit specific operational needs. The relay safely handles switching voltages up to 250V AC/DC, ensuring compatibility with common industrial power supplies.

Equipped with screw terminals, this relay ensures secure and durable electrical connections. Its IP30 and IP20 ratings provide adequate protection against ingress of solid objects in many industrial environments. The unit operates reliably in ambient temperatures from -20°C to 50°C, covering typical conditions found in electrical control panels.

Measuring 90mm in height, 72mm in length, and 35mm in width, the compact design facilitates integration into control systems without requiring excessive space. It is part of the Harmony Control series by Schneider Electric, known for quality and performance in control and signaling products.

Common applications include monitoring electrical phase current in automation systems, protecting motors and pumps from current irregularities, and providing real-time current measurement for industrial equipment. The device ensures operational reliability and enhances safety by triggering alarms or disconnecting circuits when currents exceed preset thresholds.

Monitors current range from 0.15A to 15A with high accuracy. Adjustable time delay between 0.3 to 30 seconds allows tailored response. Supports a maximum switching voltage of 250V AC/DC. Screw type terminals for secure electrical connections.

Compact form factor for DIN rail mounting in control panels. Operates safely in temperatures ranging from -20°C to 50°C. IP30 and IP20 protection ratings suitable for industrial use. Explore more Schneider Electric Monitoring Relays and control products on EnvMart for advanced industrial and electrical solutions.
