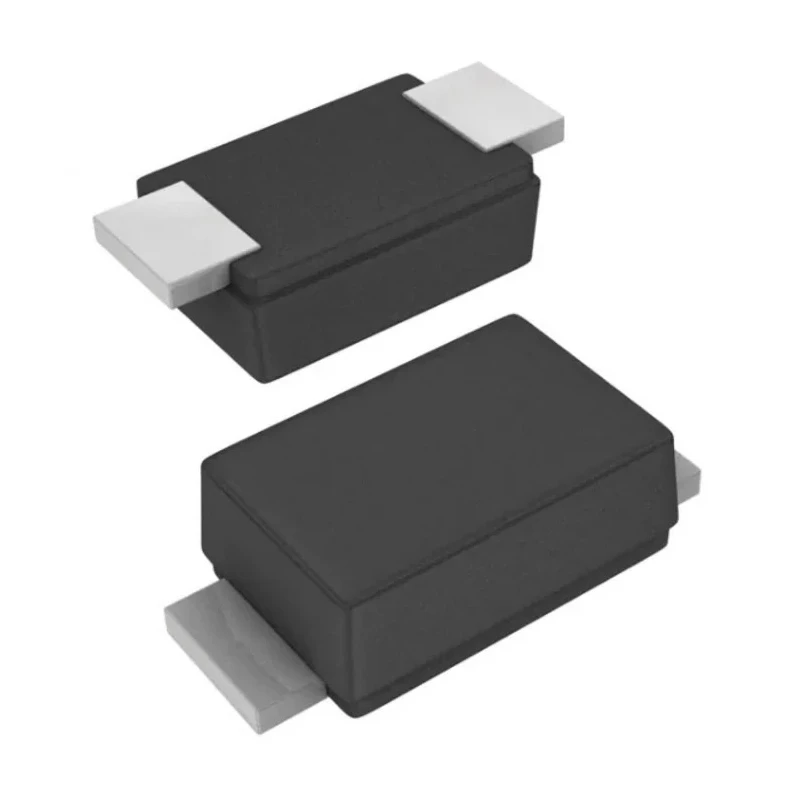

Vishay 100 V 1 A Surface Mount Schottky Rectifier Diode 2-Pin DO-219AB SS1FH10-M3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 3.9mm |
| Model | SS1FH10-M3/H |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | SS1FH10 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-219AB |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 160μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 0.8V |
Key Features
- Features an extremely low forward voltage drop for efficiency.
- Halogen-free and lead (Pb) free construction for environmental compliance.
- High surge capability with a peak non-repetitive forward surge current of 40 A.
- Compact 2-pin DO-219AB package suitable for automated placement.
- Wide operating junction temperature range from -55°C to 175°C for reliability.
- Low leakage current and low power losses for high efficiency.
- Ideal for automotive, DC/DC converters, freewheeling, and polarity protection applications.
- Meets MSL level 1 per J-STD-020 with a maximum peak reflow temperature of 260°C.
Product Description
The Vishay SS1FH10-M3/H is a surface mount Schottky barrier rectifier diode designed for demanding industrial and automotive applications. Rated for a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 100 V, it offers reliable performance in power conversion and protection circuits.
This rectifier features an extremely low forward voltage drop (maximum 0.8 V) reducing power losses and improving energy efficiency in circuits. The device has high surge capability with a peak non-repetitive forward surge current rated at 40 A, making it suitable for transient conditions.
The compact 2-pin DO-219AB package ensures a low-profile design for space-constrained surface mount assemblies. It supports automated PCB placement processes and meets moisture sensitivity level 1 (MSL1) standards according to J-STD-020, with a maximum lead-free reflow temperature of 260°C.
Operating junction temperature ranges from -55°C to 175°C, allowing the diode to function reliably in harsh thermal environments. Its lead (Pb) free and halogen-free construction aligns with environmental safety standards.
Common industrial and automotive applications include DC/DC converters, automotive polarity protection, freewheeling diodes, and low voltage high frequency inverters. Although not certified with automotive standard AEC-Q101, the diode is suitable for robust usage in demanding environments.
Extremely low forward voltage drop for higher efficiency. Halogen free and lead-free compliant component. High surge current capability with 40 A peak forward surge current. Compact DO-219AB package, ideal for surface mount assembly.
Wide operational temperature range: -55°C to 175°C. Low leakage and power loss characteristics. Meets moisture sensitivity level 1 standard per J-STD-020. Applications in automotive and industrial power conversion. Explore related Vishay Schottky Diodes and Rectifiers at EnvMart for reliable semiconductor solutions tailored to your industrial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1 A.
It has a peak reverse repetitive voltage rating of 100 V.
The maximum forward voltage drop is 0.8 V.
The diode can handle a peak non-repetitive forward surge current of 40 A.
The operating junction temperature range is from -55°C to 175°C.
It comes in a compact 2-pin DO-219AB package, suitable for surface mount applications.
The dimensions are 3.9 mm in length, 1.9 mm in width, and 1.08 mm in height.
The peak reverse current is rated at 160 μA.
Yes, it is suitable for automotive applications such as polarity protection and DC/DC converters.
Yes, it features halogen-free and lead (Pb) free construction for environmental compliance.
It meets moisture sensitivity level 1 (MSL1) per J-STD-020.
This component is a Schottky barrier rectifier diode.
