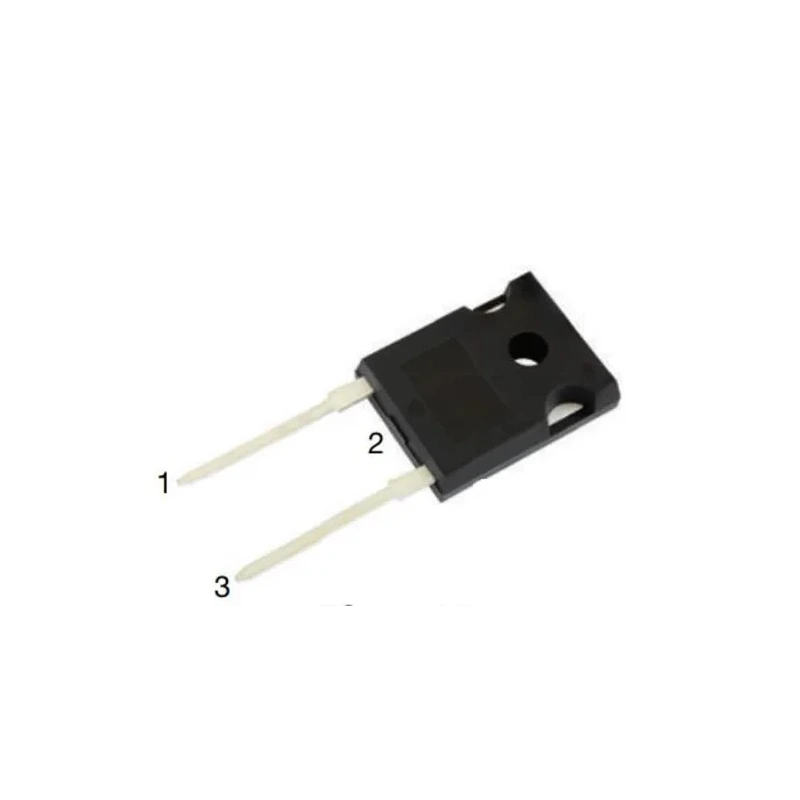

Vishay 600 V 120 A Rectifier & Schottky Diode General Purpose TO-247AD 2L VS-E5PX6006LHN3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-E5PX6006LHN3 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD 2L |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 120A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 480A |
| Maximum Forward Voltage Vf | 2.2V |
| Peak Reverse Recovery Time trr | 67ns |
Key Features
- Designed for low conduction and switching losses to enhance efficiency.
- Ideal for soft switched and resonant converters as well as medium frequency hard switching converters.
- Optimized for high-speed LLC output rectification in EV/HEV on-board battery chargers.
- Supports a maximum operating junction temperature of 175 °C.
- AEC-Q101 qualified and meets JESD 201 class 1A whisker test standards.
- Features hyperfast switching and optimized Qrr for best in class forward voltage drop.
- Polyimide passivation ensures durability in demanding applications.
- Peak reverse repetitive voltage of 600 V and peak reverse current of 500 μA.
Product Description
Vishay VS-E5PX6006LHN3 Rectifier & Schottky Diode is a high-performance general purpose semiconductor device designed for power electronics applications requiring efficient rectification and fast switching.
The device comes in a robust TO-247AD 2L through-hole package, facilitating easy mounting and excellent thermal management. It supports a maximum continuous forward current of 120 A and can withstand peak reverse repetitive voltages of up to 600 V.
Engineered with hyperfast switching capabilities and optimized for low conduction losses, this diode is ideal for use in soft-switched and resonant converters, as well as medium frequency hard switching converters found in industrial and automotive applications, including EV and HEV battery chargers.
Its maximum operating junction temperature of 175 °C allows reliable operation under demanding thermal conditions. The diode features polyimide passivation for enhanced durability and longevity in harsh environments.
Additional technical benefits include best-in-class forward voltage drop combined with optimized switching losses trade-offs, making it suitable for high-speed operations requiring efficient power management.
The product is AEC-Q101 qualified, conforming to automotive quality standards and meets JESD 201 class 1A whisker test requirements, assuring reliability and robustness in automotive electronics.
Low conduction and switching losses enhance efficiency. Suitable for soft-switched, resonant, and medium frequency hard switching converters. Ideal for high-speed LLC output rectification stages in EV/HEV on-board battery chargers.
Max operating junction temperature of 175 °C supports demanding thermal environments. AEC-Q101 qualified and meets stringent automotive standards. Polyimide passivation provides high durability. Peak forward surge current rating of 480 A.
Operating temperature range from -55 °C to 175 °C.
This diode serves applications in industrial power conversion, automotive onboard charging systems, and other high-efficiency power supplies requiring reliable, fast-switching rectifiers. The general purpose nature of the diode makes it versatile for a wide range of power electronic designs.
Explore more Vishay semiconductors and diodes on EnvMart to find technical solutions for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 120 A.
It has a peak reverse repetitive voltage rating of 600 V.
The operating temperature range is from -55 °C to 175 °C.
This diode comes in a TO-247AD 2L through-hole package.
The peak reverse current for this model is rated at 500 μA.
The maximum forward voltage drop is 2.2 V.
The peak non-repetitive forward surge current rating is 480 A.
The peak reverse recovery time is 67 ns.
Yes, it is AEC-Q101 qualified and meets automotive quality standards.
It is suitable for industrial power conversion, automotive onboard charging systems, and high-efficiency power supplies.
This model complies with RoHS standards.
Polyimide passivation enhances the durability of this diode in demanding applications.
