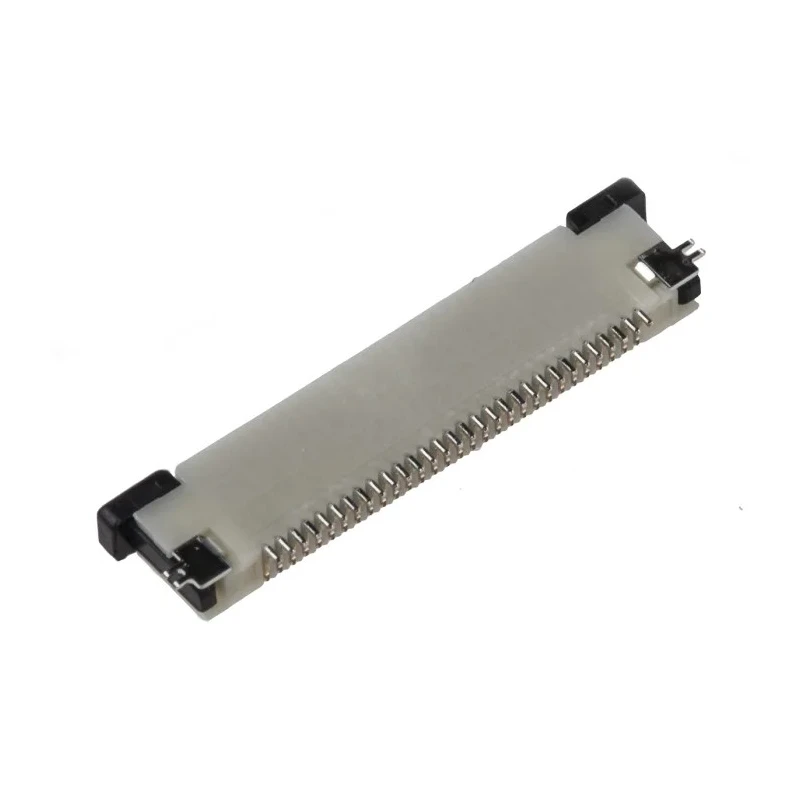

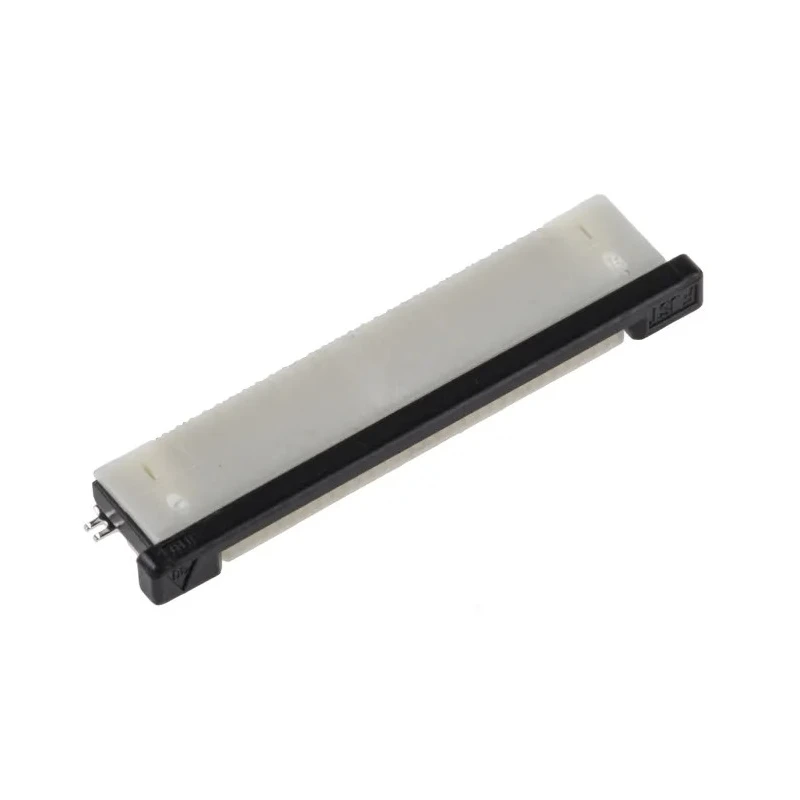

JST 0.5 mm Pitch 30 Way Right Angle Female FPC Connector Surface Mount Solder 30FLZ-RSM2-TB(LF)(SN)(P)

Free Delivery in India | Lowest Global Shipping Charges

JST 0.5 mm Pitch 30 Way Right Angle Female FPC Connector Surface Mount Solder 30FLZ-RSM2-TB(LF)(SN)(P)



Category FPC Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	50, 50V ac
Brand	JST
Orientation	Right Angle
Current	500mA
Model	30FLZ-RSM2-TB(LF)(SN)(P)
Mount Type	Surface
Housing Material	Polyamide 6T
Contact Material	Phosphor Bronze
Series	FLZ
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Easy-On FFC/FPC Connector
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	0.5mm
Contact Plating	Tin
Number of Contacts	30
Contact Gender	Female
Connector Gender	Female
Insertion Force	ZIF
Contact Position	Top, Bottom

Key Features

Compact 0.5 mm pitch design enables high-density PCB connections.
Right angle orientation facilitates tight space interconnections.
Zero insertion force (ZIF) mechanism extends connector lifespan.
Phosphor bronze contacts with tin plating for reliable conductivity.
Heat resistant polyamide 6T housing is SMT reflow solder compatible.
Supports current up to 500 mA and voltage rating of 50 V AC.
Operating temperature range from -25°C to 85°C.
Incorporates locking mechanism and easy-on FFC/FPC subtype.

Product Description

JST 30FLZ-RSM2-TB(LF)(SN)(P) is a 0.5 mm pitch FPC connector featuring 30 contacts in a right angle female configuration designed for surface mount solder termination. This connector belongs to the FLZ series known for its compact, space-saving design allowing PCB interconnections in restricted areas. The zero insertion force (ZIF) mechanism greatly reduces wear and tear, enhancing connector durability over repeated mating cycles. The connector housing is composed of heat resistant polyamide 6T, making it compatible with SMT reflow soldering processes, and features inline surface mount tails for straightforward inspection.

Constructed with phosphor bronze contacts plated with tin, it ensures reliable electrical performance. This connector supports a current capacity of 500 mA and a voltage rating of 50 V AC. It is rated for operating temperatures between -25°C and 85°C, suitable for diverse industrial and electronic applications requiring dependable flexible printed circuit connections.

The design includes a locking mechanism for secure engagement and accommodates top and bottom contact positions within a single row. This model supports both normal and reverse FPC configurations, enhancing design flexibility.

Typical use cases include electronic assemblies in communication devices, industrial instrumentation, and consumer electronics where size and reliable connections are critical. Manufactured in Japan, this product meets high standards of quality and performance expected in demanding applications.

Compact 0.5 mm pitch enables dense PCB layout. Right angle female connector for space optimization. ZIF mechanism prolongs connector lifespan. Heat-resistant polyamide housing supports soldering. Phosphor bronze, tin-plated contacts ensure conductivity.

Current rating of 500 mA and voltage rating of 50 V AC. Operating temperature range from -25°C to 85°C for robustness. Locking mechanism ensures secure connection. Single row with top and bottom contacts for versatile design.

Made in Japan for assured quality. Explore the full range of FPC Connectors at EnvMart for diverse electronic and industrial applications.
