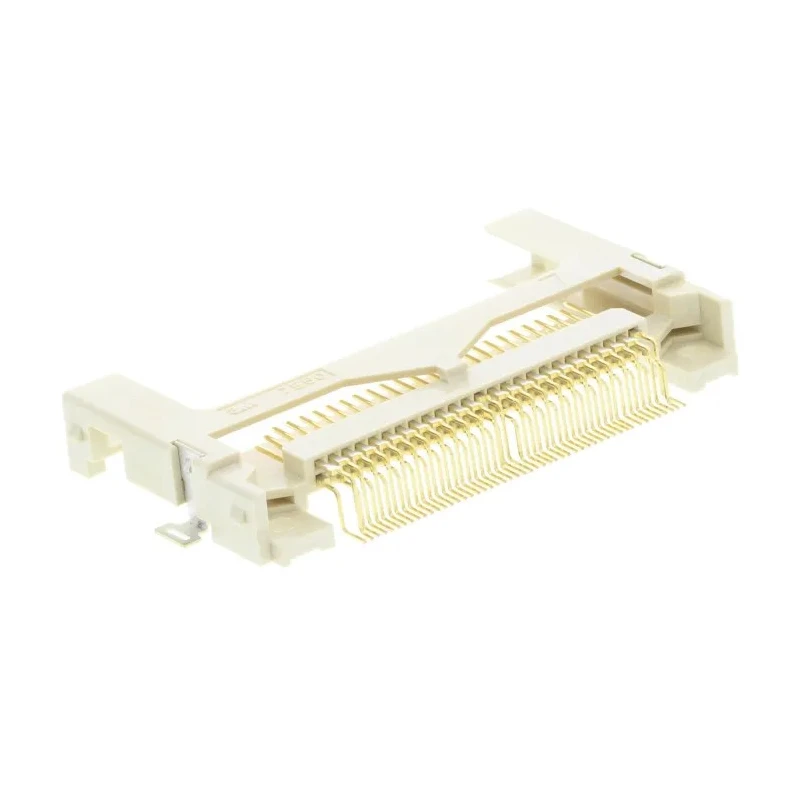

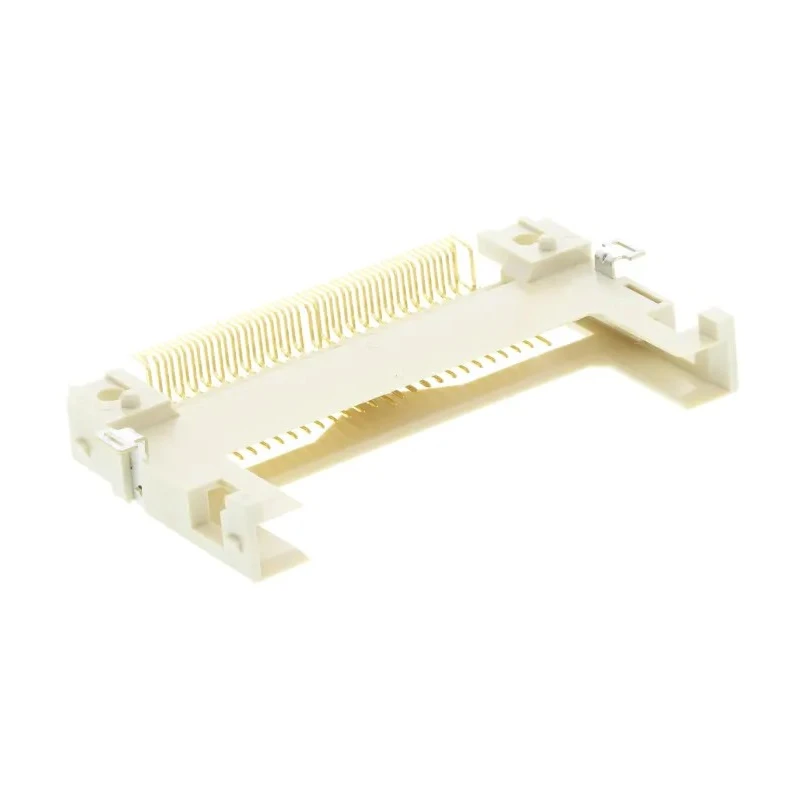

3M 50 Way Right Angle Auto Eject Compact Flash Memory Card Connector Surface Mount Solder 7E50 Series N7E50-7516PK-20

Free Delivery in India | Lowest Global Shipping Charges

3M 50 Way Right Angle Auto Eject Compact Flash Memory Card Connector Surface Mount Solder 7E50 Series N7E50-7516PK-20



Category Memory Card Connector Brand 3M Condition New

Specifications

Country of Origin	Japan
Brand	3M
Orientation	Right Angle
Model	N7E50-7516PK-20
Gender	Male
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	7E50
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.635mm
Contact Plating	Gold over Nickel
Number of Contacts	50
Card Type	Compact Flash
Insertion/Removal Method	Auto Eject
Dimensions of the flash board (mm)	36 x 43 x 3.3 mm
Connector,PCB,memory card socket,compact flashBrand	3M

Key Features

Features a 50-contact male compact flash card interface arranged in 2 rows.
Right angle orientation ensures space-efficient PCB mounting.
Auto eject mechanism facilitates easy insertion and removal of flash memory cards.
Contact material is copper alloy with gold over nickel plating for durability.
Housing is made from Liquid Crystal Polymer to withstand temperatures up to 85°C.
Housing supports operating temperatures from -55°C to 85°C.
Compact design with 0.635 mm pitch and dimensions of 36 x 43 x 3.3 mm.
Meets CompactFlash Type II, Long Guide standards compatible with PCMCIA.

Product Description

3M N7E50-7516PK-20 is a 50 Way Right Angle Auto Eject Compact Flash Memory Card Connector designed for surface mount soldering. It belongs to the 7E50 series and offers a reliable and compact solution for memory card interfacing.

This Memory Card Connector features a male Compact Flash card type with 50 contacts arranged in two rows, pitch of 0.635 mm, and right-angle orientation that enables space-efficient PCB layout. The contact material is copper alloy with gold over nickel plating, providing excellent conductivity and corrosion resistance.

The housing utilizes Liquid Crystal Polymer, offering excellent mechanical strength and stability, supporting operation in temperatures ranging from -55°C to 85°C. The connector’s auto eject feature simplifies the insertion and removal of memory cards, enhancing user convenience and reducing wear.

The 3M CF Card Holder socket mounts onto 3M’s CompactFlash Type II, Long Guide, Surface Mount Headers and complies electrically with PCMCIA standards. A guide mechanism facilitates smooth insertion/extraction, similar to PCMCIA headers.

Compact and precise dimensions of 36 x 43 x 3.3 mm make this connector suitable for Industrial, Electronics, Computing, and Telecommunications applications where space and reliability are critical.

Features a 50-contact male compact flash card interface arranged in 2 rows. Right angle orientation ensures space-efficient PCB mounting. Auto eject mechanism facilitates easy insertion and removal of flash memory cards.

Contact material is copper alloy with gold over nickel plating for durability. Housing is made from Liquid Crystal Polymer to withstand temperatures up to 85°C. Compact design with 0.635 mm pitch and dimensions of 36 x 43 x 3.3 mm.

Meets CompactFlash Type II, Long Guide standards compatible with PCMCIA. Suitable for industrial, computing, and electronic applications requiring compact, durable memory card connections.
