JST 1.5 mm Pitch 10 Contact Right Angle Surface PCB Header Shrouded S10B-ZR-SM4A-TF (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST 1.5 mm Pitch 10 Contact Right Angle Surface PCB Header Shrouded S10B-ZR-SM4A-TF (LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	50V
Brand	JST
Orientation	Right Angle
Current	1A
Model	S10B-ZR-SM4A-TF (LF)(SN)
Mount Type	Surface
Contact Material	Brass
Series	ZH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The connector features a 1.5 mm pitch with 10 male contacts arranged in a single row.
Constructed with brass contact material and tin plating for enhanced conductivity and corrosion resistance.
Designed for surface mount technology with a shrouded right-angle orientation for space-saving PCB layouts.
Supports a current rating of 1 amp and a voltage rating of 50 volts for low power applications.
Operating temperature range from -25°C to +85°C ensures stability in various environments.
Termination is by soldering, providing reliable mechanical and electrical connection on PCB.
This connector is UL Recognized, CSA Certified, and TUV Certified for quality assurance.

Product Description

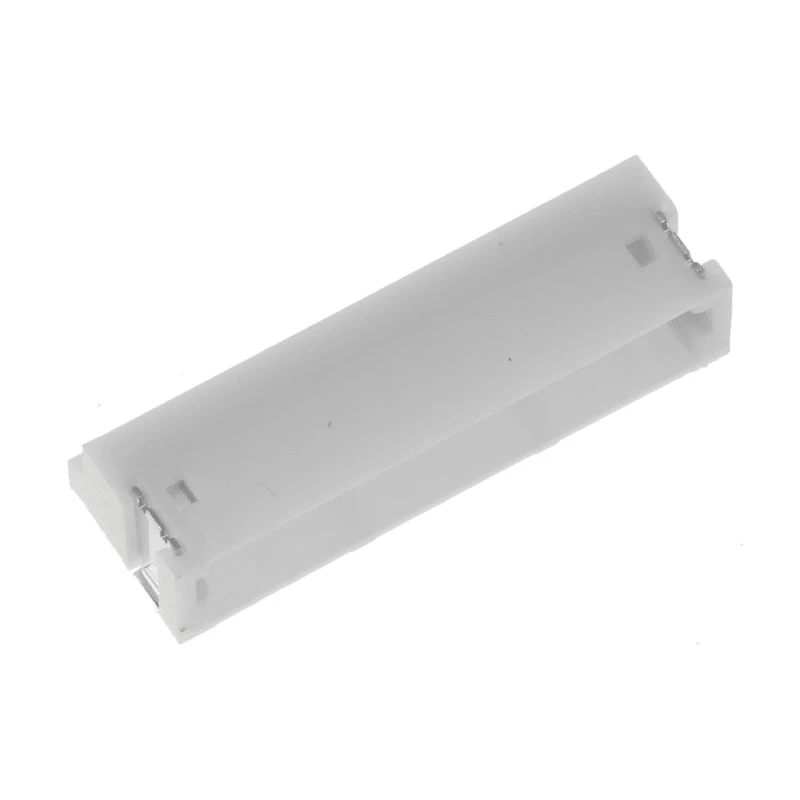

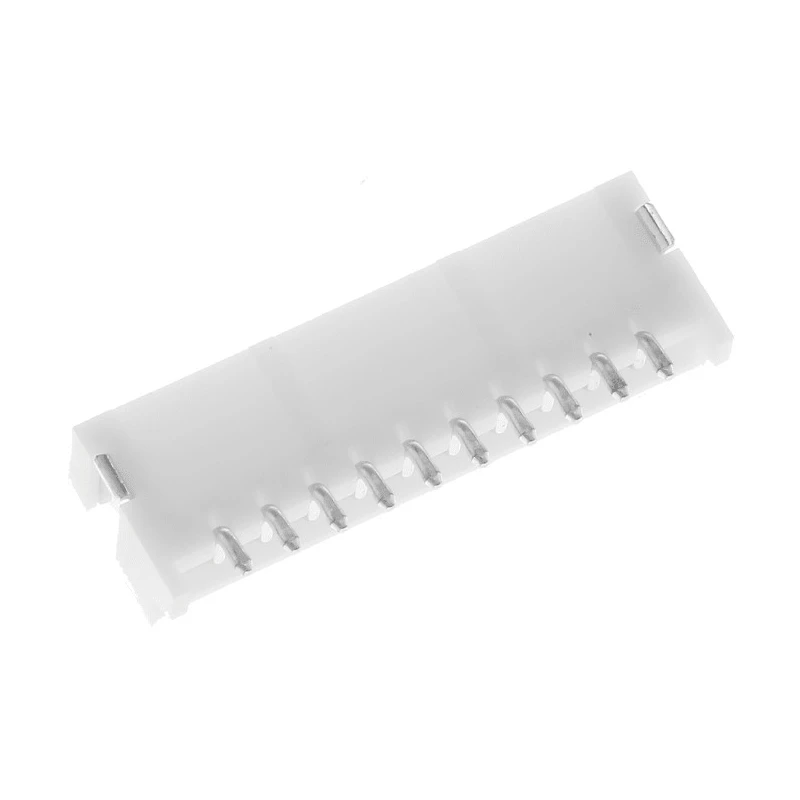

JST S10B-ZR-SM4A-TF (LF)(SN) is a 1.5 mm pitch ZH Series right angle surface PCB Header with 10 male contacts organized in a single row. It is a shrouded, side entry SMT connector designed for wire-to-board applications where compactness and space efficiency are critical.

Manufactured using brass for the contacts and tin plating for improved conductivity and resistance to corrosion, this component offers reliable performance in electronic assemblies. It supports up to 1 amp current and 50 volts voltage, suitable for low power circuit board designs.

The connector's surface mount type and right-angle orientation reduce overall PCB height and optimize board space, making it ideal for compact electronic devices in industrial, automation, and consumer electronics sectors.

With a wide operating temperature range of -25°C to 85°C, it is robust enough for varying environmental conditions. The solder termination ensures solid and durable connections during PCB assembly processes.

This product is UL Recognized (E60389), CSA Certified (LR20812), and TUV Certified (R9351092), affirming its compliance with industrial quality standards. The connector provides 10 contacts with a 1.5 mm pitch in a shrouded housing for easy and secure mating.

The brass contacts with tin plating deliver excellent electrical performance and durability. Right angle orientation and surface mount style optimize PCB layout and assembly. Rated for 1 amp current and 50 volts voltage supporting versatile low power applications.

Wide temperature operation from -25°C to 85°C ensures reliability across diverse conditions. Solder termination method provides secure connections on PCB. UL, CSA, and TUV certifications guarantee safety and quality compliance.

This JST ZH Series connector is widely used in electronic manufacturing industries for creating compact, efficient, and reliable wire-to-board connections. Easier to integrate on PCBs with high-density layouts, it suits applications in industrial controls, instrumentation, consumer electronics, and communication equipment.

Browse more high-quality PCB connectors and headers from leading brands at EnvMart for your electronic design needs.
