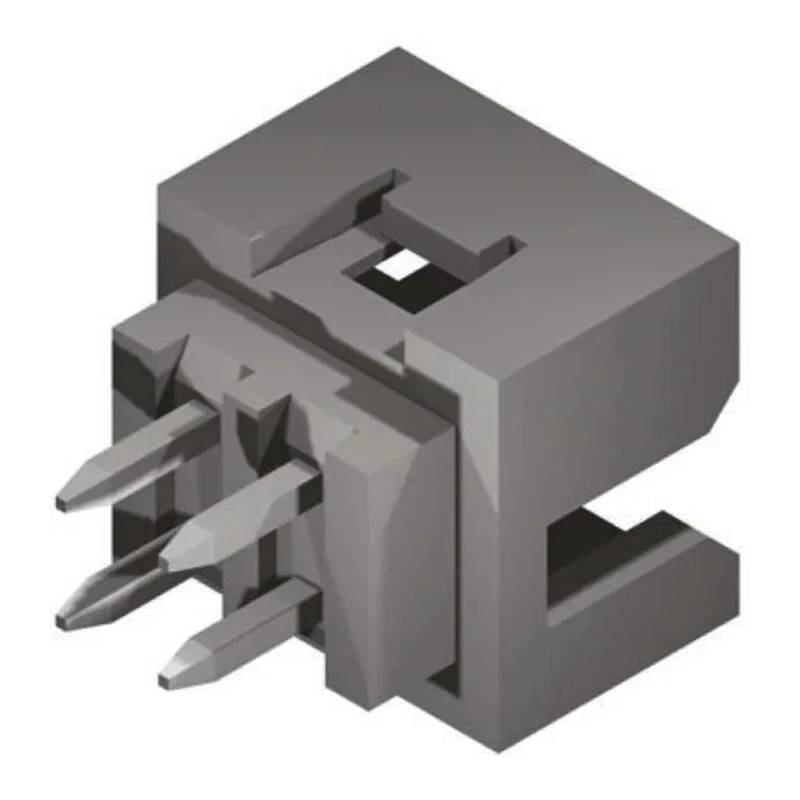

Molex Milli-Grid Series Straight Through Hole PCB Header, 4 Contacts, 2 mm Pitch, 2 Row, Shrouded 87831-0441

Molex 87831-0441 PCB Header is a high-quality Milli-Grid Series straight through hole connector featuring 4 contacts arranged in 2 rows with a 2 mm pitch. This shrouded PCB header is designed for wire-to-board connections, providing reliable electrical performance and mechanical protection.

The connector's high density 2.00 x 2.00 mm grid pattern offers exceptional design flexibility for various board-to-board and cable-to-board applications. The shrouded design protects delicate contacts from damage, while a centre polarization slot engages with mating receptacles to prevent mismating and ensure correct installation.

Additional mechanical security is provided by centre or side locking windows, creating a secure mating connection. Kinked solder tails secure the header to the PCB, and locating pegs support automated insertion, increasing manufacturing efficiency.

Constructed with robust brass contacts plated in gold, this PCB header maintains excellent conductivity and corrosion resistance. It operates reliably under temperatures ranging from -55°C to 105°C and supports electrical ratings of 125 volts and 2 amps, making it suitable for diverse industrial and commercial electronic applications.

Common use cases include printers, fax machines, copiers, servers, routers, switches, automotive audio systems, GPS devices, security systems, alarms, set-top boxes, and digital media players, reflecting its versatility and dependable performance in signal transmission.

The Molex 2.0 mm Milli-Grid interconnection system features shrouded and unshrouded headers, single and dual row receptacles, connector housings, and crimp terminals, catering to multiple connection requirements with consistent reliability.

High density 2.00 x 2.00 mm grid design. Shrouded design for contact protection. Centre polarization slot to prevent mismating. Centre or side locking windows for secure mating connection. Single or dual side slots available.

Kinked solder tails for secure PCB retention. Locating pegs for automatic insertion process. Brass contact material with gold plating. Operating temperature from -55°C to 105°C. Rated 125V voltage and 2A current. Explore comprehensive Molex PCB Headers and related connectors on EnvMart for your electronic component needs.
