Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 2 Contact, 3 mm Pitch, 2 Row, Shrouded 43045-0202

Free Delivery in India | Lowest Global Shipping Charges

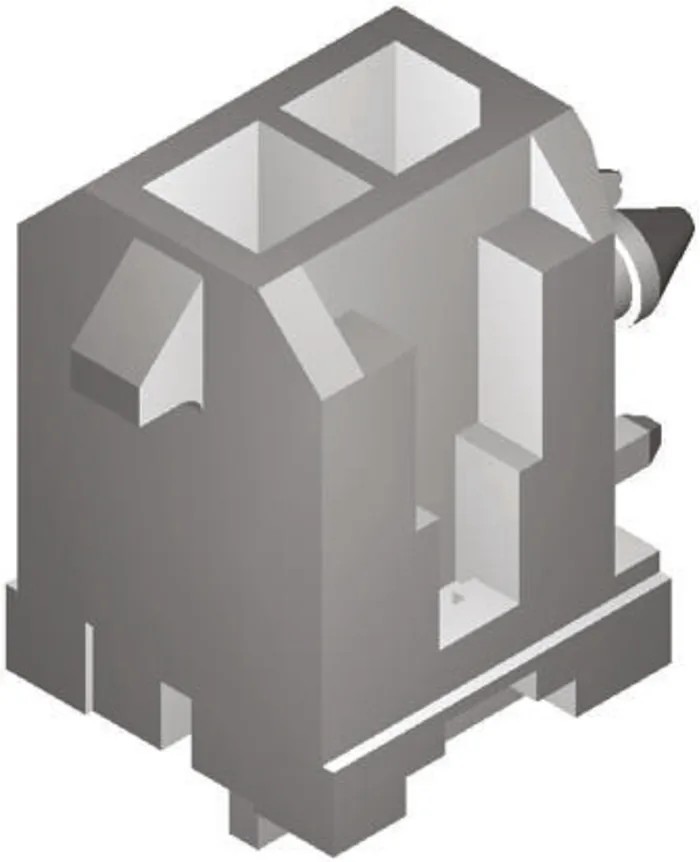

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 2 Contact, 3 mm Pitch, 2 Row, Shrouded 43045-0202

Name: Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 2 Contact, 3 mm Pitch, 2 Row, Shrouded 43045-0202
Brand: Molex
SKU: 206179
Price: 1.58 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	5A
Mount Type	Through Hole
Housing Material	High Temperature Thermoplastic
Contact Material	Brass
Series	Micro-Fit 3.0
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	3mm
Contact Plating	Gold
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

High current carrying capacity of up to 5A in a compact footprint.
Constructed with high temperature thermoplastic housing suitable for IR reflow soldering.
Right angle orientation with through hole mount type for PCB applications.
Gold-plated brass contacts ensure reliable electrical performance and corrosion resistance.
Incorporates plastic peg PCB locks for secure mounting and positive latching to prevent disconnection.
Operating temperature range from -40°C to 125°C supports varied environments.
Compatible with SMT processes reducing production complexity and costs.
Designed for low to mid power wire-to-board applications in industrial and commercial electronics.

Product Description

Molex 43045-0202 Micro-Fit 3.0 Series Right Angle Through Hole PCB Header is engineered for compact, reliable electrical connections with a 3 mm pitch dual row configuration. This shrouded PCB header provides 2 male contacts made from gold-plated brass, designed to carry up to 5A current, making it suitable for diverse power distribution needs.

The housing is manufactured from high temperature UL 94V-0 liquid crystal polymer, capable of withstanding temperatures up to 265°C during IR reflow soldering processes. Its right angle orientation and through-hole mounting ensure robust mechanical stability on PCB assemblies.

The connector system features positive latching with locking ramps to secure mating components and prevent accidental disconnection, supplemented by snap-in plastic peg PCB locks enhancing retention on the board. Fully isolated dual beam terminals minimize electrical arcing, improving reliability and safety.

Operating temperature ranges from -40°C to 125°C make this connector adaptable for industrial, military COTS, solar power, consumer appliances, telecommunications, data communications equipment, medical devices, and gaming terminals.

This Micro-Fit 3.0 header is part of a compact power connector family optimized for wire-to-board applications where space, durability, and performance are critical. High current capacity with compact dual row, 3 mm pitch design.

Shrouded housing protects contacts and ensures correct mating. Gold-plated brass contacts for excellent conductivity and corrosion resistance. Plastic peg PCB locks and positive latch secure mechanical and electrical connection.

High temperature thermoplastic housing compatible with IR reflow soldering. Wide operating temperature range supports industrial and commercial applications. Through hole mount type supports PCB assembly reliability. Suitable for low to mid power wire-to-board applications.
