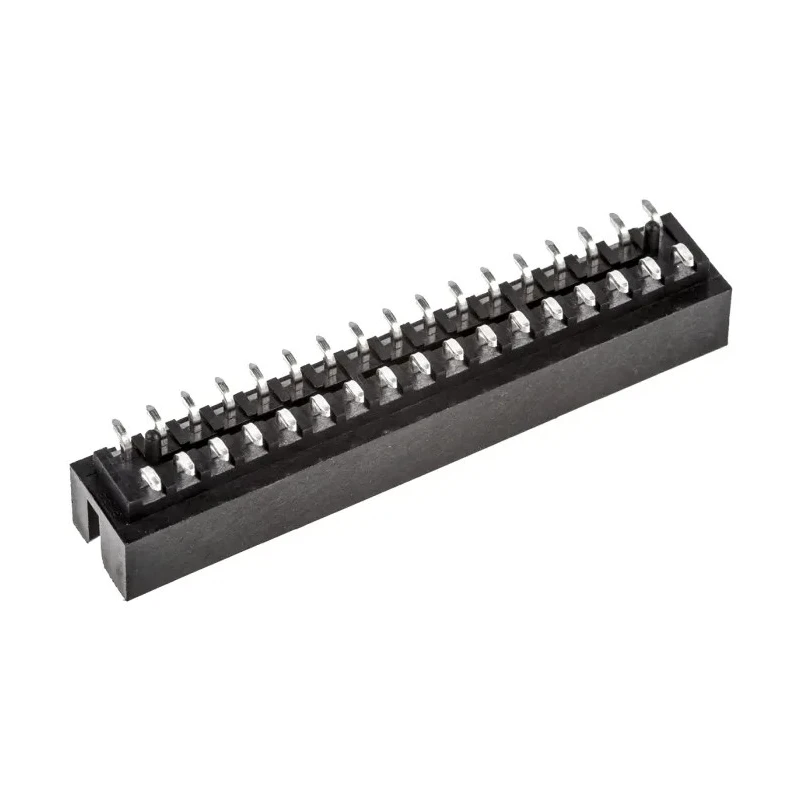

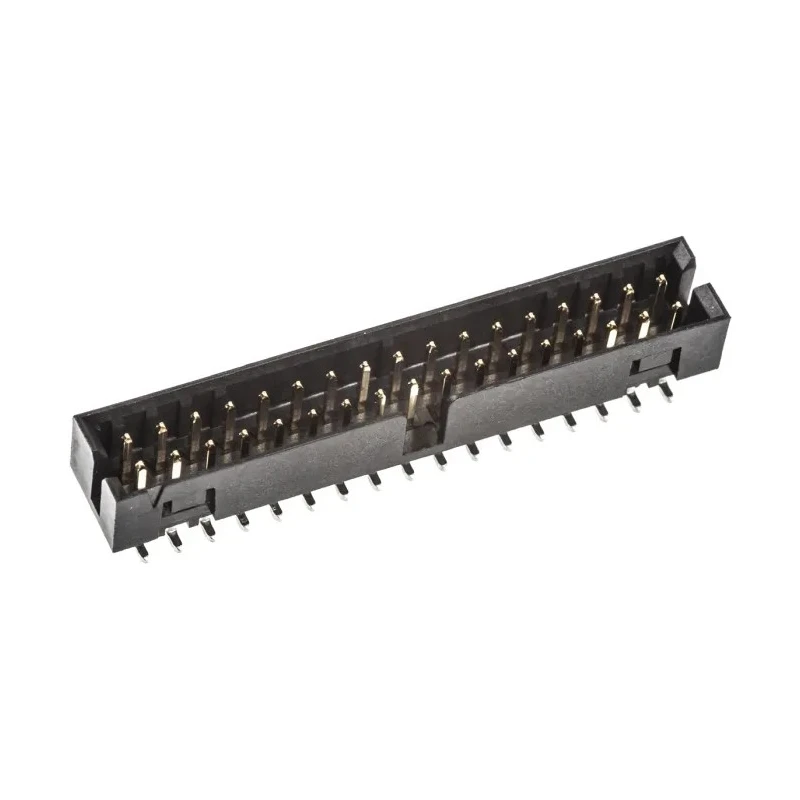

Molex Milli-Grid Series Straight Surface PCB Header 34 Contacts 2 mm Pitch 2 Row Shrouded 87832-3420

Molex 87832-3420 Milli-Grid Series straight surface PCB header is a high-density 2-row, 34 contact connector with 2 mm pitch designed for wire-to-board connection systems. It provides reliable performance for electronic applications requiring compact and durable PCB headers. The housing is made from sturdy nylon, offering excellent insulating properties and durability under industrial standards.

Contacts are crafted from phosphor bronze with a 0.38μm gold plating to ensure excellent electrical conductivity and corrosion resistance. This header supports a current rating of 2A and a maximum operating voltage of 125V, making it suitable for low power electronic equipment.

It is shrouded to protect the contacts, enhancing safety and mechanical stability. The termination type is solder, optimized for surface mount technology (SMT) assembly on printed circuit boards.

The header is rated for operating temperatures ranging from -55°C to 105°C, supporting a wide range of environmental conditions common in industrial, commercial, and manufacturing applications. The mating pin length of 2 mm ensures a secure connection with compatible receptacles such as the Molex 51110 series.

This connector is part of the Milli-Grid interconnection system, which is based on a 2x2 mm grid pattern designed for both board-to-board and cable-to-board configurations, offering design flexibility for electronic device manufacturing.

The header features 34 male contacts on two rows spaced at 2 mm pitch. Nylon housing material ensures robustness and electrical protection. Phosphor bronze contacts with gold plating provide durable and reliable conductivity.

Current rating is 2A at a voltage of 125V. Shrouded design minimizes accidental contact and enhances safety. Compatible with Molex 51110 series receptacles for versatile PCB connections. Supports solder termination for surface mounting on PCBs.

Operating temperature from -55°C to 105°C fits most industrial environments.

This product is ideal for use in electronic manufacturing, industrial control systems, and other applications requiring robust PCB Headers. Molex’s Milli-Grid series connectors deliver high performance with compact size and reliable interconnection. Explore related connectors and electronic components for your assembly needs by browsing the Electronics & Electricals category on EnvMart.
