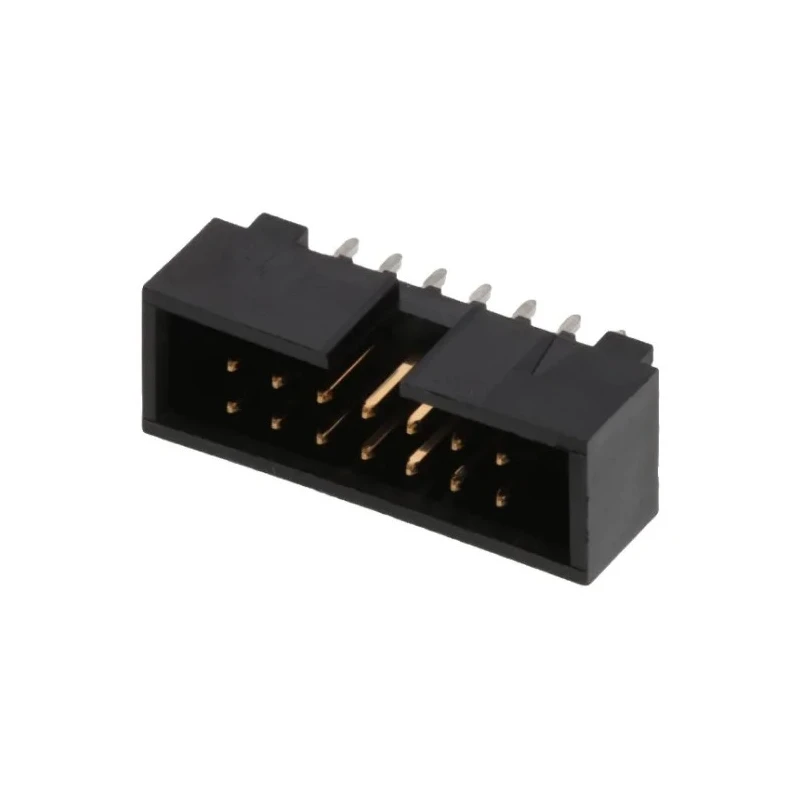

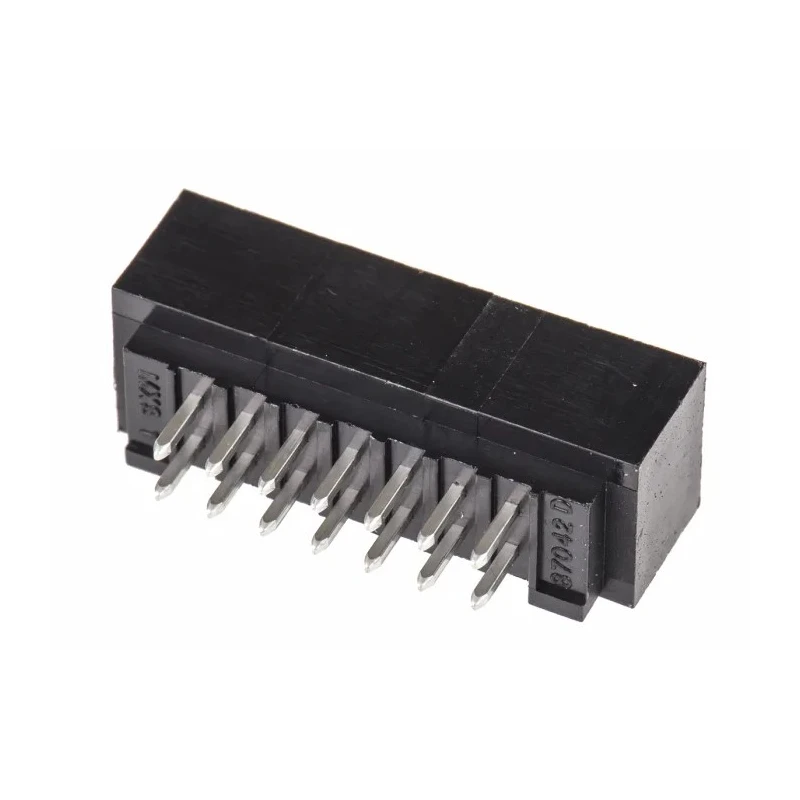

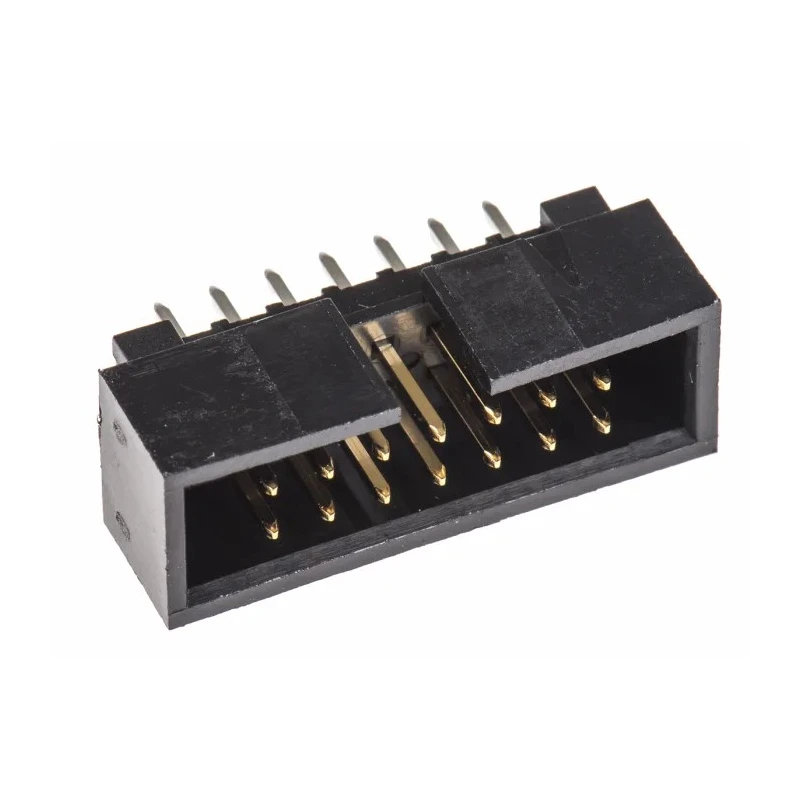

Molex C-Grid Series Vertical Through Hole PCB Header 14 Contacts 2.54 mm Pitch 2 Row Shrouded 70246-1404

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid Series Vertical Through Hole PCB Header 14 Contacts 2.54 mm Pitch 2 Row Shrouded 70246-1404

Name: Molex C-Grid Series Vertical Through Hole PCB Header 14 Contacts 2.54 mm Pitch 2 Row Shrouded 70246-1404
Brand: Molex
SKU: 206389
Price: 2.01 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Vertical
Current	2.5A
Mount Type	Through Hole
Contact Material	Phosphor Bronze
Series	C-Grid
Termination Type	Solder
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	14
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.43mm
Mating Pin Length	2.54mm

Key Features

Rated for 2.5A maximum current per contact ensuring reliable power distribution.
Phosphor bronze contacts with gold plating provide excellent conductivity and corrosion resistance.
Shrouded design reduces accidental disconnections and improves connection security.
Through hole mounting ensures strong, secure attachment to PCBs.
Supports operating temperatures from -40°C to 120°C suitable for industrial environments.
Ideal for signal transmission in automation and consumer electronics applications.
Compatible with PCB thickness of 1.60 mm for proper fit and functionality.
Male contact gender with 3.43 mm tail pin length and 2.54 mm mating pin length.

Product Description

Molex 70246-1404 C-Grid Series Vertical Through Hole PCB Header features a shrouded 14-contact design with 2.54 mm pitch and 2 rows. It is designed for wire-to-board connector system applications requiring robust electrical performance and secure mechanical mounting.

This PCB header accommodates a maximum current of 2.5A per contact and a voltage rating up to 250V DC, ensuring efficient and safe power and signal transmission across diverse electrical and automation systems. The phosphor bronze contacts with gold plating offer superior conductivity and resistance to corrosion, extending component longevity in demanding industrial conditions.

The shrouded configuration helps prevent misalignment and accidental disconnections, making it highly suitable for use in high-density PCB environments. Through hole mounting enhances mechanical stability, securing the header firmly on PCBs of 1.60 mm thickness.

Operating temperature range from -40°C to 120°C enables performance in harsh thermal environments, supporting use in automation controls, consumer electronics, and industrial equipment wiring setups.

Rated for 2.5A current per contact providing reliable power distribution. Gold-plated phosphor bronze contacts for enhanced conductivity and corrosion protection. Shrouded, vertical two-row design improves connection security.

Through hole termination ensures durable PCB attachment. Wide operating temperature range suitable for industrial applications. Designed for PCBs with thickness 1.60 mm for optimal fit. Male contact gender with defined tail and mating pin lengths for compatibility.

This Molex PCB header is ideal for professionals designing reliable and compact circuits in industrial, electronic, automation, and consumer device applications. Its quality construction and tested performance make it a dependable choice for PCB connector needs.

Explore the PCB Headers category on EnvMart to find compatible Molex components and related connectors for your projects.
