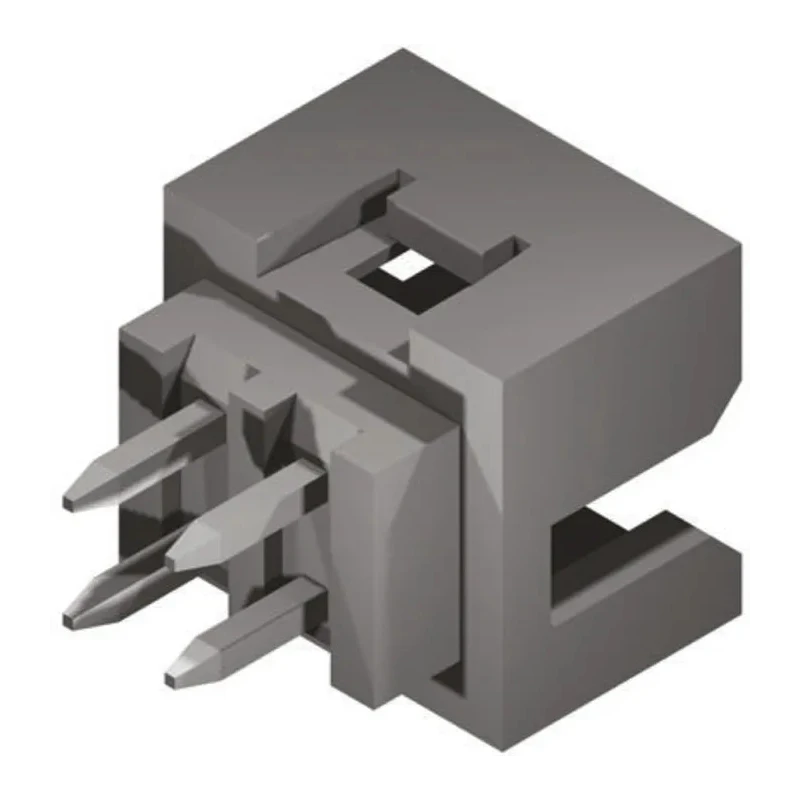

Molex Milli-Grid Series Straight Through Hole Shrouded PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Gold Plating 87831-1421

Free Delivery in India | Lowest Global Shipping Charges

Molex Milli-Grid Series Straight Through Hole Shrouded PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Gold Plating 87831-1421

Name: Molex Milli-Grid Series Straight Through Hole Shrouded PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Gold Plating 87831-1421
Brand: Molex
SKU: 206288
Price: 3.26 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	125V
Brand	Molex
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Phosphor Bronze
Series	Milli-Grid
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	14
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.5mm
Mating Pin Length	3.6mm

Key Features

High density 2.00 x 2.00 mm grid pitch for compact design.
Shrouded design protects contacts from damage.
Gold plated phosphor bronze contacts ensure reliable conductivity.
Kinked solder tails provide secure retention to PCB.
Centre polarization slot prevents mismating with polarisation key.
Centre or side locking windows secure mating connection.
Suitable for wire-to-board signal applications.
Operating temperature range from -55°C to 105°C.

Product Description

Molex 87831-1421 Milli-Grid Series Straight Through Hole Shrouded PCB Header is a high density connector with 14 contacts arranged in 2 rows and 2 mm pitch, designed for robust wire-to-board applications. Operating at 125V and with gold plated phosphor bronze contacts, it ensures dependable electrical performance and mechanical integrity.

The shrouded design protects the contacts from physical damage, increasing connector durability. Features such as centre polarization slot prevent mismating by engaging with corresponding keys on mating receptacles. Locking windows on centre or side provide secure connections to receptacles, preventing accidental disconnection during operation.

Kinked solder tails offer excellent retention on printed circuit boards during soldering, while locating pegs enable automatic insertion during manufacturing processes. The header supports operating temperatures from -55°C up to 105°C, enhancing suitability for demanding environments.

These connectors are widely used in industrial and commercial applications including printers, fax machines, servers, routers, automotive audio systems, GPS devices, security alarms, set-top boxes, and digital media players. The Milli-Grid system's 2.0 mm grid pattern allows flexible design integration for board-to-board and cable-to-board interconnections.

High density 2.00 x 2.00 mm grid pitch for compact installation. Shrouded header design for contact protection. Gold plated phosphor bronze contacts for reliable signal transmission. Centre polarization slot ensures correct mating.

Kinked solder tails secure PCB retention. Operating temperature range from -55°C to 105°C. Through hole mount type enables firm PCB mounting. Male contact gender with 14 contacts arranged in 2 rows. This component is essential for precise PCB connector applications in electronic manufacturing, automotive systems, telecommunications, and digital media hardware.
