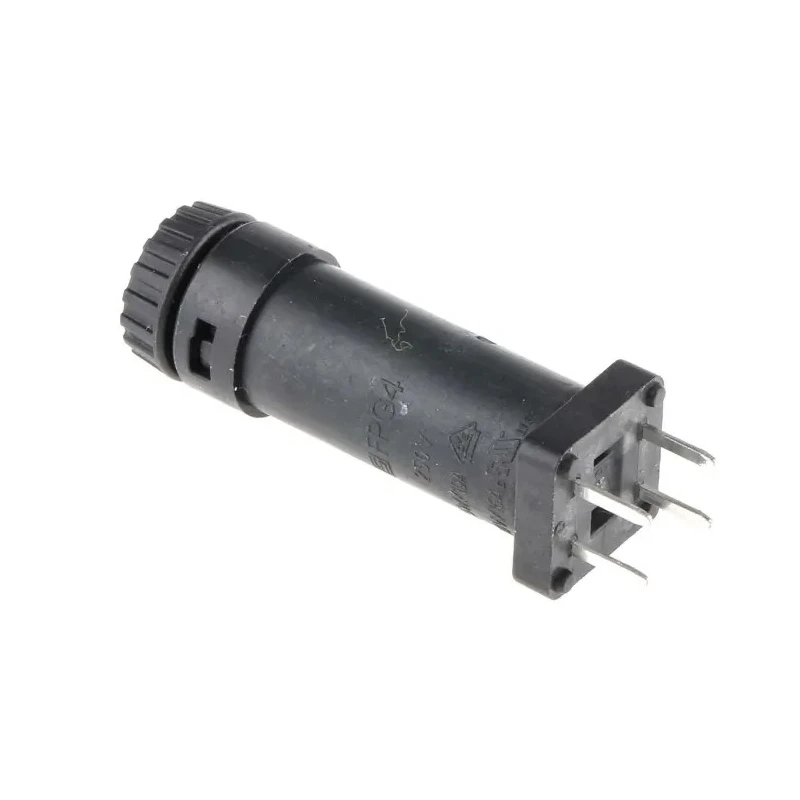

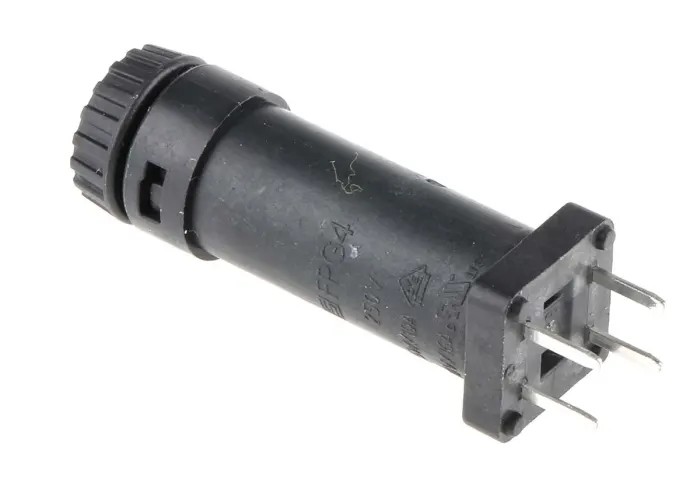

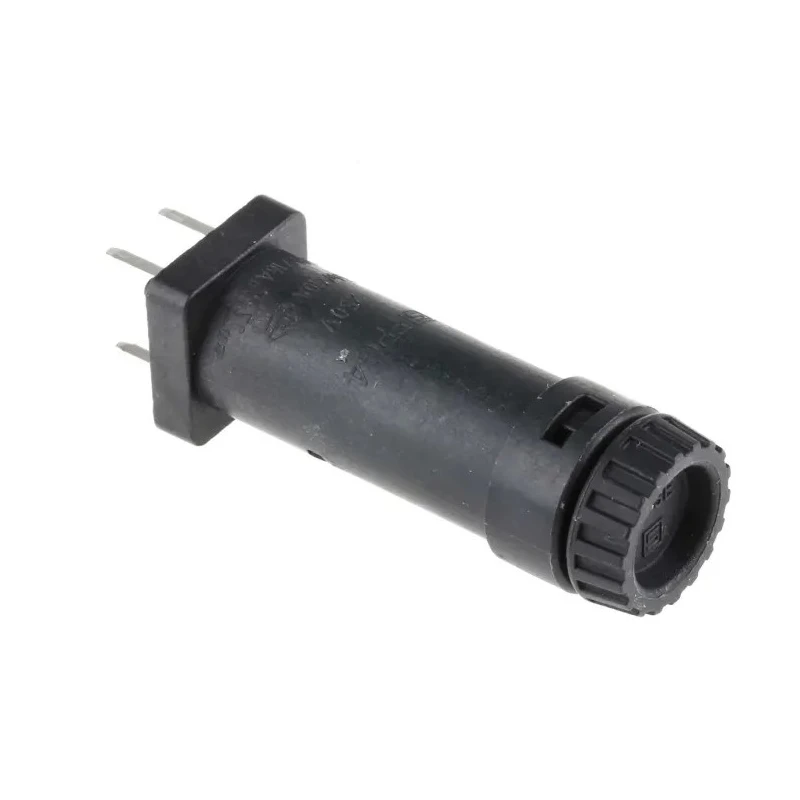

Schurter 10A PCB Mount Fuse Holder for 5 x 20 mm, 250V AC, Thermoplastic Body, Model 3101.0045

Free Delivery in India | Lowest Global Shipping Charges

Schurter 10A PCB Mount Fuse Holder for 5 x 20 mm, 250V AC, Thermoplastic Body, Model 3101.0045

Name: Schurter 10A PCB Mount Fuse Holder for 5 x 20 mm, 250V AC, Thermoplastic Body, Model 3101.0045
Brand: Schurter
SKU: 159152
Price: 2.14 USD
Availability: InStock



Category Fuse Holder Brand Schurter Condition New

Specifications

Country of Origin	Switzerland
Brand	Schurter
Body Material	Thermoplastic
Contact Material	Tin Plated Copper
Series	FPG4
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Terminal type	Solder
Compatible Fuse Size	5 x 20 mm
Cap Style	Finger Grip
Pin Spacing	5.08mm
Schurter 16A PCB Mount Fuse Holder, 1P-Pole for 5 x 20 mm, 250V acBrand	Schurter

Key Features

Suitable for industrial, household, and medical applications.
Horizontal or vertical mount formats available within the FPG series.
Durable thermoplastic body ensures high insulation and safety.
Pin spacing is precisely 5.08 mm for standard PCB mounting.
Finger grip cap style allows easy fuse replacement.
Contact material is tin-plated copper for reliable conductivity.
Operating temperature range from -40°C to 85°C supports diverse environments.
Products meet IEC 60127-6 and UL 4248-1 safety standards.

Product Description

Schurter 3101.0045 PCB Mount Fuse Holder is a robust electrical component rated for 10A and 250V AC, designed specifically for 5 x 20 mm fuses. This fuse holder features a thermoplastic body, providing excellent insulation and durability for various demanding industrial, household, and medical applications.

The fuse holder belongs to Schurter's FPG series and is configured for PCB mounting with a standardized pin spacing of 5.08 mm, ensuring easy integration into circuit boards. The device utilizes tin-plated copper contacts which are corrosion-proof, contributing to consistent electrical conductivity and long service life.

The finger grip cap style simplifies fuse replacement, enhancing operational convenience without the need for tools. It offers reliable solder-type terminals for secure electrical connections. The fuse holder can withstand a minimum operating temperature of -40°C and a maximum of 85°C, making it suitable for use across a broad temperature spectrum.

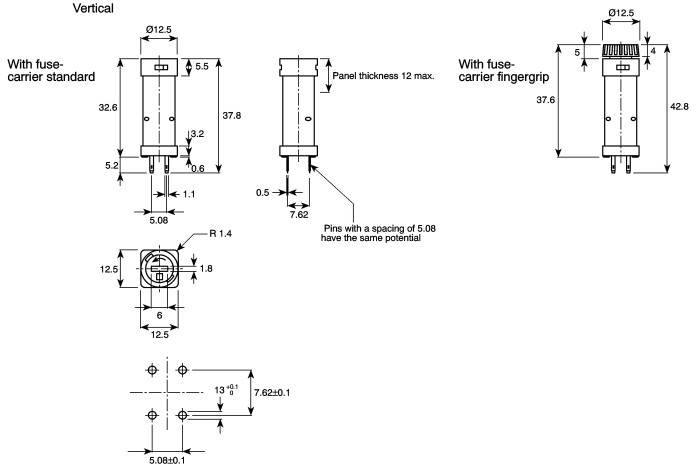

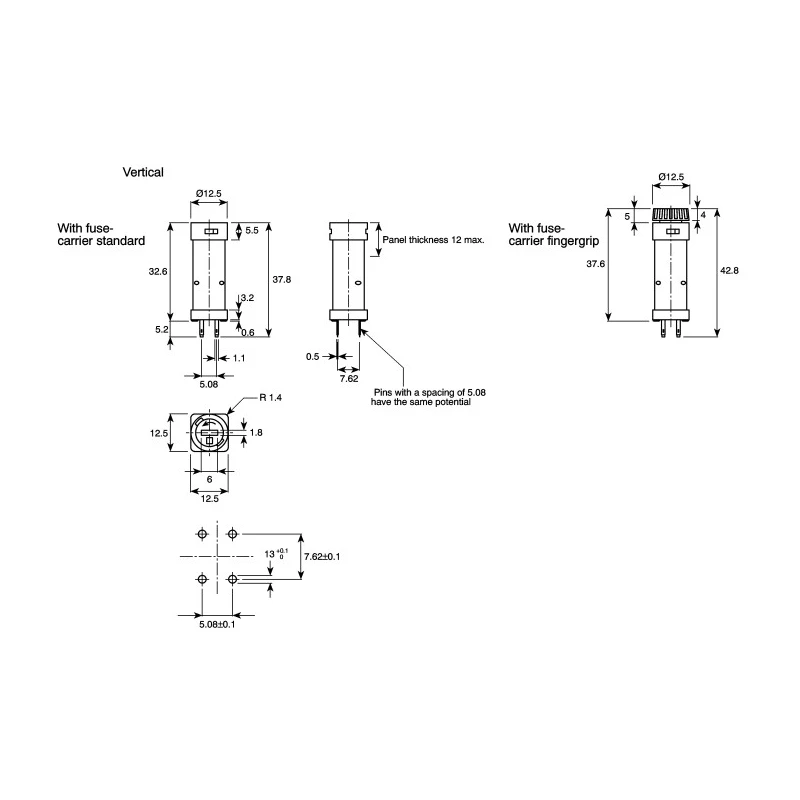

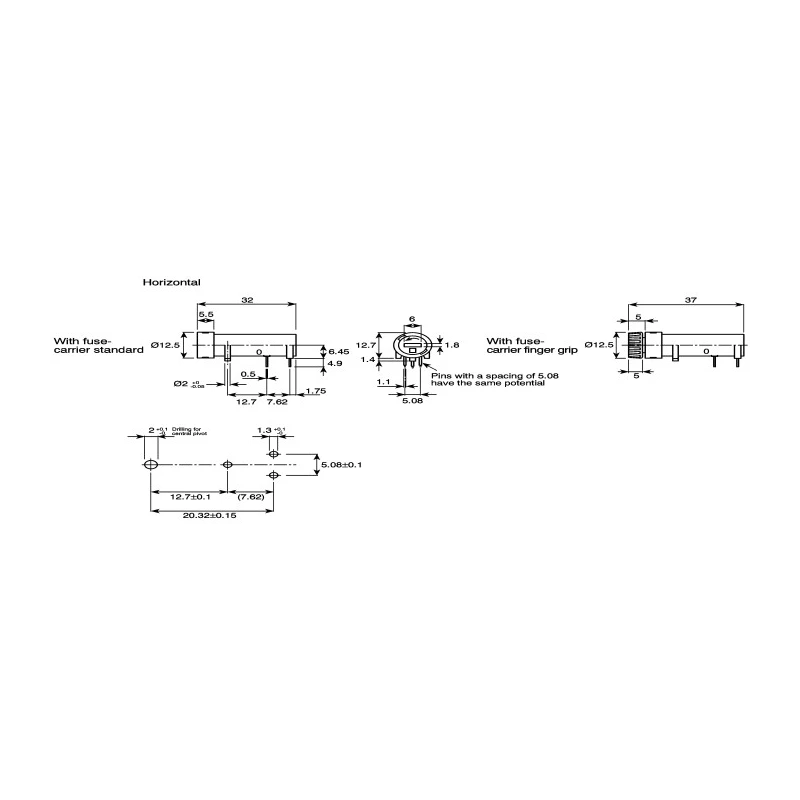

This product complies with multiple international standards including IEC 60127-6, UL 4248-1, CSA 22.2 no. 4248-1, and holds VDE certification, underscoring its safety and reliability credentials. Its sealed rear and mounting formats - either horizontal (FPG5) or vertical (FPG4) - ensure adaptability and protection in circuit designs.

Manufactured in Switzerland, the Schurter 3101.0045 fuse holder is engineered for high performance and safety, serving commercial, industrial, and laboratory electrical systems. Suitable for industrial, household, and medical environments.

Standard 5 x 20 mm fuse compatibility. Thermoplastic construction for enhanced insulation. Tin-plated copper contacts for corrosion resistance. Pin spacing of 5.08 mm for PCB mounting. Finger grip cap style for easy fuse changes.

Complies with IEC, UL, VDE, and CSA standards. Operating temperature range of -40° to 85°C. Sealed rear design for protection and durability. Swiss origin ensuring high manufacturing standards. Explore more Schurter Fuse Holders and accessories in the Electronics & Electricals section at EnvMart for reliable circuit protection solutions.
