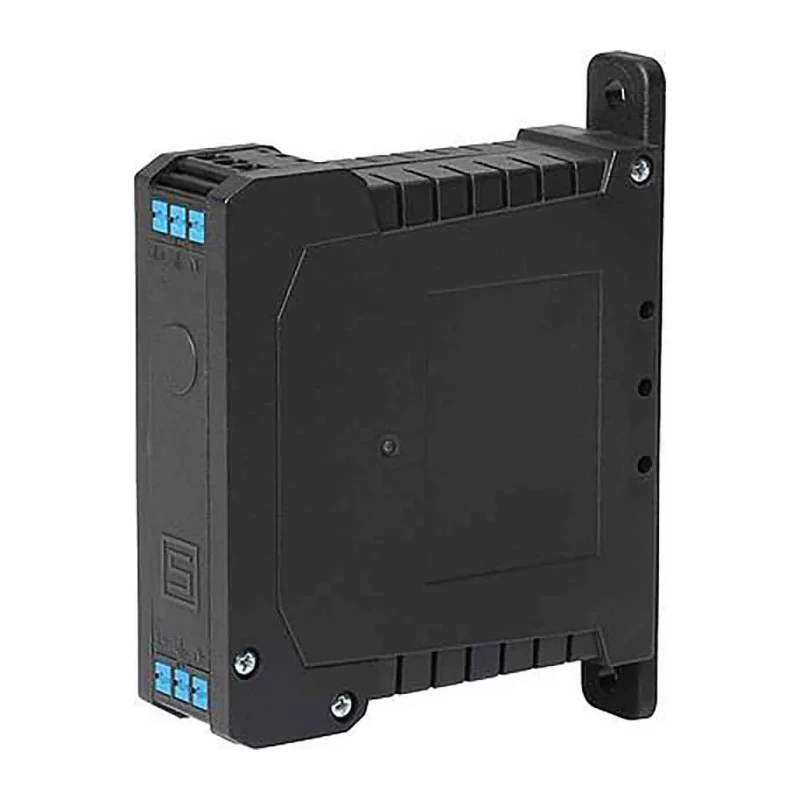

Schurter 1 Phase 3 A 250V AC/DC Chassis Mount Power Line Filter, Cage Clamp Terminal, 50Hz-60Hz, FPBB Series 3-103-715

Schurter 3-103-715 is a single-phase 3 A power line filter designed to operate with AC and DC voltages up to 250V. It features a chassis mount design with cage clamp terminals, making installation and wiring straightforward in industrial and commercial electrical systems.

This FPBB series filter provides 2-stage interference suppression for enhanced broadband attenuation, effectively protecting sensitive equipment from voltage spikes, surges, and electromagnetic interference. Its capability to function within frequency ranges of 50Hz to 60Hz allows compatibility with various power sources.

Constructed to operate reliably within a temperature range from -40°C to 100°C, this robust filter is suited for demanding environments such as electric switchboards and control cabinets. The low leakage current of 500μA and minimal power loss of 1.3W contribute to its efficient and safe performance.

The compact dimensions of 25 mm length, 85 mm height, and 82.6 mm depth enable easy integration into existing equipment layouts. The device complies with recognized standards including UL, RoHS, IEC 61140, and VDE, ensuring quality and safety compliance.

Designed primarily for industrial, commercial, and electronic equipment protection, this filter mitigates interference voltage from mains supply and minimizes disturbances caused by connected devices. The cage clamp terminal facilitates quick and secure wiring while the package of 20 pieces makes it practical for system builders and large-scale installations.

Schurter 3-103-715 chassis mount power line filter is essential for applications requiring effective EMI filtering and surge protection to prolong equipment life and maintain system reliability.

This filter supports operation at 50Hz and 60Hz frequencies. Chassis mount type with convenient cage clamp terminal ensures secure electrical connections. The unit has a compact form with dimensions 25mm (length) x 85mm (height) x 82.6mm (depth).

Withstands operating temperatures from -40°C to 100°C, suitable for harsh environments. Includes 2-stage filtering to effectively suppress broadband interference. Leakage current rating is 500μA, ensuring safe operation.

Power loss is low at 1.3W, enhancing energy efficiency. Designed for protection against mains interference and surges in electric switch and control cabinets. Product is manufactured in China under strict compliance with UL, RoHS, IEC 61140, and VDE standards.

Packaged as a set of 20 pieces for bulk industrial use. Explore our Electronics & Electricals category for a comprehensive range of Power Line Filters and related components to meet your industrial and commercial application needs.
