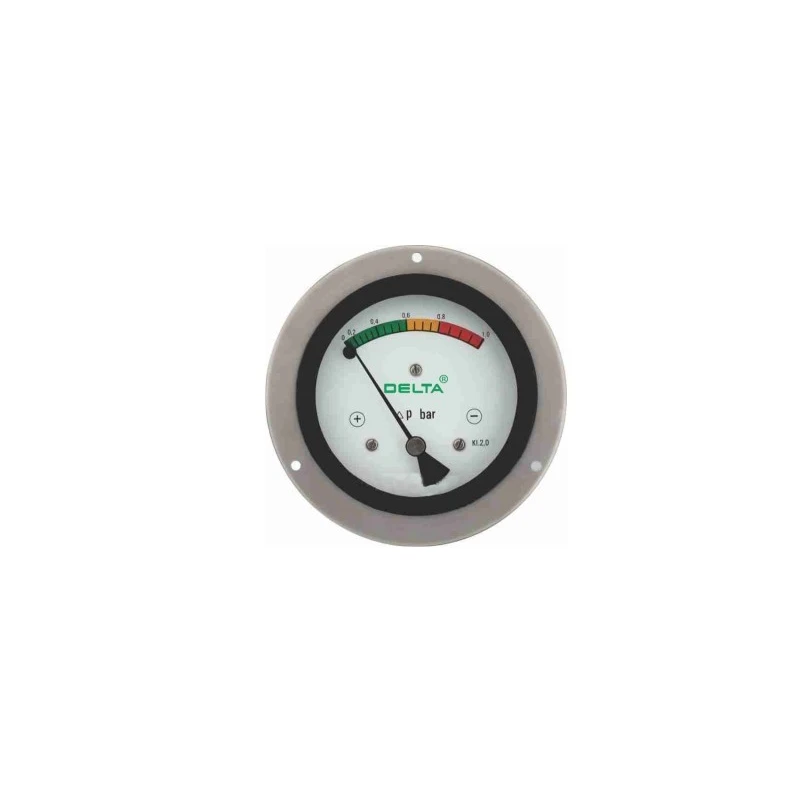

Differential Pressure Gauge Magnetic Piston Type
Specifications
| Accuracy | 2% of F S (For ascending order) |
|---|---|
| Protection Type | IP 65 |
| Connection | 1/4 NPT (F) x 2 Nos. |
| Body | AISI 316 SS |
| Ambient Temperature (ºC) | Max 65 ºC |
| Process Temperature | Max 80 C |
| Wetted Parts | Teon| Ceramic Magnet & SS Spring |
| Case | AISI 304 SS |
| Static pressure (on request) | 10 kg/cm Z up to ranges 1 bar |
| Over pressure range | Up to the Full Scale Value |
Key Features
- Simple and compact design
- High operating pressure up to 200 bar
- Over pressure safe from either side to maximum working pressure.
Product Description
Differential Pressure Gauge Magnetic Piston Type This type of differential pressure gauge is used to measure the difference between two different pressures. This type of differential pressure gauge uses a magnetic piston to measure the pressure difference. The magnetic piston is attached to a magnetically sensitive element. When the pressure changes, the position of the piston changes and this change is measured using a pointer connected to the magnetically sensitive element.
- Indicating mechanism isolated from pressure chamber
- Suitable for Air / Gas media
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can operate at a maximum pressure of 200 bar.
The body is made of AISI 316 stainless steel, while the case is constructed from AISI 304 stainless steel.
It has an accuracy rating of 2% of full scale for ascending order measurements.
It features a connection of 1/4 NPT (F) with two ports.
The maximum ambient temperature for this gauge is 65 ºC.
It is suitable for measuring air and gas media.
The maximum process temperature is 80 ºC.
It has a protection rating of IP 65.
The wetted parts consist of Teon, a ceramic magnet, and a stainless steel spring.
The gauge can handle over pressure up to the full scale value.
Yes, the indicating mechanism is isolated from the pressure chamber.
Yes, static pressure configurations can be requested, with a maximum of 10 kg/cm² up to ranges of 1 bar.
