JST 10 Way Polybutylene Terephthalate White Crimp Terminal Housing SHR-10V-S-B

Free Delivery in India | Lowest Global Shipping Charges

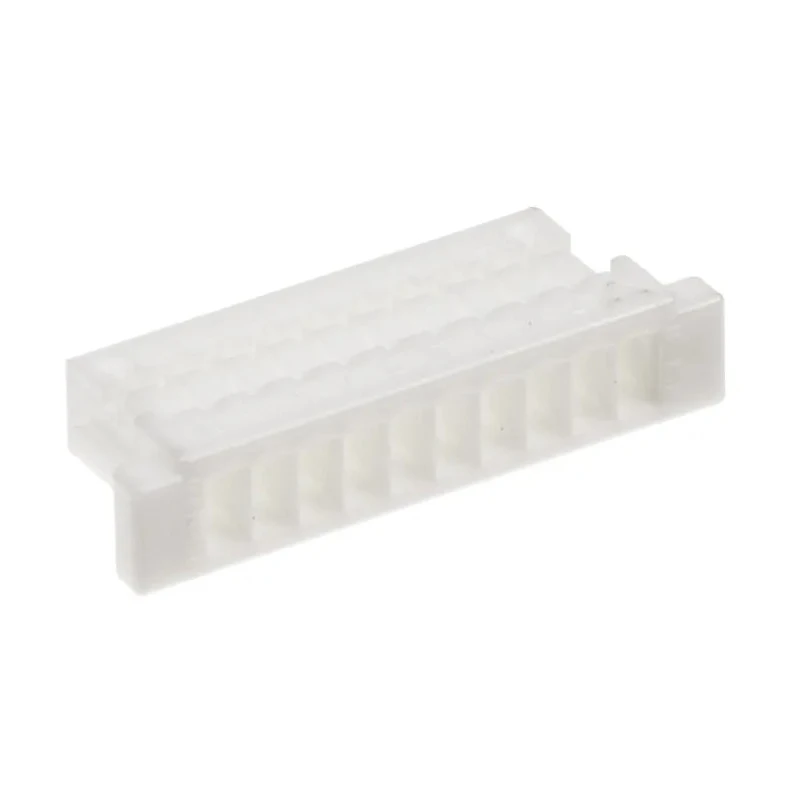

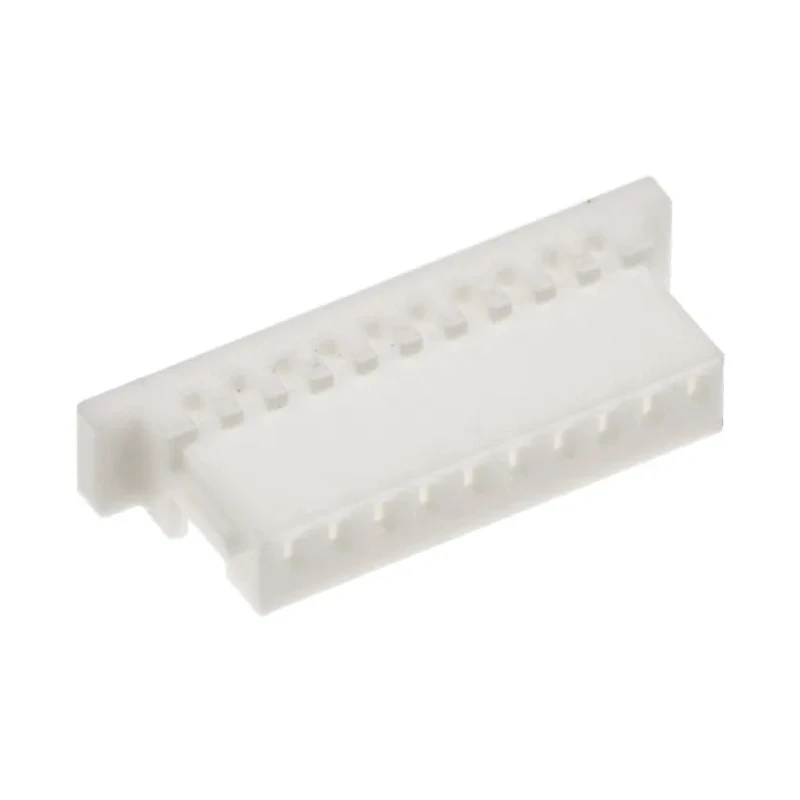

JST 10 Way Polybutylene Terephthalate White Crimp Terminal Housing SHR-10V-S-B



Category Crimp Terminal Housing Brand JST Condition New

Specifications

Country of Origin	Malaysia
Brand	JST
Colour	White
Body Material	Polybutylene Terephthalate
Length	13mm
Model	SHR-10V-S-B
Connector Type	Receptacle
Series	SH
Number of Contacts	10
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	32AWG

Key Features

Connector type is receptacle suitable for AWG 28 to AWG 32 wire sizes.
Constructed from durable Polybutylene Terephthalate material for reliable insulation and mechanical strength.
Compact 13mm length housing supports 10 electrical contacts.
Compatible with JST SH series connectors, providing low mating force and low profile design.
Polarized housing design ensures proper mating orientation and connection integrity.
Suitable for high-density electronic equipment with limited board space.
Manufactured in Malaysia adhering to stringent quality standards.

Product Description

The JST SHR-10V-S-B is a 10-way Crimp Terminal Housing made from white Polybutylene Terephthalate (PBT), designed for advanced wire-to-board electrical interconnections. With a length of 13mm and a compact form factor, it offers a reliable receptacle connection intended for AWG 28 to AWG 32 wire sizes, making it ideal for precision electronics requiring robust and secure connections.

This housing belongs to the JST SH series, widely recognized for its low profile and low mating force characteristics, saving space and effort during assembly. Its polarized design prevents incorrect mating, thereby improving system reliability and reducing potential faults.

Constructed from durable PBT material, the terminal housing ensures excellent insulation and mechanical strength under typical operating conditions. It is compatible with pre-terminated crimped leads, facilitating quick installation and system integration in diverse electronic manufacturing scenarios.

Ideal usage spans industrial electronics, telecommunications, automotive electronics, and consumer devices, where compact and dependable wire-to-board connections are crucial. Manufactured in Malaysia, this product meets high manufacturing quality and reliability demands to perform consistently in demanding applications.

Connector type receptacle for AWG 28 to AWG 32 wires. Polybutylene Terephthalate body material offering durability. Housing length of 13mm supporting 10 contacts. JST SH series compatible for standardized connectivity. Polarized design to prevent misconnection.

Low mating force for easier assembly. Compact form factor suitable for limited board spaces.
